PowerPanel+

A range of extra thick, extra long panels for commercial and industrial construction projects.
power-panel
selected
Overview
Performance and benefits
Applications
Technical information
Product accessories
Downloads

Hebel Manufacturing Plant

Add icon

Hebel Manufacturing Plant

The Hebel manufacturing plant was constructed… using Hebel! PowerPanel+ is the ideal solution for commercial builds.

Hebel PowerPanel+ is a range of extra wide Autoclaved Aerated Concrete (AAC) panels between 100 and 300mm thick.

PowerPanel+ is used in low-rise industrial, commercial developments for a range of applications, including external walls, internal walls & fire tunnels. The thick AAC panels have a high fire rating and excellent thermal resistance properties as well as being an effective sound transmission barrier.

PowerPanel+ can be made-to-length resulting in less wastage. This system is the ideal choice for your next commercial or industrial project.

Performance and benefits

icon
Proven & compliant

Backed by CSR, non-combustible, compliant systems that are easy to inspect and approve.

icon
Strong & solid

Thick panels with caged steel reinforcment with an anti-corrosion coating.

icon
Quality & speed

Lightweight and fast to build with compared with traditional precast concrete.

icon
Sustainable

Made from readily available raw materials, available in custom sizes, reducing build time and waste on site.

Technical information

The tongue and groove PowerPanel+ panels have a double layer of steel mesh known as “caged” steel reinforcing specifically designed for large panel sizes. Even the large panels are comparatively lightweight compared to precast concrete or concrete formed in situ.

The PowerPanel+ system consists of Hebel panels installed vertically or horizontally to steel or concrete structural framing as a non-load bearing wall. This provides a cost-effective solution, with lightweight panels allowing reduced structural components and smaller lifting equipment compared to concrete.

PowerPanel-plus
Product
Code
Web
Description
Width
(mm)
Length
(mm)
Thickness
(mm)
Mesh DesignWeight
Per Pack (kg)
Units Per Pack
21994PowerPanel+ T&G 2700mm4502700100Caged78110
26481PowerPanel+ T&G 3000mm4503000100Caged86710
81464PowerPanel+ T&G 4500mm6004500100Caged173410
81465PowerPanel+ T&G 4500mm6004500125Caged162610
60287PowerPanel+ T&G 5990mm6005990125Caged216410
81466PowerPanel+ T&G 4500mm6004500150Caged162610
21992PowerPanel+ T&G 5990mm6005990150Caged216410
MTO 03Made to Order PowerPanel+600Up to 4000100Caged - -
MTO 04Made to Order PowerPanel+600Up to 6000125Caged - -
MTO 05Made to Order PowerPanel+600Up to 6000150Caged - -
MTO 06Made to Order PowerPanel+600Up to 6000175Caged - -
MTO 07Made to Order PowerPanel+600Up to 6000200Caged - -
MTO 08Made to Order PowerPanel+600Up to 6000250Caged - -
MTO 25Made to Order PowerPanel+600Up to 6000300Caged - -

Product accessories

Adhesives, Sealants & Coatings

Hebel Adhesive

Product name

Hebel Adhesive

SKU

21933

Use

All systems

Selling Unit

20kg Bag

Hebel Patch

Product name

Hebel Patch

SKU

21949

Use

All systems

Selling Unit

10kg Bag

Hebel Base Sealer

Product name

Hebel Base Sealer

SKU

111161

Use

Waterproofing for residential

Selling Unit

5L Pail

Hebel Anti – Corrosion Paint

Product name

Hebel Anti – Corrosion Paint

SKU

25594

Use

Used to coat exposed reo

Selling Unit

500mL Container

FireSeal Damperstrips  750mm x 225mm x 13mm

Product name

FireSeal Damperstrips 750mm x 225mm x 13mm

SKU

182233

Use

Horizontal control joint

Selling Unit

Each

FireSeal Party Wall Sealer  4000mm x 300mm x 50mm

Product name

FireSeal Party Wall Sealer 4000mm x 300mm x 50mm

SKU

193379

Use

Sealer used between panel to roof / wall cavities

Selling Unit

Pack of 2

CSR FireSeal – Fire & Acoustic Sealant

Product name

CSR FireSeal – Fire & Acoustic Sealant

SKU

122116

Use

All systems

Selling Unit

Box of 12

Brackets, Angles & Trim

Tension Tie Stainless Steel 125mm Panel

Product name

Tension Tie Stainless Steel 125mm Panel

SKU

21873

Use

Install 125mm panel to frame

Selling Unit

Each

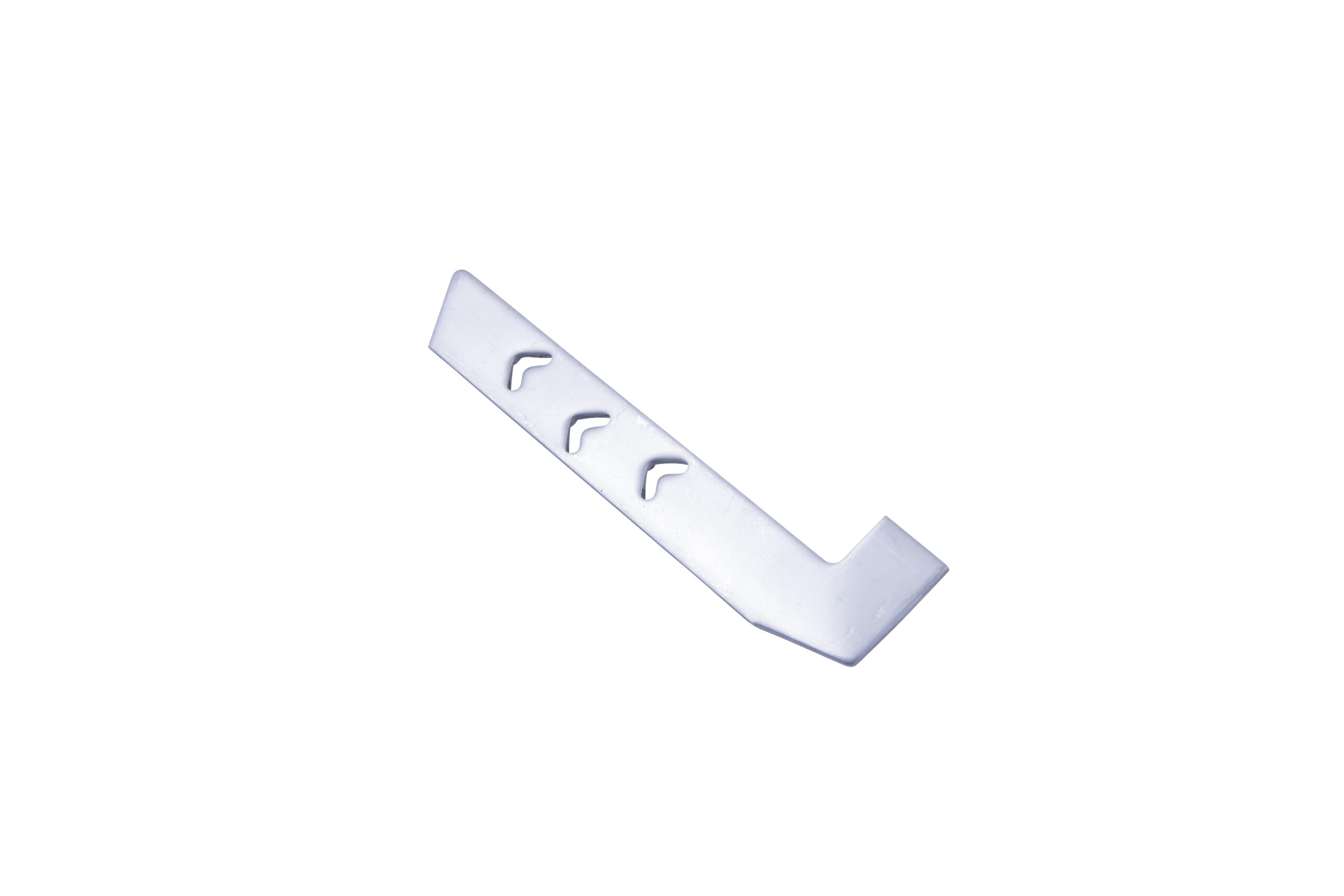

Tension Tie Stainless Steel 150mm Panel

Product name

Tension Tie Stainless Steel 150mm Panel

SKU

21874

Use

Install 150mm panel to frame

Selling Unit

Each

V-Nails

Product name

V-Nails

SKU

21929

Use

Nail tension tie to panel

Selling Unit

Each

Hand Tools

Levelling Plane

Product name

Levelling Plane

SKU

21892

Use

Levelling Hebel

Selling Unit

Each

Sanding Float

Product name

Sanding Float

SKU

21912

Use

All systems

Selling Unit

Each

PowerPanel Lifters 16mm

Product name

PowerPanel Lifters 16mm

SKU

21901

Use

Handling system for PowerPanel

Selling Unit

Pack of 2

Installer PowerPanel Trolley

Product name

Installer PowerPanel Trolley

SKU

130324

Use

Handling system for PowerPanel

Selling Unit

Each

2 Wheel Panel Mover

Product name

2 Wheel Panel Mover

SKU

162645

Use

Handling system for PowerPanel

Selling Unit

Each

PowerPanel Trolley 2.4-2.7 Panels

Product name

PowerPanel Trolley 2.4-2.7 Panels

SKU

21903

Use

Handling system for PowerPanel

Selling Unit

Each

PowerPanel Trolley 2.9-3.35 Panels

Product name

PowerPanel Trolley 2.9-3.35 Panels

SKU

21904

Use

Handling system for PowerPanel

Selling Unit

Each

Panel Scissor Lifter 75mm

Product name

Panel Scissor Lifter 75mm

SKU

107687

Use

Panel lifter

Selling Unit

Each

Panel Separator Kit

Product name

Panel Separator Kit

SKU

119426

Use

All systems

Selling Unit

Each

Top Hats & Battens

Perforated Top Hat 24mm x 4.8m x 0.42 BMT

Product name

Perforated Top Hat 24mm x 4.8m x 0.42 BMT

SKU

21909

Use

Attaching PowerPanel to frame

Selling Unit

Each

Perforated Top Hat  35mm x4.8m x0.55 BMT

Product name

Perforated Top Hat 35mm x4.8m x0.55 BMT

SKU

105536

Use

Attaching PowerPanel to frame

Selling Unit

Each

Perforated Top Hat 45mm x4.8m x0.42 BMT

Product name

Perforated Top Hat 45mm x4.8m x0.42 BMT

SKU

168890

Use

Attaching PowerPanel to frame

Selling Unit

Each

Downloads

All Downloads
Design and Installation Guides
Technical Manuals
Brochures
Safety Guides
Design and Installation Guides

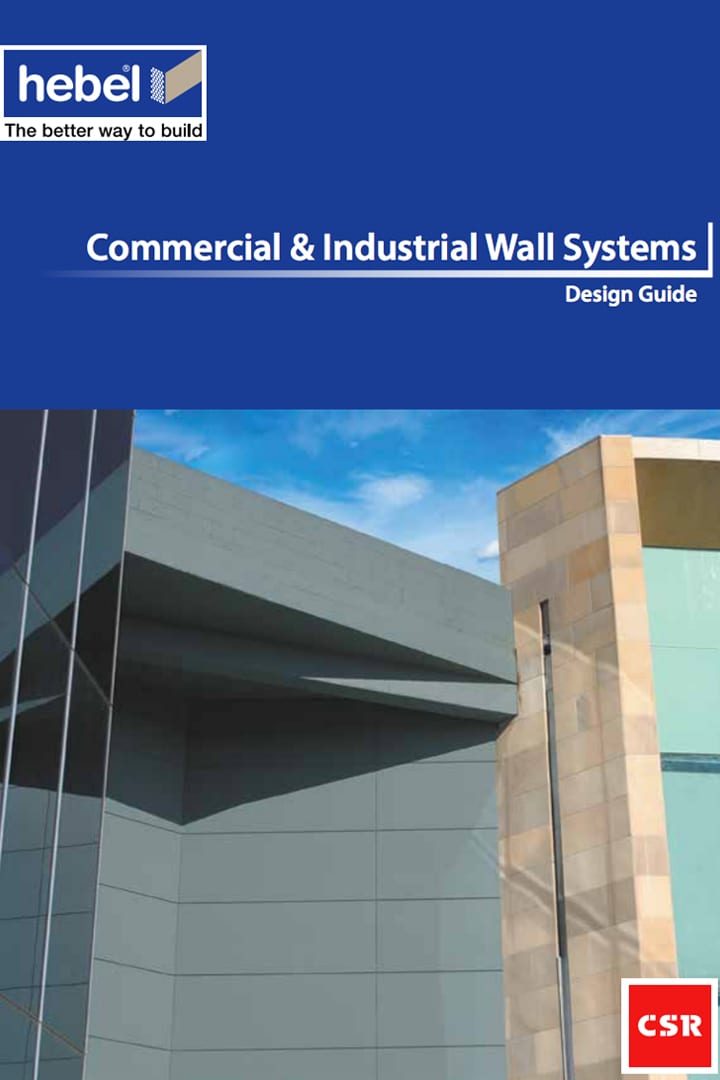

Commercial and Industrial Wall Systems – Design Guide
Design and Installation Guides

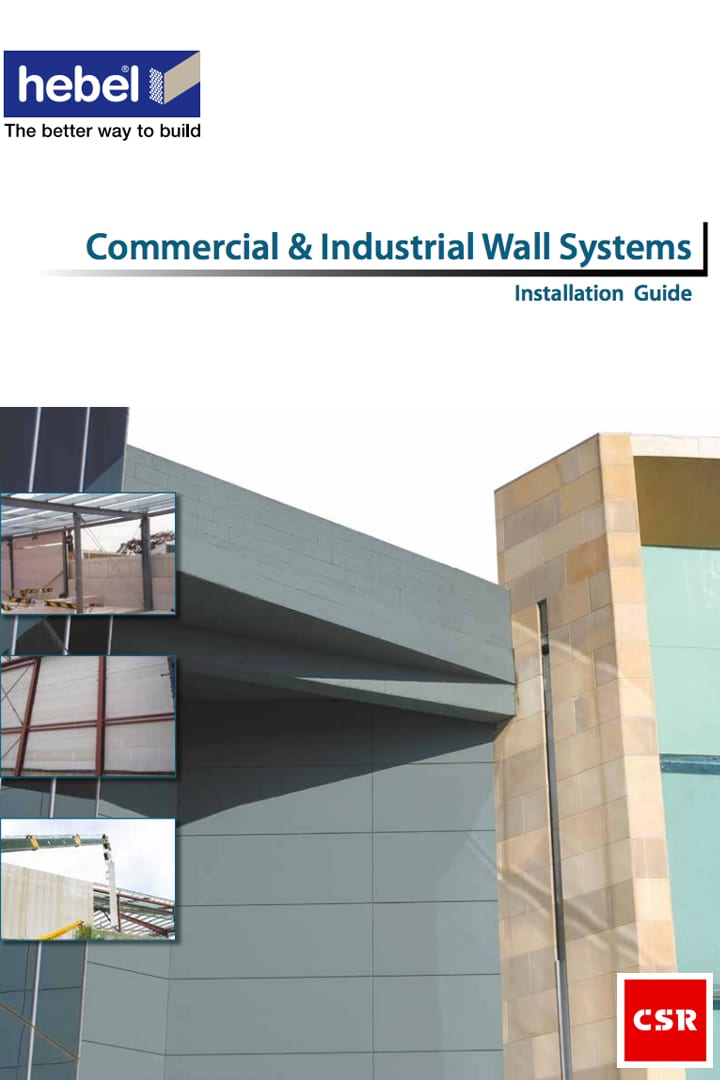

Commercial and Industrial Wall Systems – Installation Guide
Technical Manuals
Hebel Tech Man – Pt1 Products
Brochures
Hebel Product Guide
Brochures
Hebel systems are simple and easy to approve
Brochures
The Benefits of Autoclaved Aerated Concrete in Modern Construction – Whitepaper
Safety Guides
Hebel Safety Guide – Cutting & Cleaning of Hebel AAC
Safety Guides
Hebel Safety Guide – Safe lifting of Hebel AAC
Safety Guides
Hebel Safety Guide – Safe stacking of Hebel Panel
Safety Guides
Hebel Safety Guide – Silica fact sheet
