PowerPanel50

A thinner panel for rendered exterior cladding, dual zero boundary walls and intertenancy walls for houses and low rise multi residential buildings.
power-panel
selected
selected
selected
Overview
Performance and benefits
Applications
Technical information
Product accessories
Downloads

Sky Triong

Add icon

Sky Triong

Hebel was chosen for this home for its minimalist design, noise reduction and reliability properties.

Hebel PowerPanel50 is just 50mm thick, a revolution in Autoclaved Aerated Cement (AAC) panel manufacturing. It sets a new standard in construction efficiency for houses and low rise multi residential buildings, like townhouses and duplexes.

The 50mm thick AAC panels are used as exterior cladding with a render finish, or an internal wall component in intertenancy walls (also known as party walls) and dual zero boundary walls. Hebel PowerPanel50 was developed, tested and is manufactured in Australia, and warranted by CSR.

Performance and benefits

icon
Design versatility

Achieve the home style you want with a wide range and aesthetic coating and colour options.

icon
Strong & solid

50mm panels are reinforced steel with an anti-corrosion coating.

icon
Energy efficient

Hebel panels thermal properties help keep your home cool in summer and warm in winter.

icon
Proven & compliant

Backed by CSR, non-combustible and meet NCC requirements.

Technical information

The strong and solid panels contain steel reinforcing mesh with an anti-corrosion coating to maximise durability. They’re available in a range of common wall sizes up to 3000mm which helps reduce cutting and waste. PowerPanel50 is non-combustible and suitable for bushfire zones up to BAL (FZ). They easily achieve fire ratings. External Wall systems also offer good thermal and acoustic performance. Using PowerPanel50, Hebel intertenancy wall and dual zero boundary wall systems require minimal components. This simplifies ordering, logistics, workflow and quality control. They do not require fire-rated plasterboard between floor levels or in roof spaces. They do not require a multitude of fixings and different liners. The simplicity saves time and speeds up construction.

PowerPanel50
Product
Code
Web
Description
Width
(mm)
Length
(mm)
Thickness
(mm)
Mesh DesignWeight
Per Pack (kg)
Units Per Pack
99939PowerPanel50 2400mm600240050Single80415
133805PowerPanel50 2550mm600255050Single85415
162758PowerPanel50 2700mm600270050Single90515
162756PowerPanel50 2850mm600285050Single95515
162760PowerPanel50 3000mm600300050Single100515

Product accessories

Adhesives, Sealants & Coatings

Hebel Adhesive

Product name

Hebel Adhesive

SKU

21933

Use

All systems

Selling Unit

20kg Bag

Hebel Patch

Product name

Hebel Patch

SKU

21949

Use

All systems

Selling Unit

10kg Bag

Hebel Base Sealer

Product name

Hebel Base Sealer

SKU

111161

Use

Waterproofing for residential

Selling Unit

5L Pail

Hebel Anti – Corrosion Paint

Product name

Hebel Anti – Corrosion Paint

SKU

25594

Use

Used to coat exposed reo

Selling Unit

500mL Container

FireSeal Damperstrips  750mm x 225mm x 13mm

Product name

FireSeal Damperstrips 750mm x 225mm x 13mm

SKU

182233

Use

Horizontal control joint

Selling Unit

Each

FireSeal Party Wall Sealer  4000mm x 300mm x 50mm

Product name

FireSeal Party Wall Sealer 4000mm x 300mm x 50mm

SKU

193379

Use

Sealer used between panel to roof / wall cavities

Selling Unit

Pack of 2

CSR FireSeal – Fire & Acoustic Sealant

Product name

CSR FireSeal – Fire & Acoustic Sealant

SKU

122116

Use

All systems

Selling Unit

Box of 12

Brackets, Angles & Trim

Deflection Head 51mm x 3m x 0.7mm BMT

Product name

Deflection Head 51mm x 3m x 0.7mm BMT

SKU

176867

Use

50mm Party Wall Base - residential Connection

Selling Unit

Each

Aluminium Party Wall Bracket

Product name

Aluminium Party Wall Bracket

SKU

40900

Use

Attach PowerPanelXL to internal frame

Selling Unit

Each

Hebel Direct Fixing Clip

Product name

Hebel Direct Fixing Clip

SKU

168120

Use

Attaching 24mm or 35mm top hats to stud frame Exclusive to Hebel Dual Zero Boundary Wall clips

Selling Unit

Box of 200

Rondo Clip 314

Product name

Rondo Clip 314

SKU

193703

Use

For attaching RONDO 301 16mm batten to structural stud frame - Dual Zero Boundary Wall

Selling Unit

Box of 100

Hand Tools

Levelling Plane

Product name

Levelling Plane

SKU

21892

Use

Levelling Hebel

Selling Unit

Each

Sanding Float

Product name

Sanding Float

SKU

21912

Use

All systems

Selling Unit

Each

PowerPanel Lifters 16mm

Product name

PowerPanel Lifters 16mm

SKU

21901

Use

Handling system for PowerPanel

Selling Unit

Pack of 2

Installer PowerPanel Trolley

Product name

Installer PowerPanel Trolley

SKU

130324

Use

Handling system for PowerPanel

Selling Unit

Each

2 Wheel Panel Mover

Product name

2 Wheel Panel Mover

SKU

162645

Use

Handling system for PowerPanel

Selling Unit

Each

PowerPanel Trolley 2.4-2.7 Panels

Product name

PowerPanel Trolley 2.4-2.7 Panels

SKU

21903

Use

Handling system for PowerPanel

Selling Unit

Each

PowerPanel Trolley 2.9-3.35 Panels

Product name

PowerPanel Trolley 2.9-3.35 Panels

SKU

21904

Use

Handling system for PowerPanel

Selling Unit

Each

Panel Separator Kit

Product name

Panel Separator Kit

SKU

119426

Use

All systems

Selling Unit

Each

Screws

Screw 10-16 x 16 Hex Head

Product name

Screw 10-16 x 16 Hex Head

SKU

21906

Use

Fix top hat to steel stud frame

Selling Unit

Box of 1000

Screw 12-11 x 35 Hex Head Type17

Product name

Screw 12-11 x 35 Hex Head Type17

SKU

106882

Use

Fix top hat to timber frame

Selling Unit

Box of 500

Screw 14-10 x 65 Hex Head

Product name

Screw 14-10 x 65 Hex Head

SKU

21900

Use

Internal fix of PowerPanel to top hat

Selling Unit

Box of 500

Screw 14-10 x 65mm Bugle

Product name

Screw 14-10 x 65mm Bugle

SKU

163902

Use

Fix PowerPanel to top hat

Selling Unit

Box of 500

Top Hats & Battens

Perforated Top Hat 24mm x 4.8m x 0.42 BMT

Product name

Perforated Top Hat 24mm x 4.8m x 0.42 BMT

SKU

21909

Use

Attaching PowerPanel to frame

Selling Unit

Each

Perforated Top Hat  35mm x4.8m x0.55 BMT

Product name

Perforated Top Hat 35mm x4.8m x0.55 BMT

SKU

105536

Use

Attaching PowerPanel to frame

Selling Unit

Each

301 Batten 16mm x 4.8m x 0.42mm BMT

Product name

301 Batten 16mm x 4.8m x 0.42mm BMT

SKU

192101

Use

Fixing PowerPanel50 to the structural support framing using the RONDO 314 Direct Fix Clip

Selling Unit

Each

Downloads

All Downloads
CodeMark Certificates
Brochures
Trade Flyers and DIY
Safety Guides
Construction Details
Technical Manuals
CAD Files
Design and Installation Guides
CodeMark Certificates

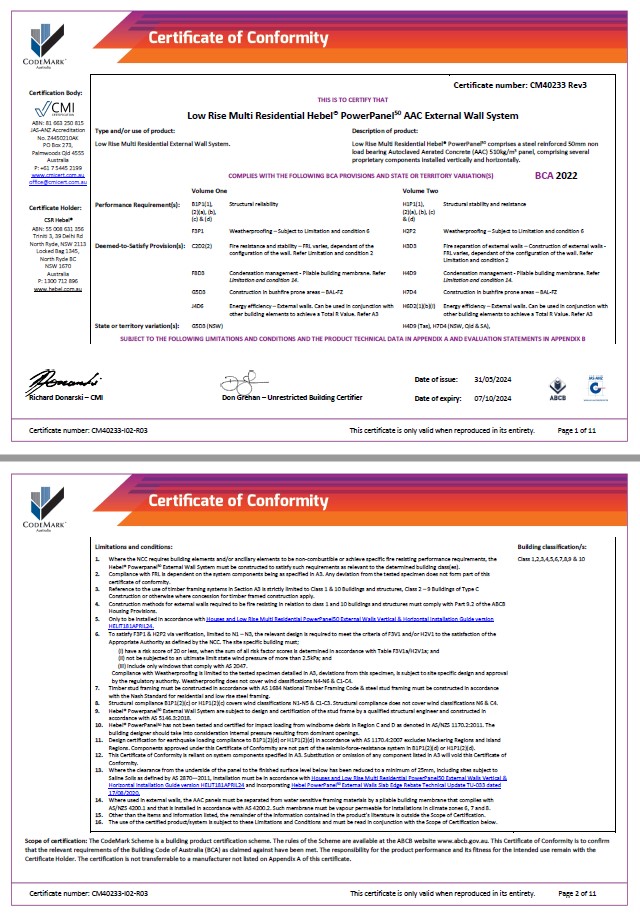

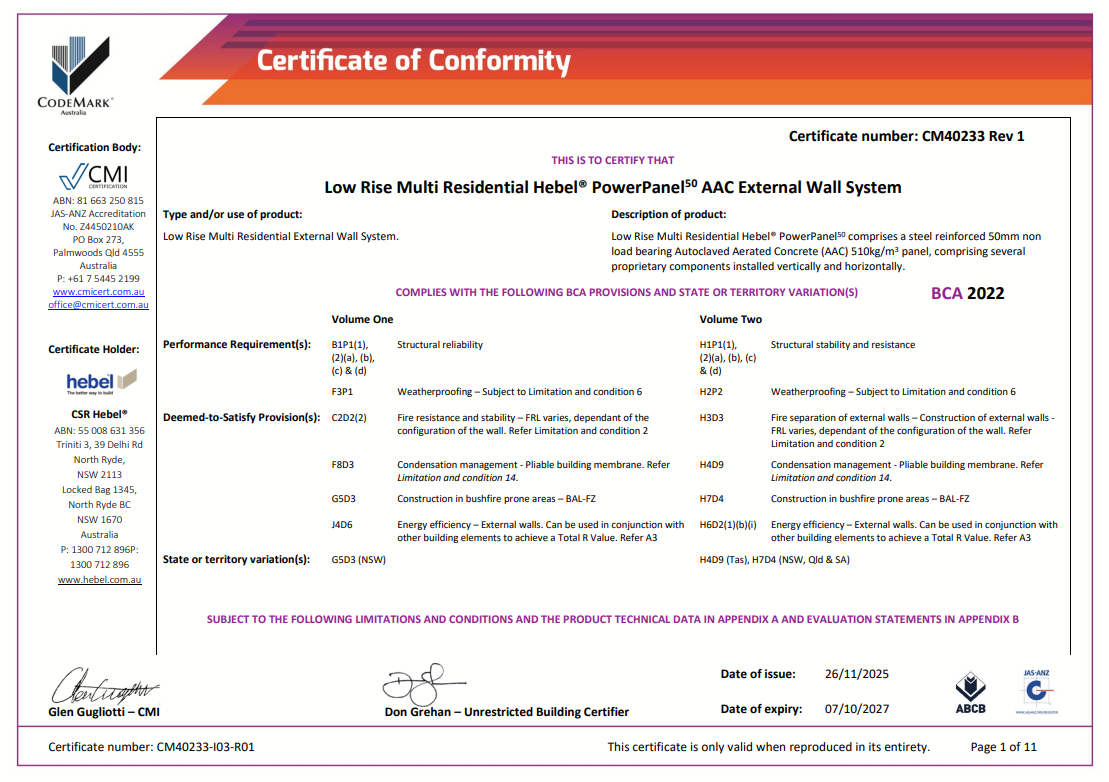

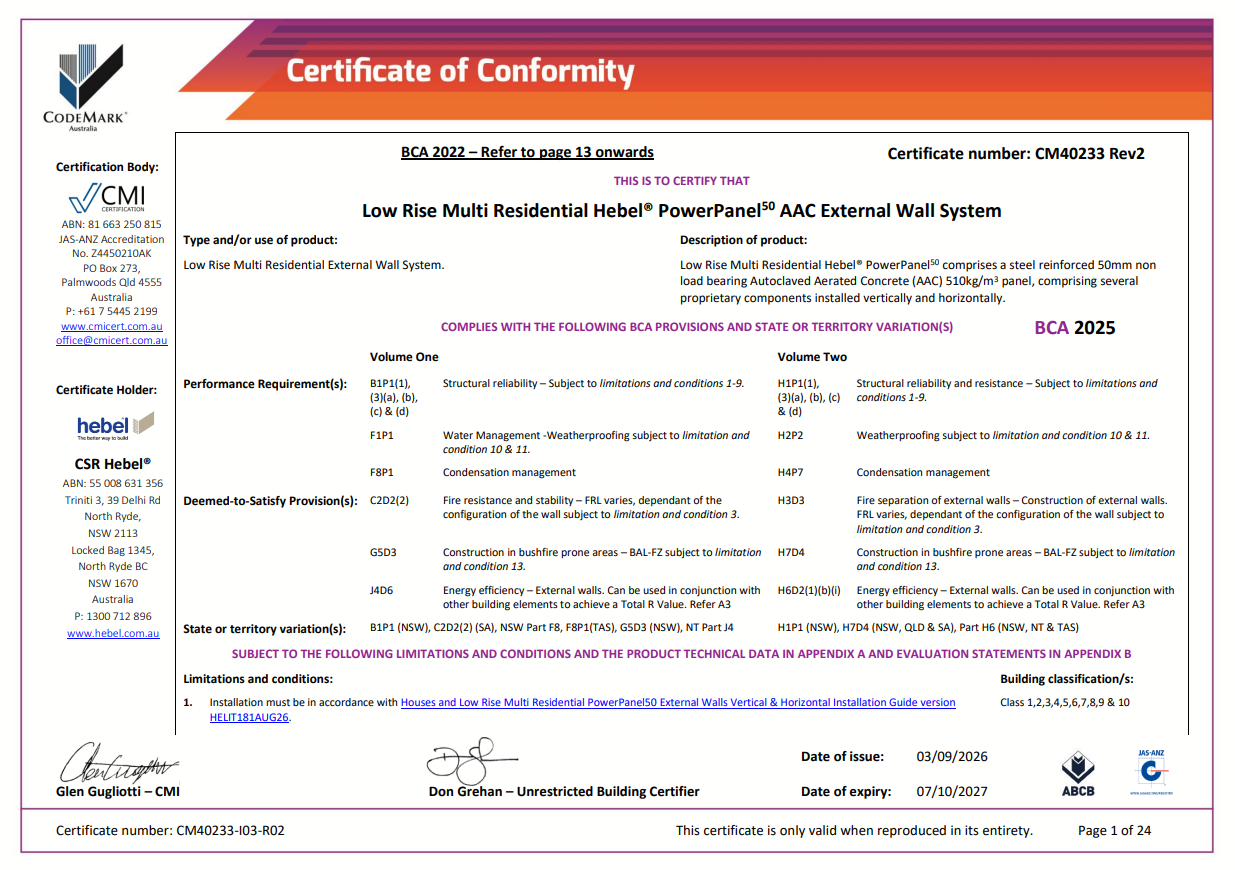

PowerPanel50 (External Walls) CodeMark
Brochures
Fixing to Hebel Guide
Trade Flyers and DIY
Common Fixings to Hebel Table
Safety Guides
Hebel Safety Guide – Silica fact sheet
Safety Guides
Hebel Safety Guide – Safe stacking of Hebel Panel
Safety Guides
Hebel Safety Guide – Safe lifting of Hebel AAC
Safety Guides
Hebel Safety Guide – Cutting & Cleaning of Hebel AAC
Brochures
The Benefits of Autoclaved Aerated Concrete in Modern Construction – Whitepaper
Construction Details
PowerPanel50mm Hebel Horizontal Facade Public (Rev E) Construction Detail
CodeMark Certificates

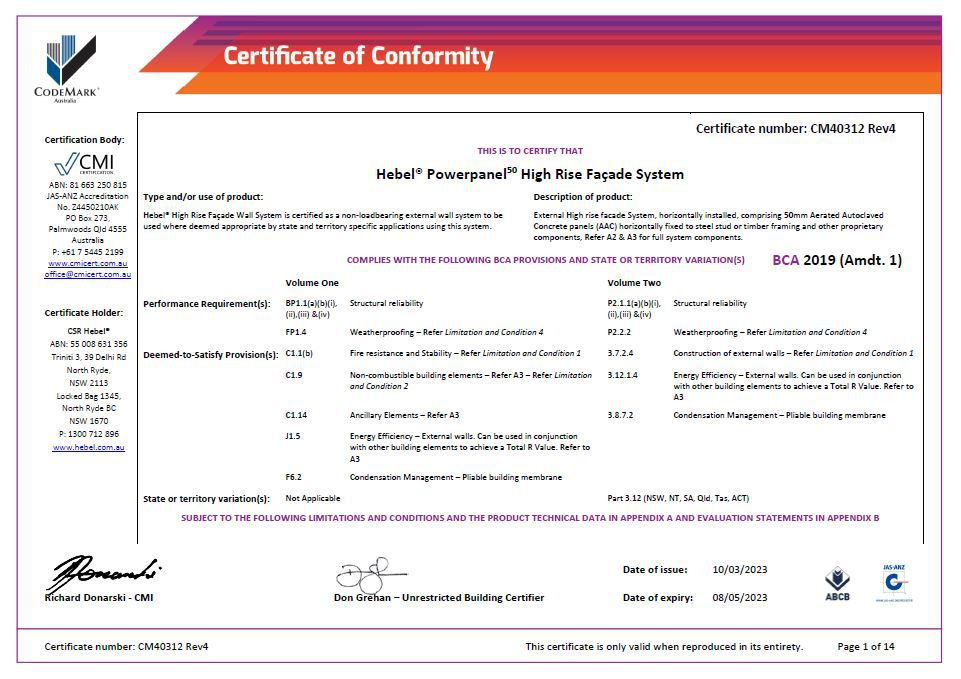

PowerPanel50mm (High-Rise Facade) CodeMark
CodeMark Certificates

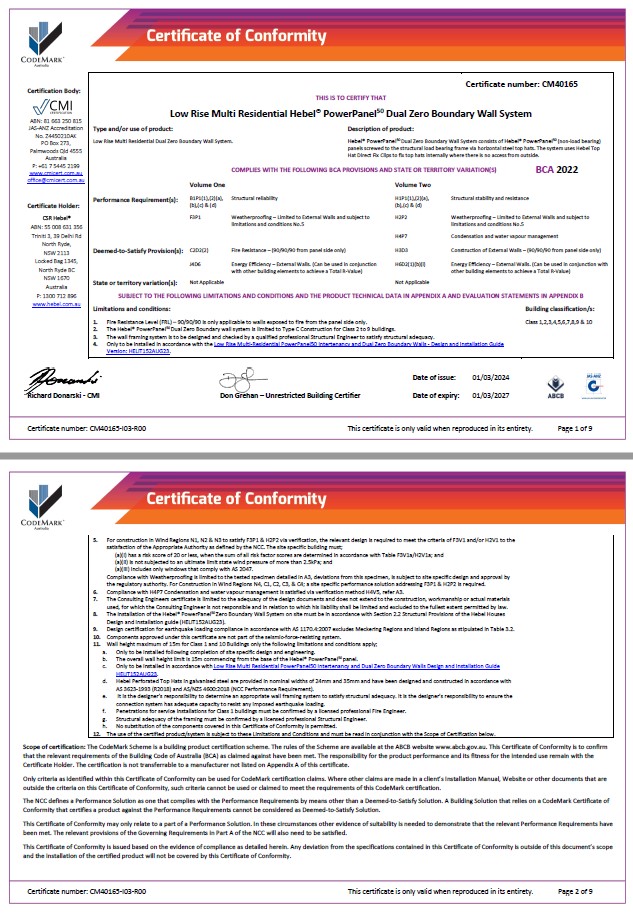

PowerPanel50 (Dual Zero Boundary Walls) CodeMark
CodeMark Certificates

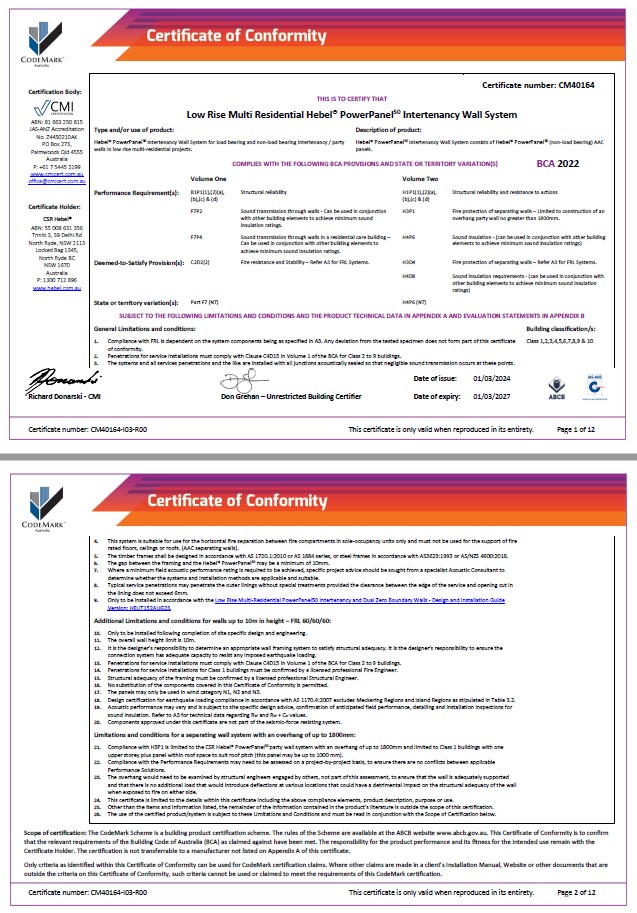

PowerPanel50 (Intertenancy Walls) CodeMark
Technical Manuals
Hebel Tech Man – Pt1 Products
Brochures
Hebel systems are simple and easy to approve
Trade Flyers and DIY

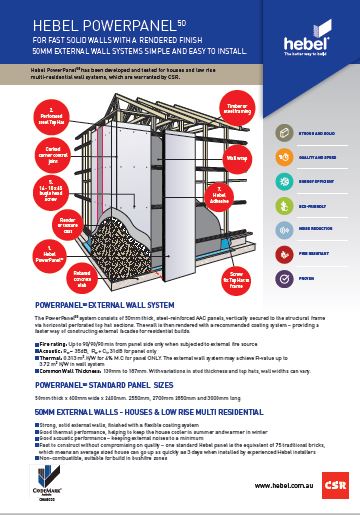

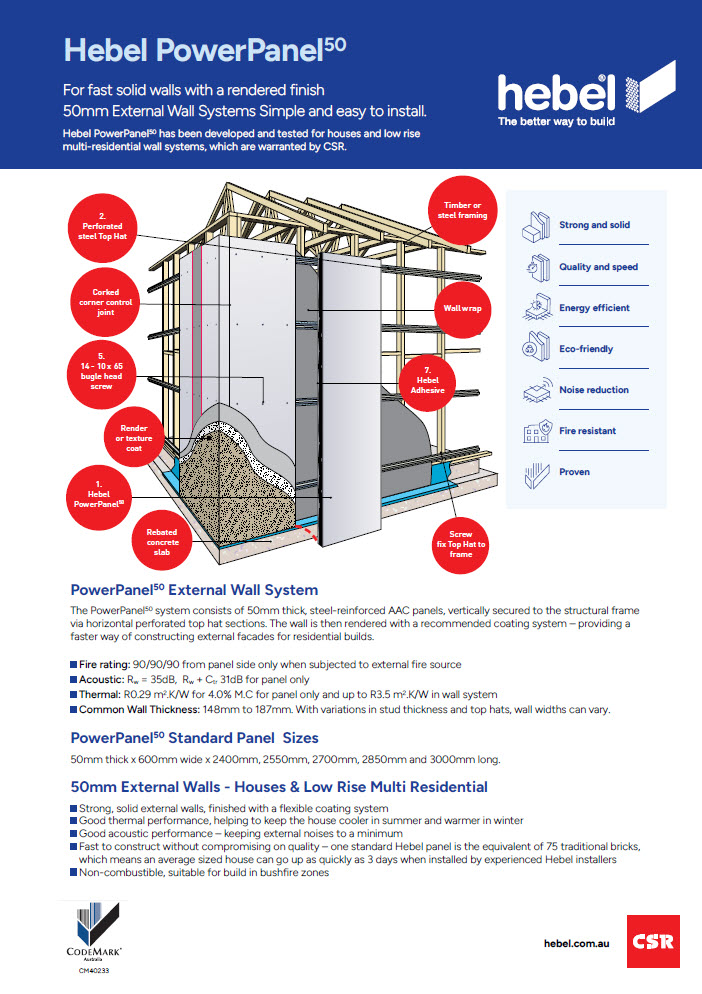

PowerPanel50 External Walls Trade Flyer
CAD Files
Houses and Low Rise Multi-Residential PowerPanel50 External Walls System CAD details
Design and Installation Guides

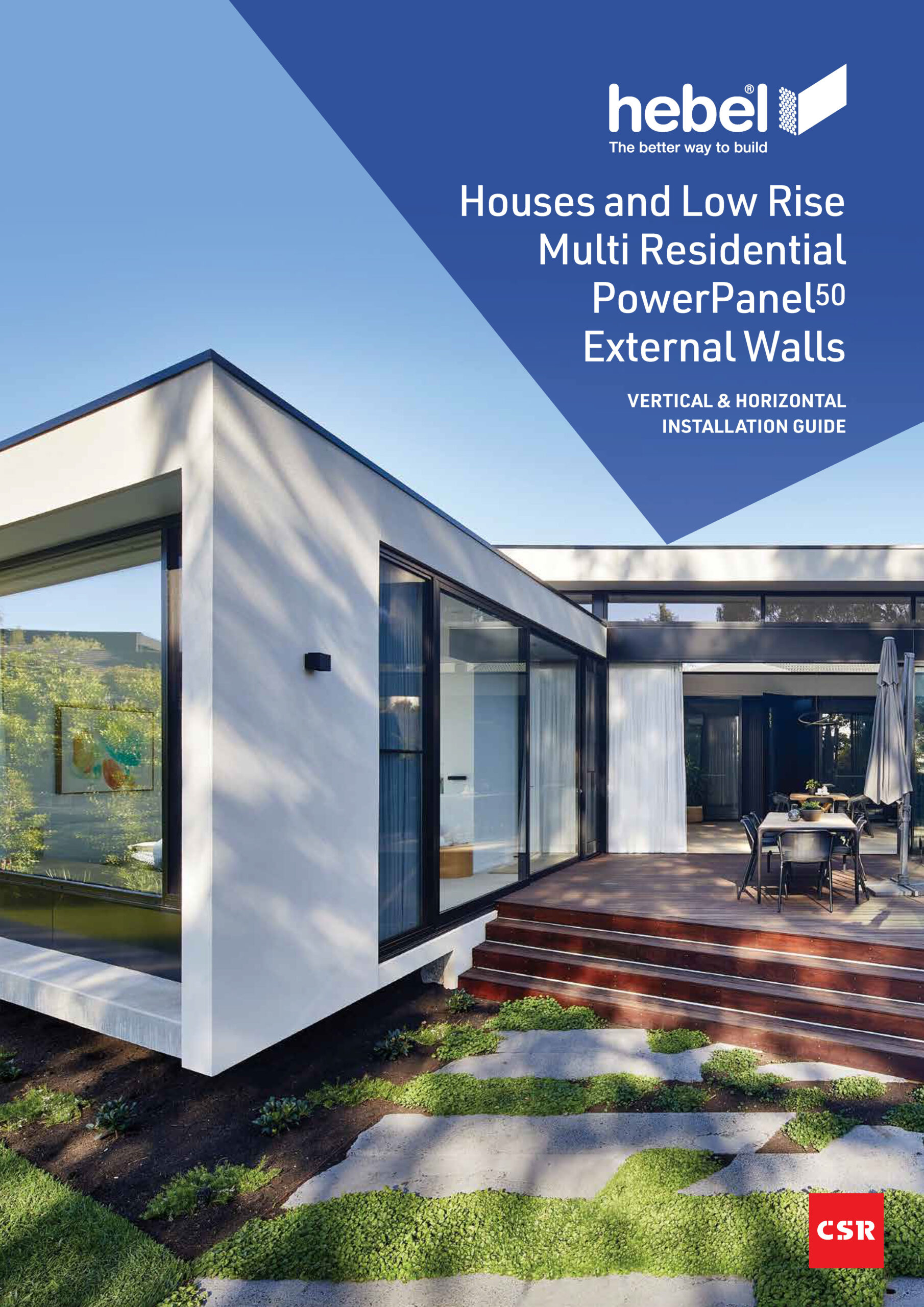

Houses and Low Rise Multi Res PowerPanel50 External Walls D&I Guide
Trade Flyers and DIY

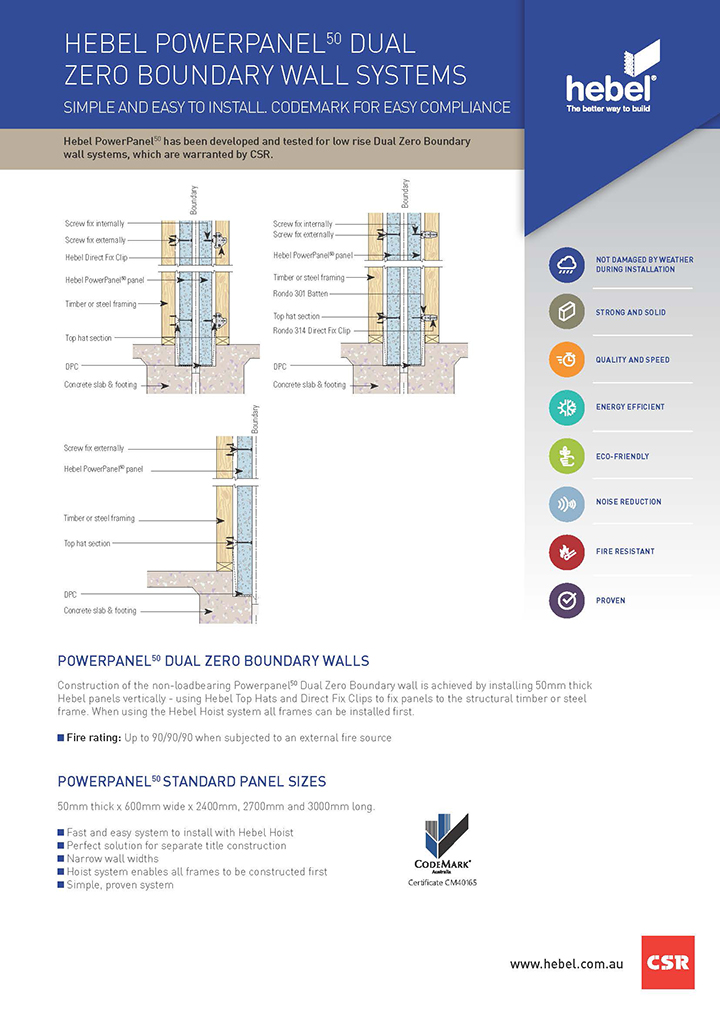

PowerPanel50 Dual Zero Boundary Wall Trade Flyer
Trade Flyers and DIY

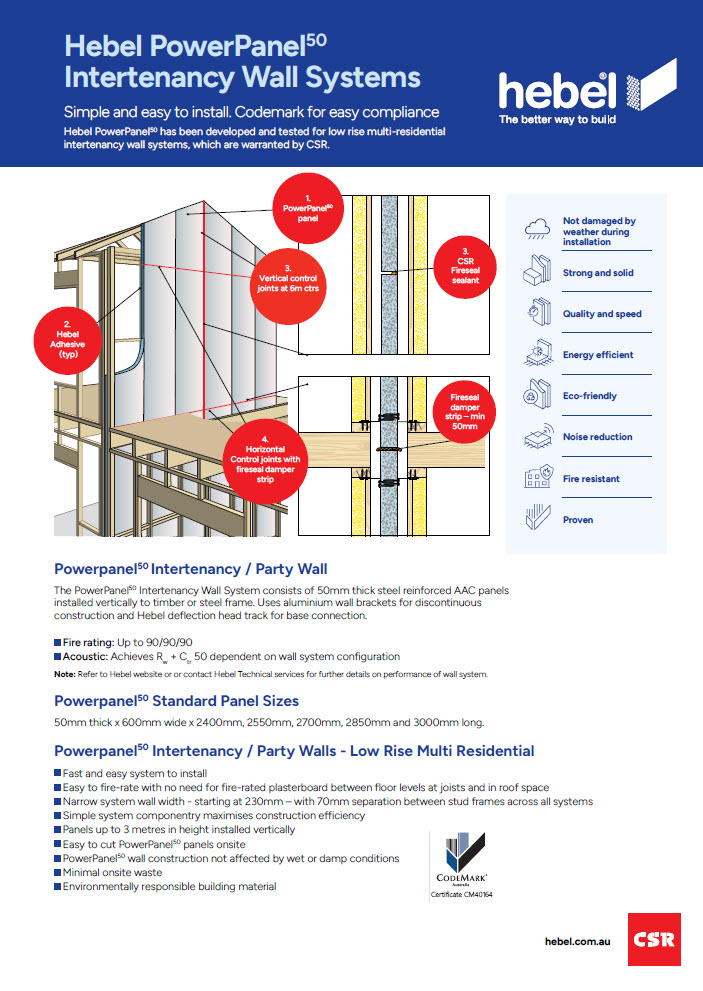

PowerPanel50 Low Rise Multi Residential Intertenancy Wall Trade Flyer
CAD Files
Hebel PowerPanel50 Low Rise Multi-Residential Intertenancy Walls CAD details
CAD Files
Hebel PowerPanel50 Low Rise Multi-Residential Dual Zero Boundary Walls CAD details
Design and Installation Guides
Low Rise Multi-Residential PowerPanel50 Intertenancy and Dual Zero Boundary Walls Design and Installation Guide
Brochures
Hebel Product Guide
