SoundBarrier™

Hebel’s highly effective sound barrier system greatly reduces freeway noise and train noise.
power-panel
selected
Overview
Performance and benefits
Applications
Technical information
Product accessories
Downloads

South Sydney Freight Line

Add icon

South Sydney Freight Line

Sound Barrier used alongside one of Sydney's busiest freight lines, reducing noise pollution for residents close by.

Erina Heights School

Add icon

Erina Heights School

Reducing noise doesn't mean you need to compromise on design. SoundBarrier panels can be routed with custom designs to add to the landscape.

The Hebel SoundBarrier system uses 100mm to 200mm thick Autoclaved Aerated Cement (AAC) panels to create attractive noise barriers. They are up to 75% lighter and 30% cheaper than precast concrete sound barriers. Hebel SoundBarrier shields communities from noise in a way that contributes design to the urban landscape.

While the Hebel SoundBarrier reduces noise from freeways and train lines, it can also contribute beautiful designs to the urban landscape. Made from AAC, the panels can be routed with custom designs at the Hebel factory. For example, freeway sound walls can be softened with geometric patterns or a full mural effect.

The system is flexible and designed to accommodate feature bays or steps that follow the gradient of the road providing an uninterrupted wall of constant height. With an extensive choice of acrylic coating colours available, a wide range.

Performance and benefits

icon
Strong & solid

100 & 125 mm thick, caged steel reinforcment with an anti-corrosion coating.

icon
Quality & speed

Panels are up to 75% lighter than precast concrete for faster install.

icon
Noise reduction

Engineered systems to protect communities from freeway and rail corridor noise.

icon
Design versatility

Can be factory-routed with attractive designs.

Technical information

The SoundBarrier system can effectively reduce noise by up to 39 decibels. Being lightweight also creates cost-saving construction efficiencies. Like reducing crane sizes and simplifying deliveries to site.

The AAC panels are installed horizontally with galvanised steel I-beam columns in concrete pier foundations. There are two styles of installation. The SoundBarrier panels can be installed in between the I-beam columns making the vertical steel column visible. Or they can be installed against the columns using Zed plates. This hides the vertical columns to give a butt- joined horizontal panel look on the road side.

SoundBarrier
Product
Code
Web
Description
Width
(mm)
Length
(mm)
Thickness
(mm)
Mesh DesignWeight
Per Pack (kg)
Units Per Pack
21997SoundBarrier T&G 3000mm3003000100Caged5788
21998SoundBarrier T&G 4000mm3004000100Caged7718
21996SoundBarrier T&G 3000mm6003000100Caged11568
21995SoundBarrier T&G 4000mm6004000100Caged15418
38688SoundBarrier T&G 4000mm3004000125Caged7236
29174SoundBarrier T&G 4000mm6004000125Caged14456

Product accessories

Adhesives, Sealants & Coatings

Hebel Adhesive

Product name

Hebel Adhesive

SKU

21933

Use

All systems

Selling Unit

20kg Bag

Hebel Patch

Product name

Hebel Patch

SKU

21949

Use

All systems

Selling Unit

10kg Bag

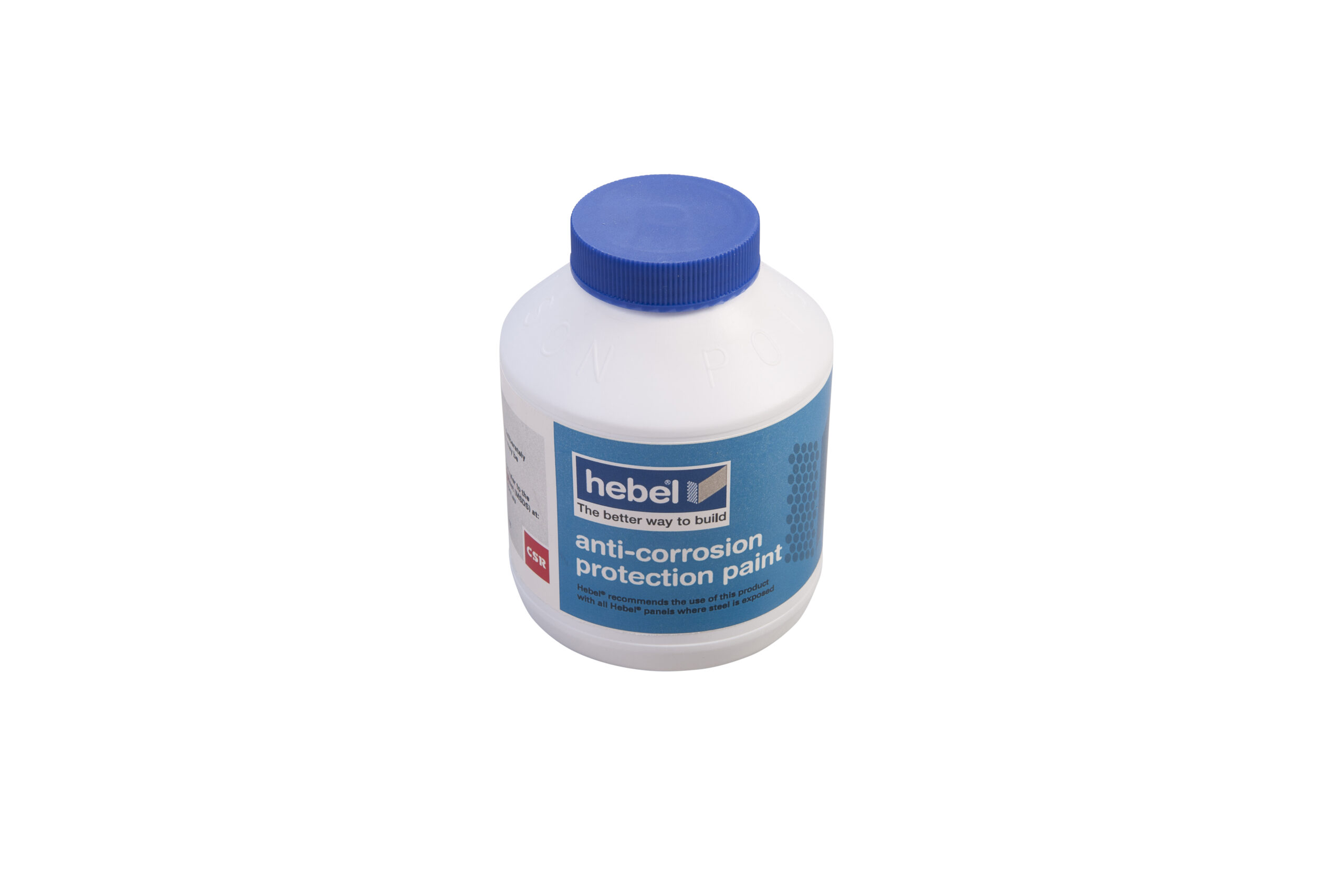

Hebel Anti – Corrosion Paint

Product name

Hebel Anti – Corrosion Paint

SKU

25594

Use

Used to coat exposed reo

Selling Unit

500mL Container

Downloads

All Downloads
Brochures
Design and Installation Guides
Technical Manuals
Safety Guides
Brochures
Soundbarrier brochure
Design and Installation Guides
Hebel SoundBarrier acoustic barrier systems
Technical Manuals
Hebel Tech Man – Pt1 Products
Brochures
Hebel Product Guide
Brochures
Hebel systems are simple and easy to approve
Brochures
The Benefits of Autoclaved Aerated Concrete in Modern Construction – Whitepaper
Safety Guides
Hebel Safety Guide – Cutting & Cleaning of Hebel AAC
Safety Guides

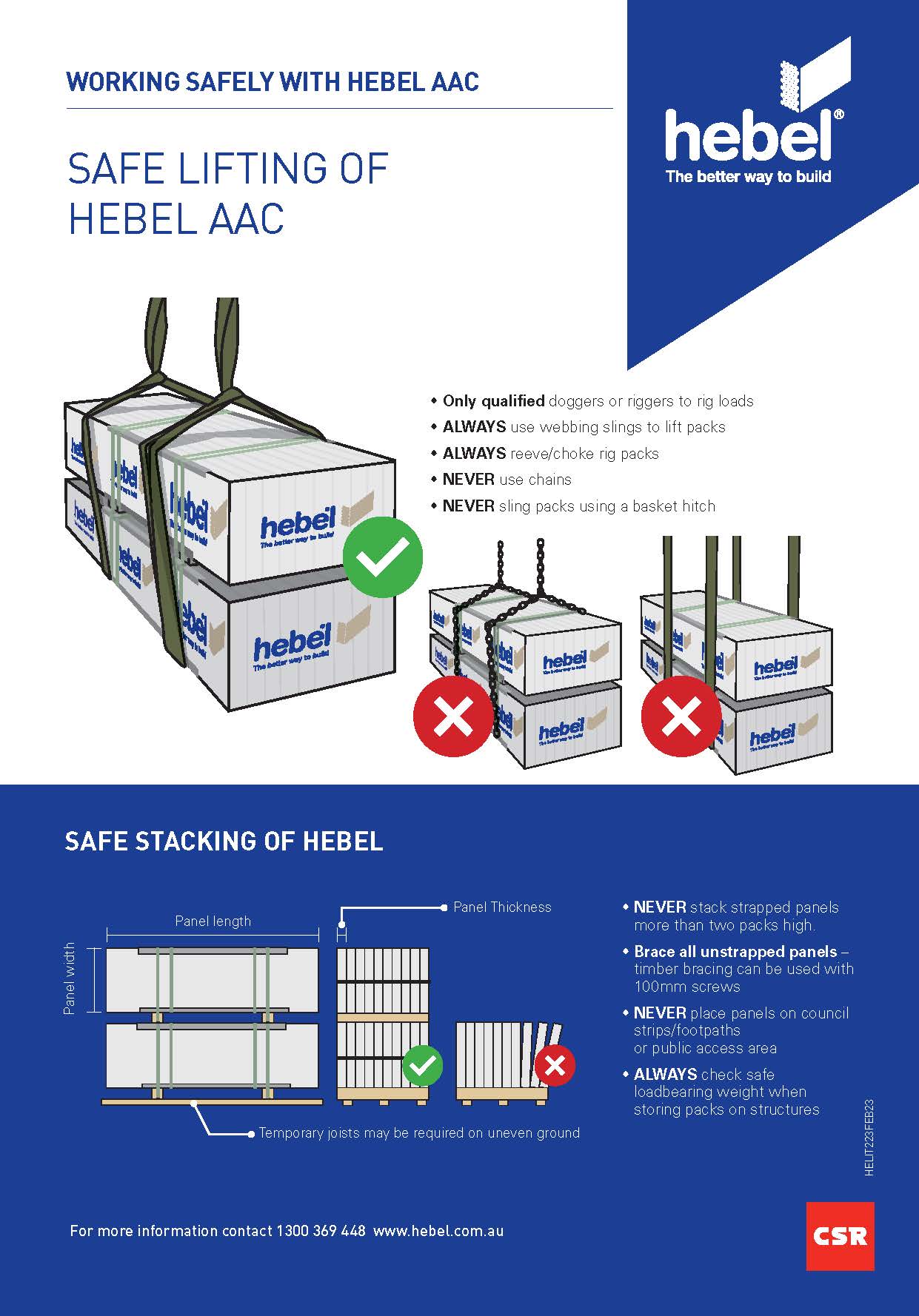

Hebel Safety Guide – Safe lifting of Hebel AAC
Safety Guides

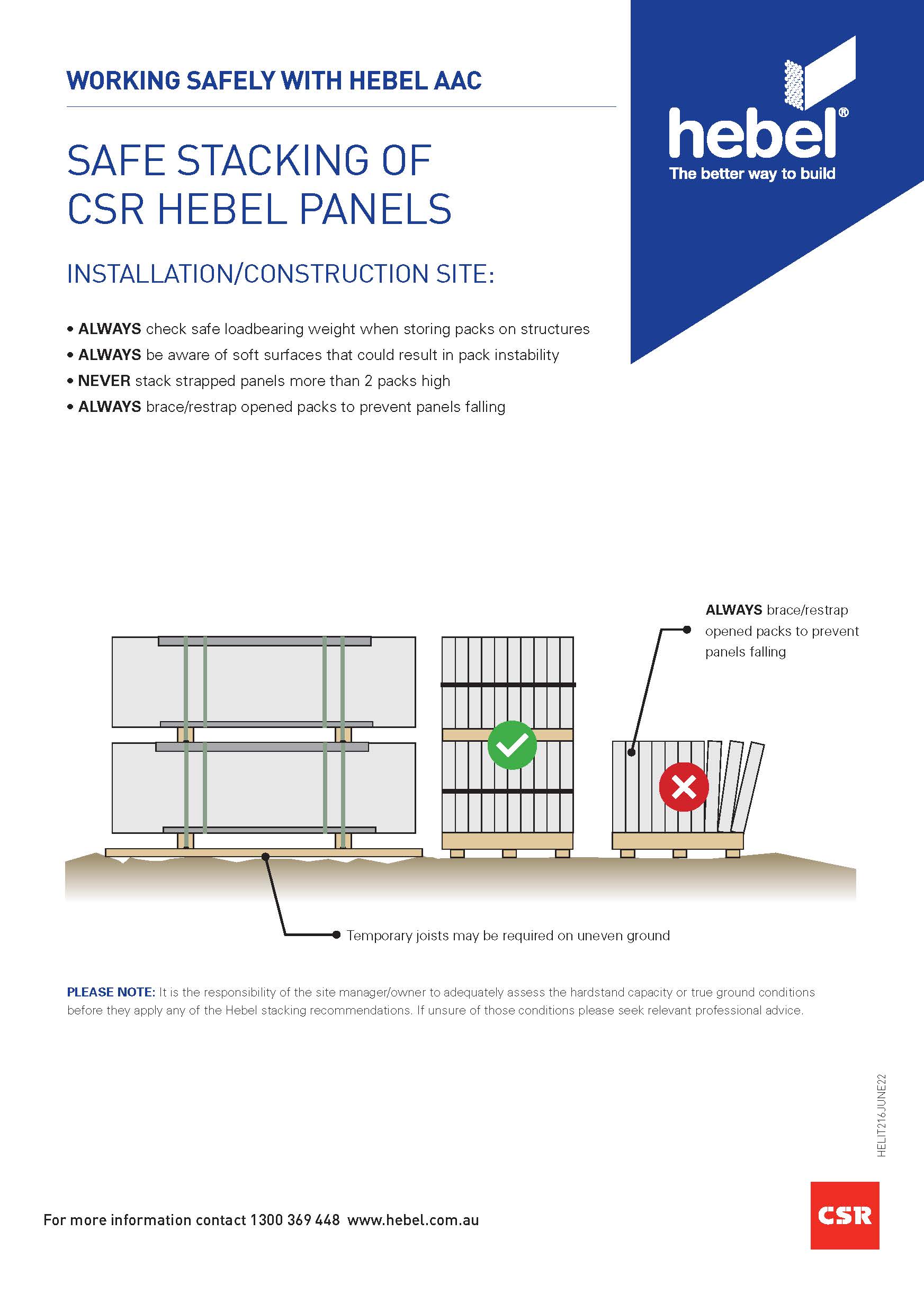

Hebel Safety Guide – Safe stacking of Hebel Panel
Safety Guides
Hebel Safety Guide – Silica fact sheet
