Panels

PowerShield®

Hebel PowerShield is a high performance acoustic, and fire rated panel used in Hebel fire and acoustic wall systems for civil and utilities projects.

Find a reseller

Happy Valley Substation

Hebel PowerShield hard at work as a sound barrier for this substation.

Hebel PowerShield is used in a range of fire and acoustic wall systems developed specifically for power stations, substations, roadways, tunnels, and infrastructure industries.

The fire rated panels range from 150 to 300 mm thick. They are installed horizontally and connect securely using tongue and groove joints. Being substantially lighter than precast concrete, they are easier to install, especially when site access is restricted.

PowerShield AAC panels are readily available, fast to install onsite and easy to cut for service penetrations. For structures in electromagnetic fields non-inductive panels can be supplied.

Performance and benefits

Strong & solid

Up to 300mm thick, caged steel reinforcment with an anti-corrosion coating.

Quality & speed

Substantially lighter than cast concrete alternatives.

Noise reduction

Engineered systems protecting communities from unwanted noise.

Fire resistant

Engineered systems designed to protect of critical civil and utility assets.

Applications

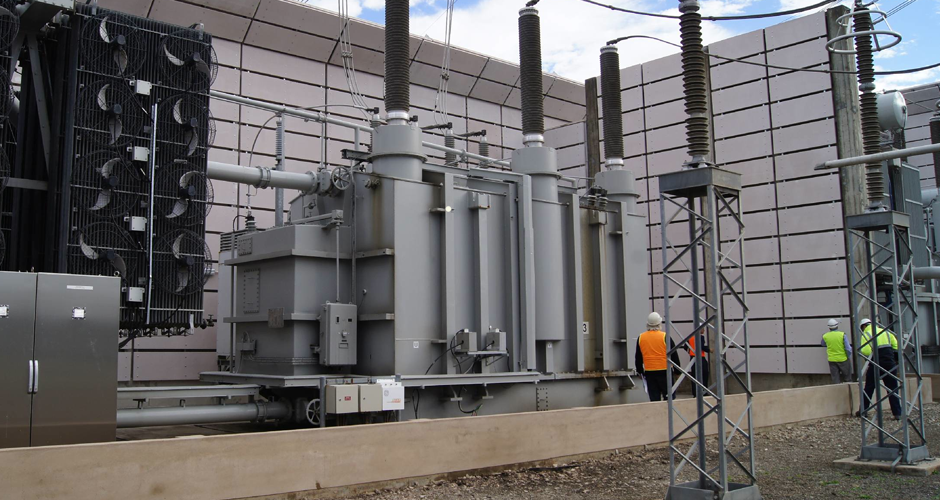

Fire Walls

Firewalls designed to stop the spread of fire between building compartments.

Acoustic Walls

Noise barriers, acoustic walls and a tunable acoustic absorption walls.

Technical information

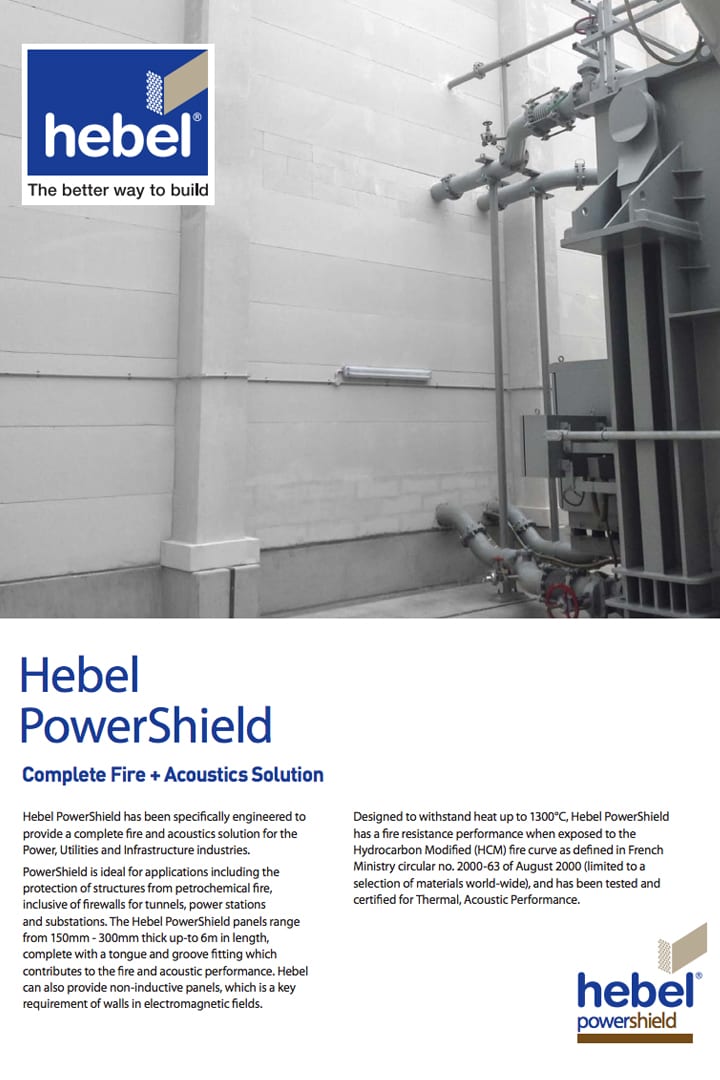

PowerShield fire wall systems.
PowerShield is designed to withstand heat up to 1300oC with high fire resistance performance when exposed to Hydrocarbon fires caused by oil and gas. PowerShield can be exposed to the Hydrocarbon Modified (HCM) fire curve for 2 hours. The cellulosic fire resistance level (FRL) is from -/120/120 to -/240/240 minutes depending on the system.

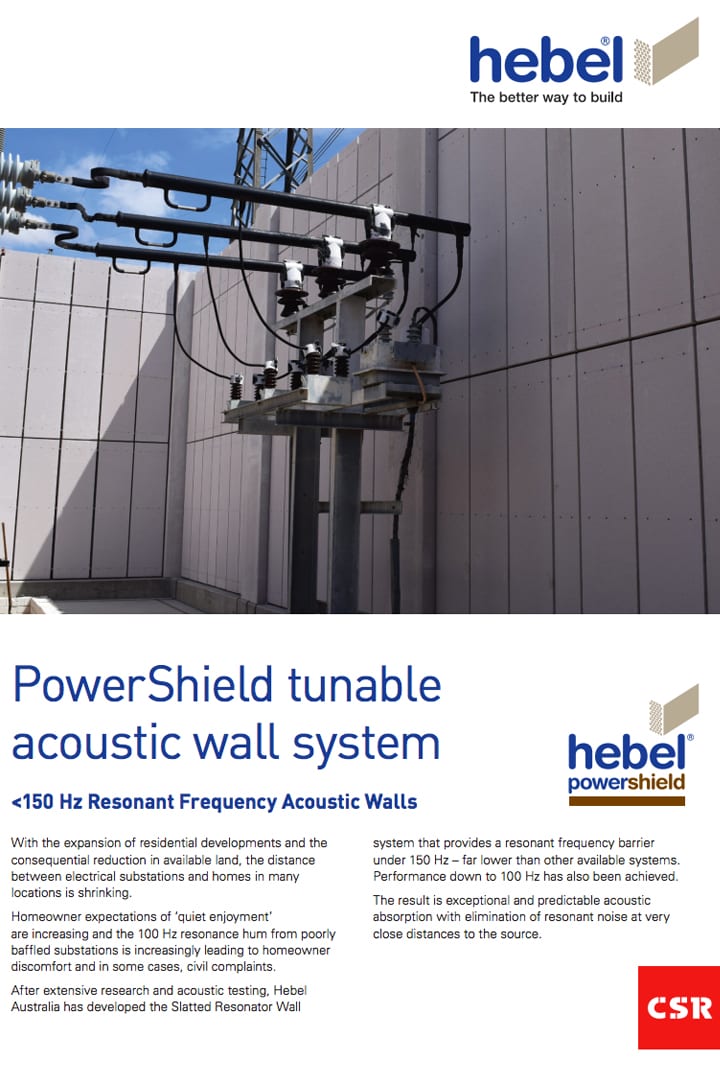

PowerShield acoustic absorption wall systems.
PowerShield panels alone perform well as noise barriers. However, Hebel has a highly effective, tunable acoustic absorption wall system created by adding a second layer of AAC panels. PowerPanel is installed, using Top Hats, onto the side of the PowerShield wall which faces the noise. The PowerPanels are arranged like slats with a calculated horizontal and vertical air gap between them. Panel positions are adjusted to match the resonant frequency required by the project for optimum noise minimisation. They deliver a resonant frequency barrier under 150HZ, far lower than traditional alternatives.

PowerShield

Product Code	Web Description	Width (mm)	Length (mm)	Thickness (mm)	Mesh Design	Units Per Pack
MTO 26	PowerShield 150mm	600	Up to 6000	150	Caged	5
MTO 27	PowerShield 175mm	600	Up to 6000	175	Caged	4
MTO 28	PowerShield 200mm	600	Up to 6000	200	Caged	3
MTO 29	PowerShield 250mm	600	Up to 6000	250	Caged	3
MTO 30	PowerShield 300mm	600	Up to 6000	300	Caged	3
