PowerPanelXL

Suitable for use on residential external facades PowerPanelXL is fast and easy to install with outstanding acoustic and thermal qualities.

Hebel PowerPanelXL panels are 75mm thick, 600mm wide and available in a range of lengths

Square edge profile

Steel mesh, coated with an anti-corrosion protection layer for maximum strength and durability

The PowerPanel XL external wall system consists of 75mm thick, steel-reinforced AAC panels, fixed vertically to Hebel’s patented perforated Top Hat sections – providing a faster way of constructing external facades for residential builds.

Compared to traditional masonry, installation of the PowerPanelXL system is 60% faster and provides outstanding acoustic and thermal insulation performance. It is also non-combustible, making it the perfect choice in bushfire zones.

Strong and solid, each PowerPanelXL panel also contains steel reinforcement for added strength with an anti-corrosion layer on the steel for maximum durability.

Benefits

Strong and solid

Energy efficient

Quality and speed

Eco friendly

Noise reduction

Fire resistant

Product Sizes

PowerPanelXL for Residential & Multi-Residential External & Internal walls

PowerPanelXL – Standard Range 75mm

  • 2400x600x75 SQ1M0
  • 2550x600x75 SQ1M0
  • 2700x600x75 SQ1M0
  • 2800x600x75 SQ1M0
  • 2850x600x75 SQ1M0
  • 3000x600x75 SQ1M0
  • 3300x600x75 SQ1M0

PowerPanelXL – Made to Length in 5mm increments

  • 2400 to 3300 x 600×75 Made to length PowerPanelXL 1M
SQ = Square Edge, 1M = Single Mesh, 0 = No Bevel Note: All Made to Length panels are: Made to Confirmed Order Only – Minimum quantities and lead times apply.

Product Accessories

Adhesives and Coatings
25594 - Hebel Anti - Corrosion Paint 500ml
21933 - Hebel Adhesive
21949 - Hebel Patch
21935 - Hebel Mortar
122116 - CSR FireSeal - Fire & Acoustic Sealant
WidthCodeDescriptionMain ApplicationSelling Unit
25594Hebel Anti - Corrosion Paint 500mlUsed to coat exposed reoEach
21933Hebel AdhesiveAll systems20kg Bag
21949Hebel PatchAll systems10kg Bag
21935Hebel MortarAll systems20kg Bag
122116CSR FireSeal - Fire & Acoustic SealantAll systemsBox of 12
Bracket
110203 - Direct Fixing Clip
40900 - Aluminium Party Wall Bracket
WidthCodeDescriptionMain ApplicationSelling Unit
110203Direct Fixing ClipDirect fixing clip for PowerPanelXL Zero boundary wallsEach
40900Aluminium Party Wall BracketAttach PowerPanelXL to int. frameEach
Hand Tools

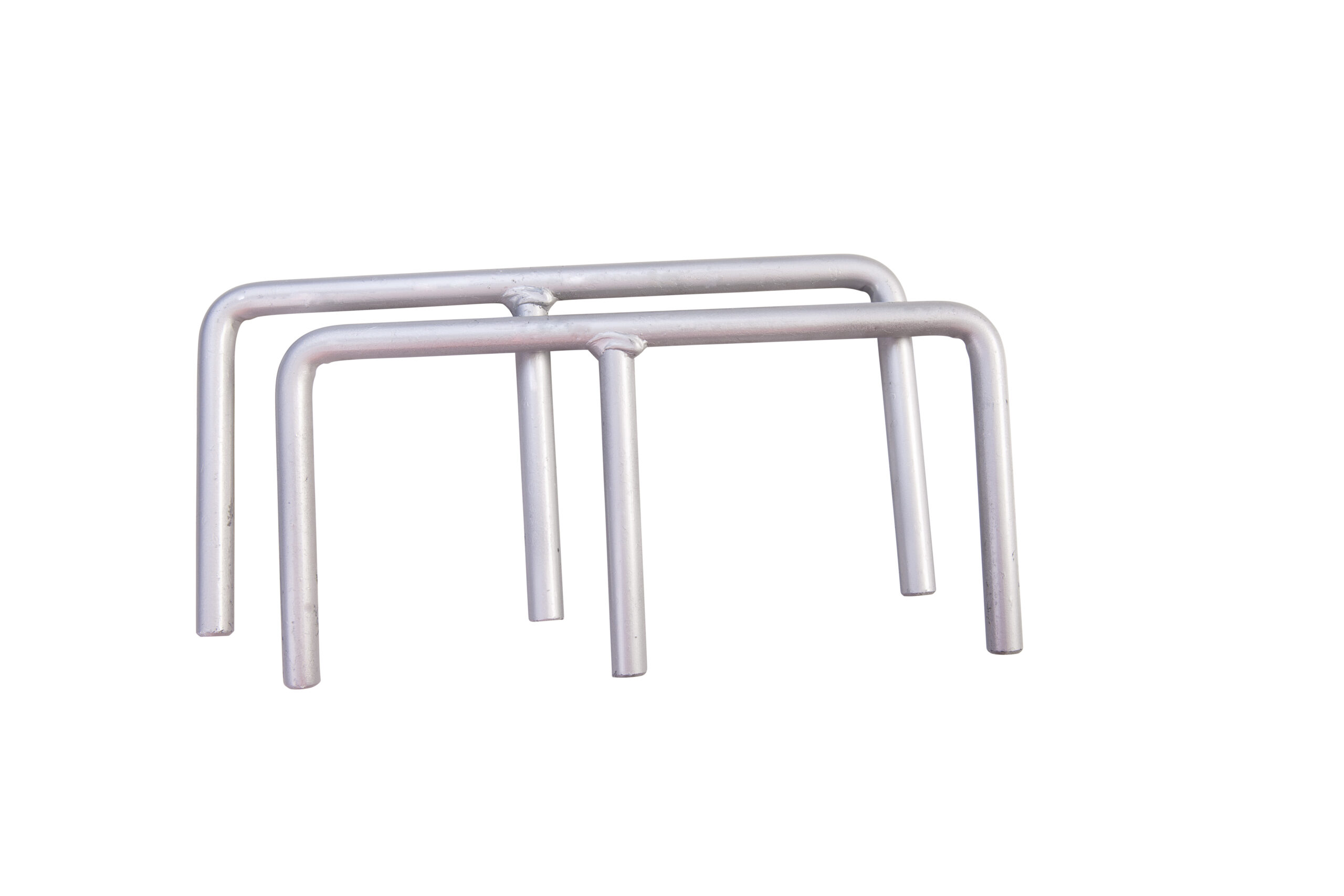

21901 - PowerPanel Lifters 16mm
110203 - 2 Wheel panel mover

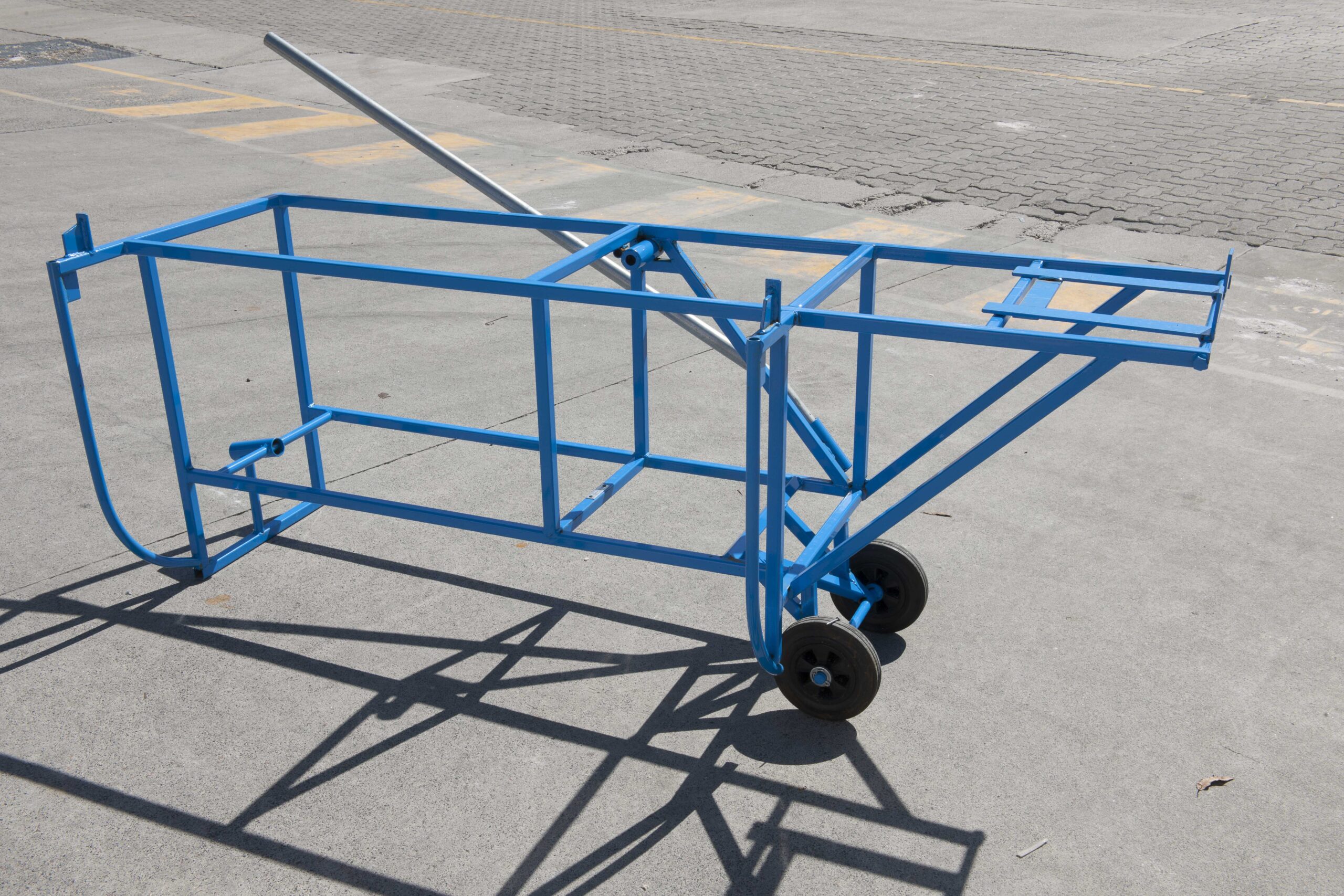

130324 - Installer PowerPanel Trolley

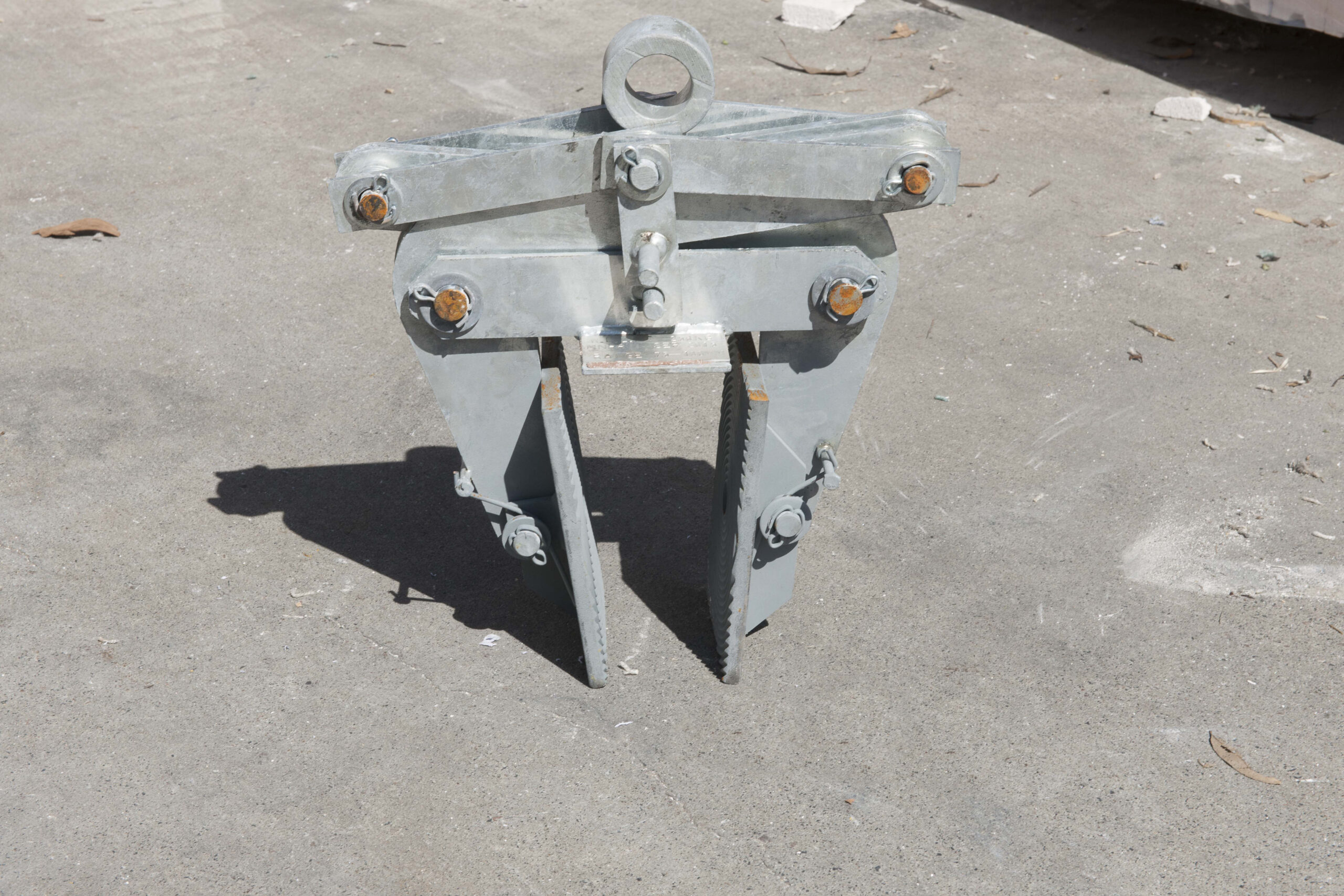

107687 - Panel Scissor Lifter
WidthCodeDescriptionMain ApplicationSelling Unit
21901PowerPanel Lifters 16mmHandling system for PowerPanelOne Pair
1102032 Wheel panel moverHandling system for PowerPanelEach
130324Installer PowerPanel TrolleyHandling system for PowerPanelEach
107687Panel Scissor LifterPanel lifterEach

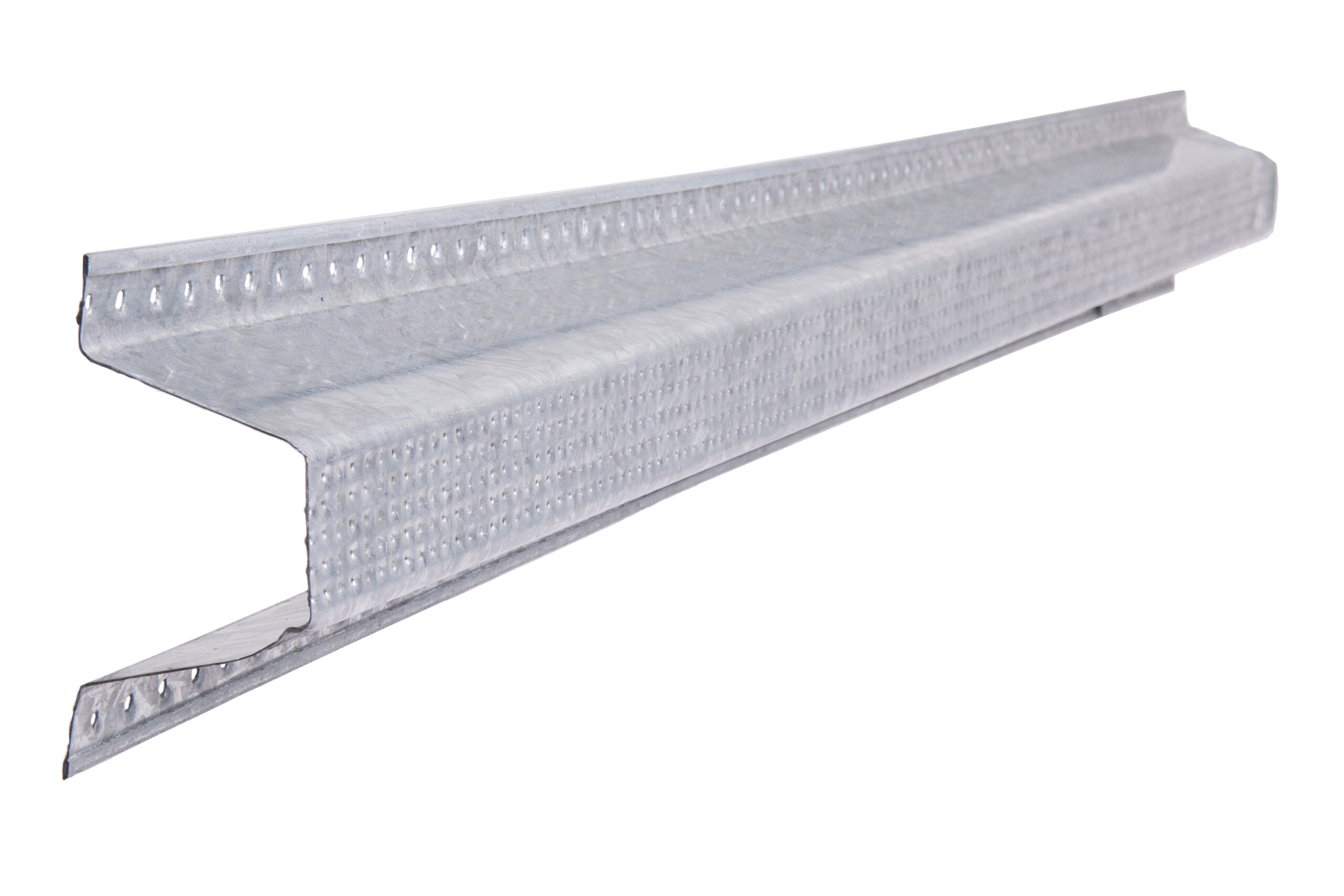

Top Hats

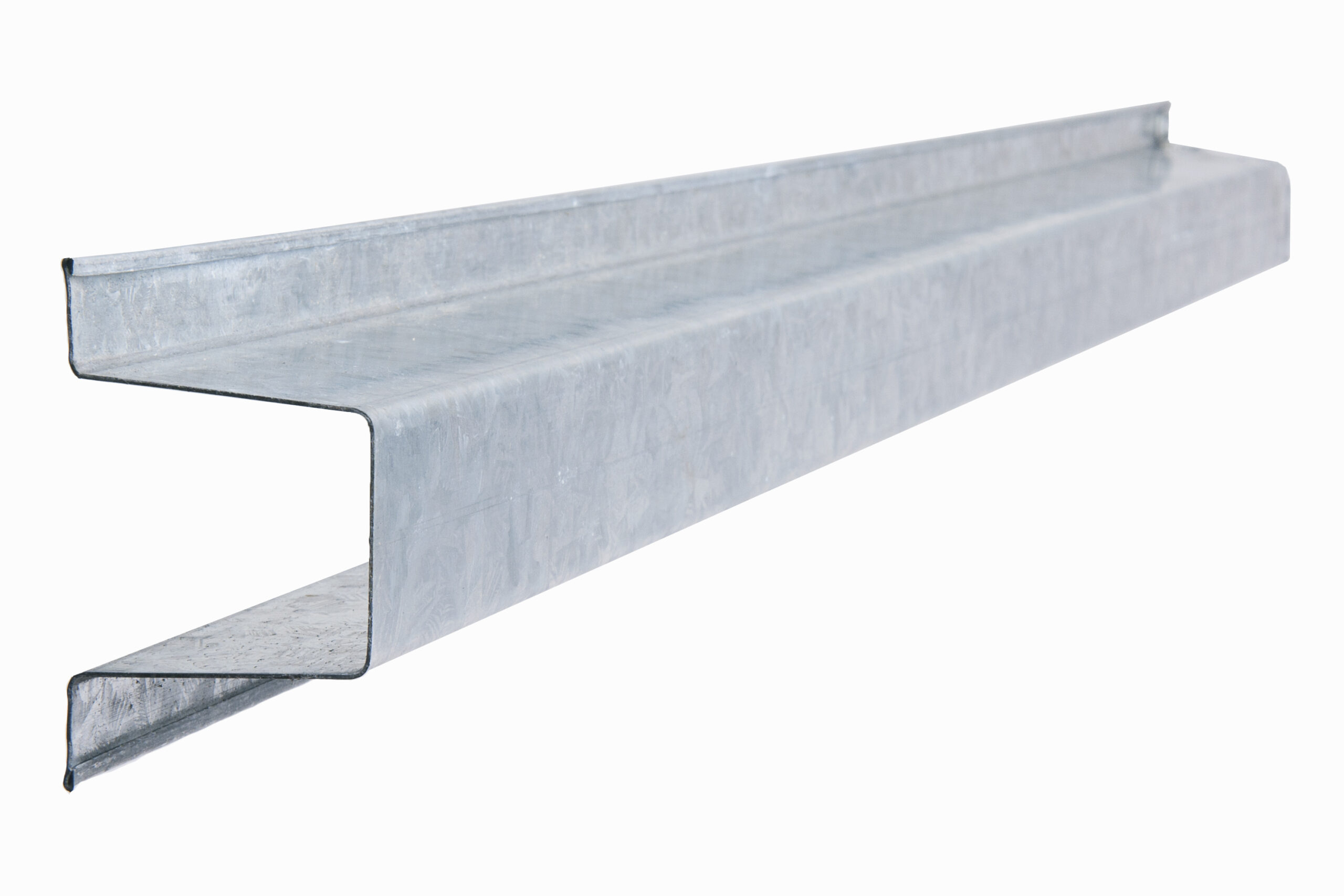

24092 - TopHat 75mm x 4.8m x 0.70mm BMT

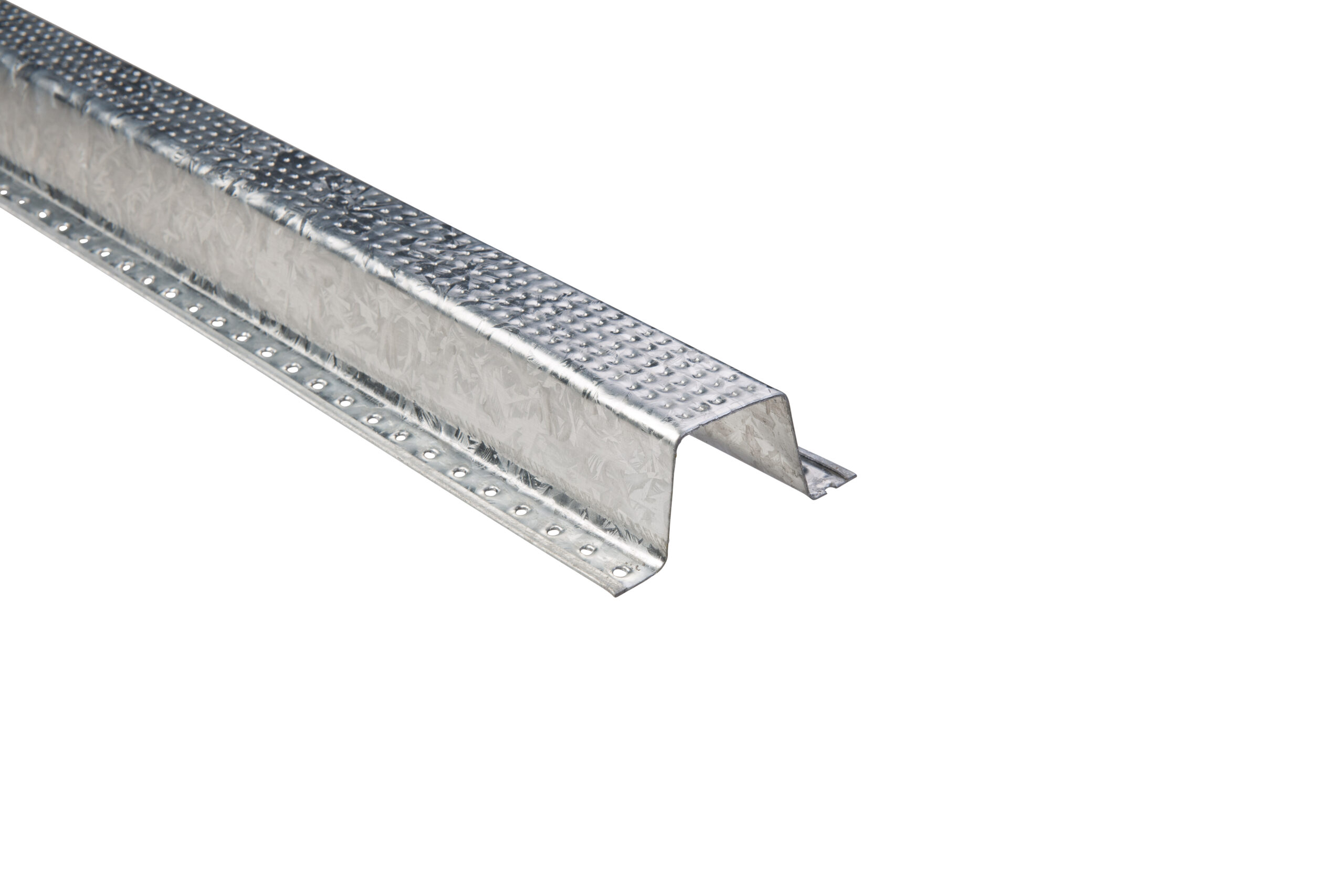

105536 - Perforated TopHat 35mm x 4.8m x 0.55mm BMT
105536 - Perforated TopHat 35mm x 4.8m x 0.55mm BMT
21909 - Perforated TopHat 24mm x 4.8m x 0.42mm BMT
WidthCodeDescriptionMain ApplicationSelling Unit
24092TopHat 75mm x 4.8m x 0.70mm BMTAttaching PowerPanelXL to frameEach
105536Perforated TopHat 35mm x 4.8m x 0.55mm BMTAttaching PowerPanelXL to frameEach
105536Perforated TopHat 35mm x 4.8m x 0.55mm BMTAttaching PowerPanelXL to frameEach
21909Perforated TopHat 24mm x 4.8m x 0.42mm BMTAttaching PowerPanelXL to frameEach
Metal Angles
21957 - Slotted Angle 75mm x 50mm x 2.7m x 1.2mm BMT
21882 - Deflection Head 76mm x 50mm x 3m x 0.8mm BMT
WidthCodeDescriptionMain ApplicationSelling Unit
21957Slotted Angle 75mm x 50mm x 2.7m x 1.2mm BMTHead support angleEach
21882Deflection Head 76mm x 50mm x 3m x 0.8mm BMTDeflection HeadEach

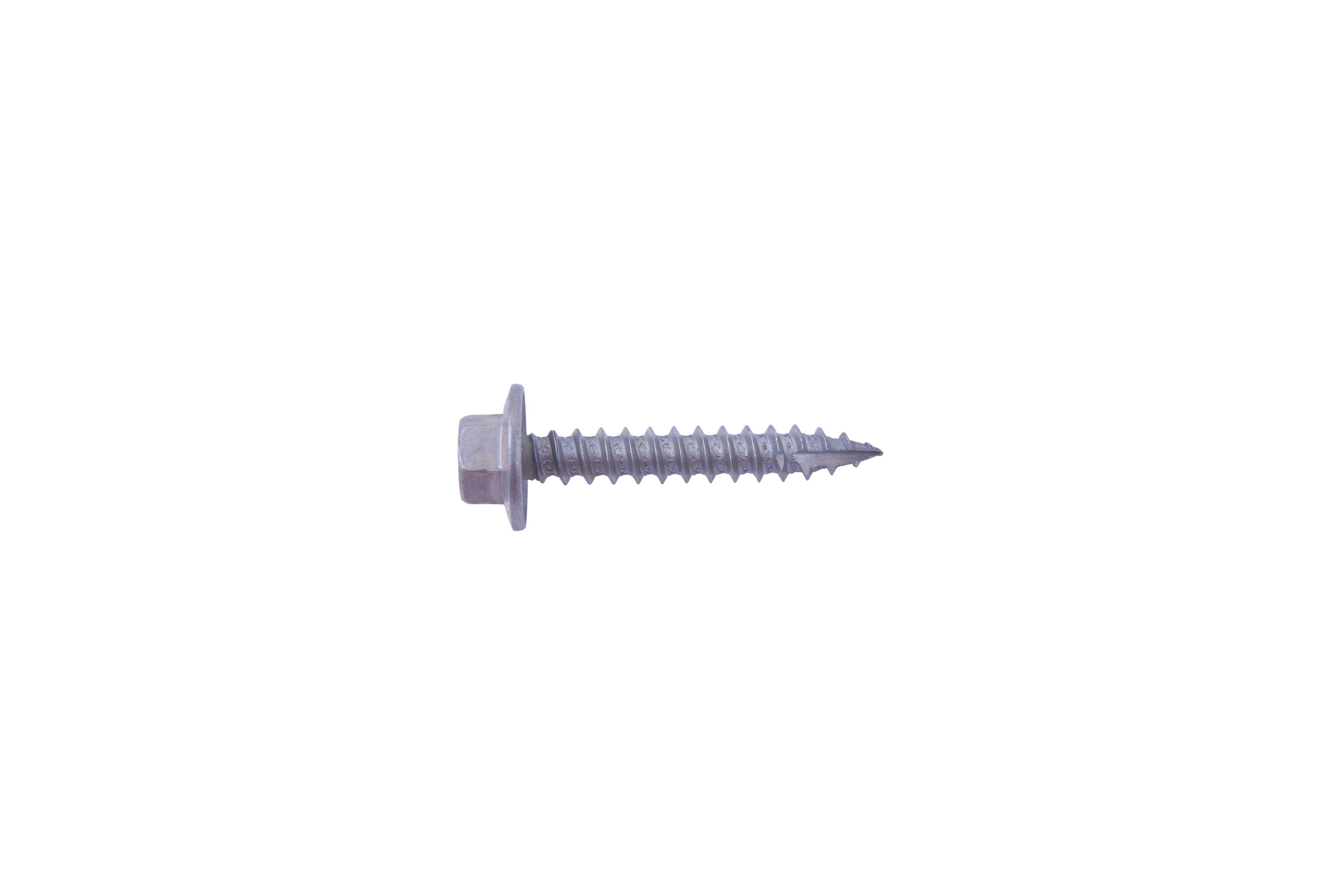

General Purpose Screws
125747 - Screw 14-10 x 90 Hex Head Type 17
44174 - Screw 14-10 x 150 Hex Head Type 17
21906 - Screw 10-16 x 16 Hex Head Teks
21900 - Screw 14-10 x 65 Hex Head Type 17
WidthCodeDescriptionMain ApplicationSelling Unit
125747Screw 14-10 x 90 Hex Head Type 17Ext. fix PowerPanel to TopHatBox of 250
44174Screw 14-10 x 150 Hex Head Type 17Screw panels together at cornersBox of 250
21906Screw 10-16 x 16 Hex Head TeksFix TopHat to steel stud frameBox of 1000
21900Screw 14-10 x 65 Hex Head Type 17Int. fix PowerPanel to TopHatBox of 500
