PowerFloor®
IMSU Homes, Selene 57
IMSU Homes, Selene 57
Hebel PowerFloor gives you the solid feeling of the ground floor from the first floor.
Peter Zembis, Ecologie Group
Peter Zembis, Ecologie Group
Hebel PowerFloor reduces noise between levels for a quieter, more comfortable home.
Hebel PowerFloor structural floor panels are ideal for first floors and suspended ground floors, decks, and balconies as well as wet areas like bathrooms and laundries . They provide an excellent base for most floor coverings including attractive engineered timber, hardwood, and vinyl flooring as well as carpet and floor tiles.
PowerFloor keeps houses warm in winter and cooler in summer. It also minimises noise transference between the floors of the house. PowerFloor is a sound investment in home-comfort. As a result, Hebel PowerFloor is a great choice for two storey “reverse living” coastal homes. This is where living areas and kitchens are on the top floor, to capture views, breeze and natural light, and bedrooms are on the ground floor.
Performance and benefits
Strong & solid
75mm thick steel reinforced panel, feels solid under foot like a concrete slad, without the price tag.
Quality & speed
Fast to install over timber or steel joists, not affected by weather during installion.
Energy efficient
Thermal mass and efficiency. Save on heating and cooling.
Noise reduction
Reduces noise transfer between floors.
Applications
View by
Technical information

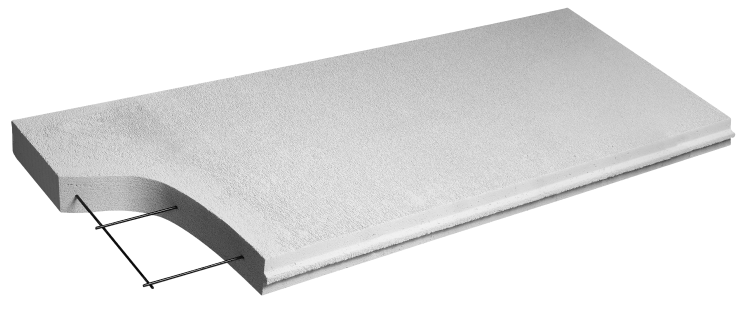

Hebel PowerFloor is a high-performance subfloor solution. The 75mm thick Autoclaved Aerated Concrete (AAC) panels are installed over joists in a similar way to tongue and groove cement sheet and particleboard flooring. However, they are more solid under foot and feel more like a concrete slab floor.
The AAC floor panels are almost four times thicker than conventional 19mm structural flooring. This makes Hebel PowerFloor squeak-free and provides high-performance acoustic and thermal insulation properties.
PowerFloor is simple to install. Carpenters can have the floor ready for finishes within 24 hours. Trades can also avoid weather delays since PowerFloor installation is not affected by wet or damp conditions.
The Hebel PowerFloor panels are non-combustible. The system has a Fire Resistance Level (FRL) of 90/90/90 minutes for a fire source above the floor.
PowerFloor
| Product Code | Web Description | Width (mm) | Length (mm) | Thickness (mm) | Mesh Design | Weight Per Pack (kg) | Units Per Pack |
|---|---|---|---|---|---|---|---|
| 21987 | PowerPanel50 T&G 1800mm | 600 | 1800 | 75 | Single | 603 | 15 |
Product accessories
Adhesives, Sealants & Coatings
Product name
Hebel Adhesive
SKU
21933
Use
All systems
Selling Unit
20kg Bag
Product name
Hebel Patch
SKU
21949
Use
All systems
Selling Unit
10kg Bag
Product name
Hebel Anti – Corrosion Paint
SKU
25594
Use
Used to coat exposed reo
Selling Unit
500mL Container
Hand Tools
Product name
Levelling Plane
SKU
21892
Use
Levelling Hebel
Selling Unit
Each
Product name
Powerpanel Lifters 16mm
SKU
21901
Use
Handling system for PowerPanel
Selling Unit
Pack of 2
Product name
Powerpanel Trolley 2.4-2.7 Panels
SKU
21903
Use
Handling system for PowerPanel
Selling Unit
Each
Product name
Powerpanel Trolley 2.9-3.35 Panels
SKU
21904
Use
Handling system for PowerPanel
Selling Unit
Each
Product name
Sanding Float
SKU
21912
Use
All systems
Selling Unit
Each
Product name
Panel Scissor Lifter 75mm
SKU
107687
Use
Panel lifter
Selling Unit
Each
Product name
Panel Separator Kit
SKU
119426
Use
All systems
Selling Unit
Each
Product name
Installer Power Panel Trolley
SKU
130324
Use
Handling system for PowerPanel
Selling Unit
Each
Product name
2 Wheel Panel Mover
SKU
162645
Use
Handling system for PowerPanel
Selling Unit
Each
Screws
Product name
Screw 14-10 x 95 Hex Head
SKU
29041
Use
Fix PowerFloor to steel joists
Selling Unit
Box of 500
Product name
Screw 14-10 x 100mm Bugle Head
SKU
41235
Use
Fix PowerFloor to timber joists
Selling Unit
Box of 250

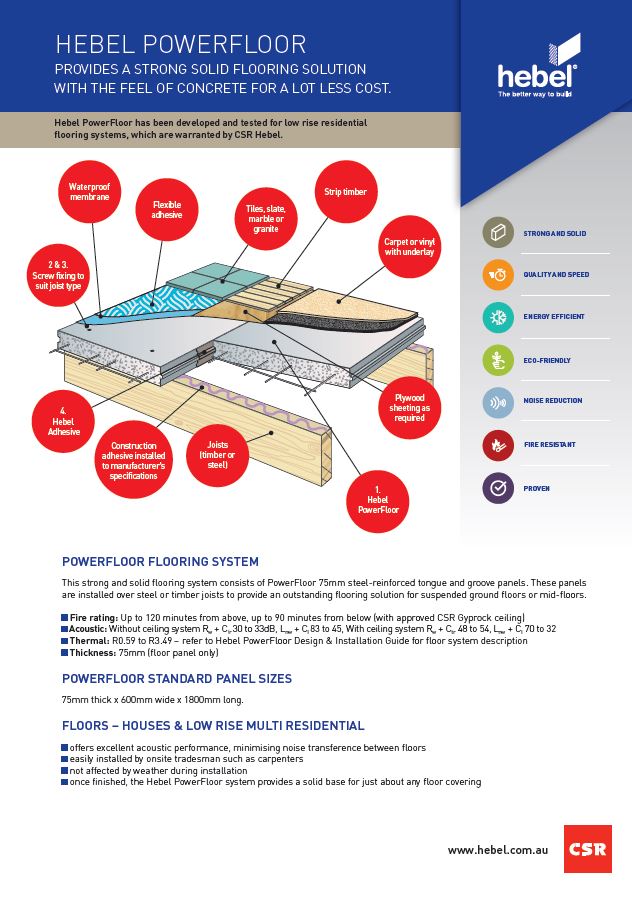

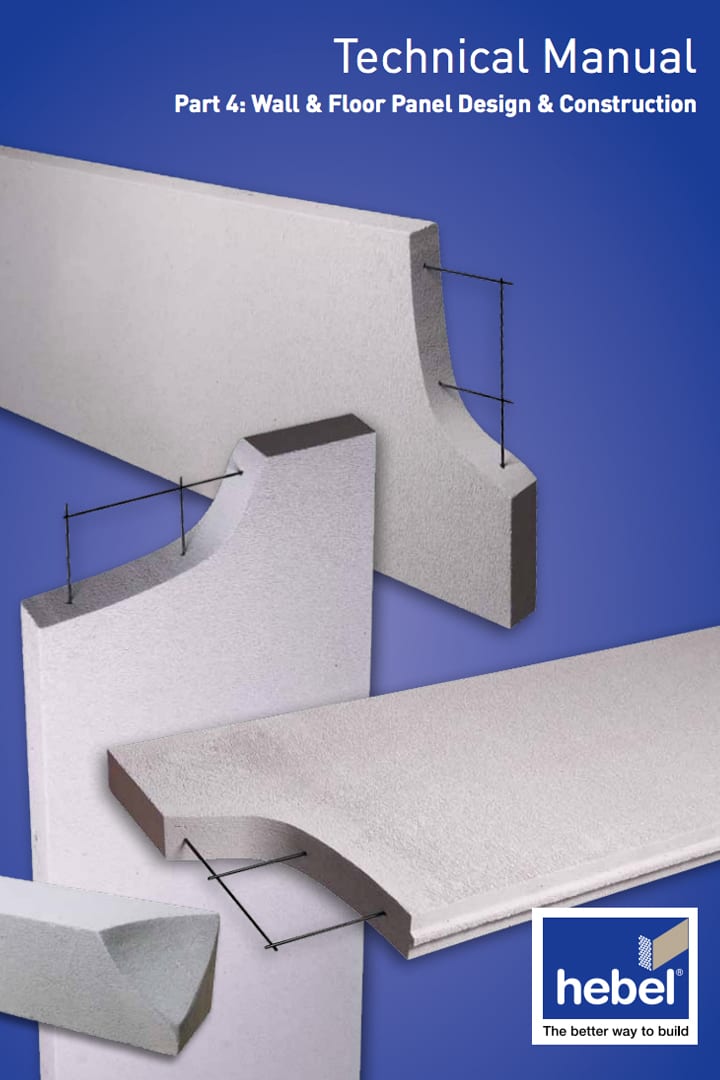

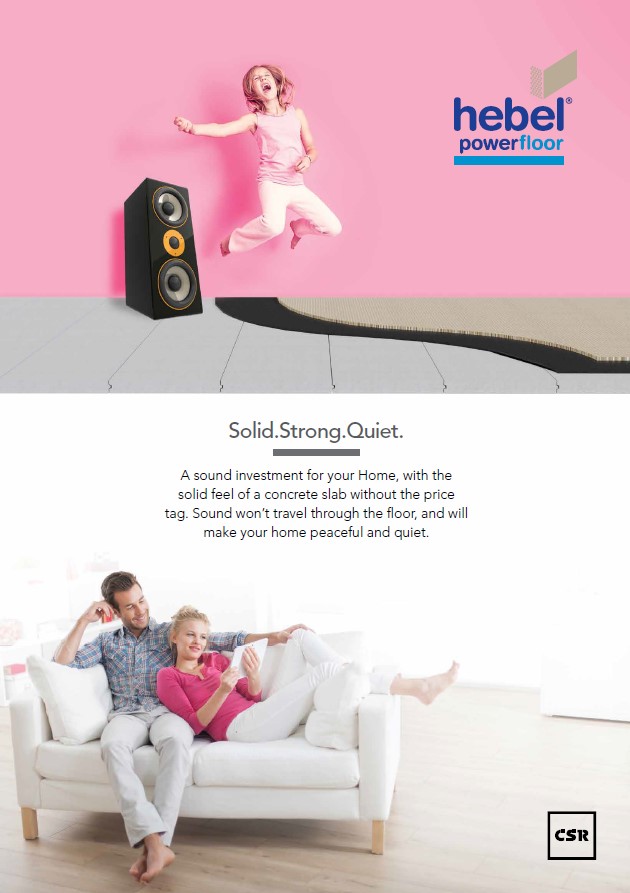

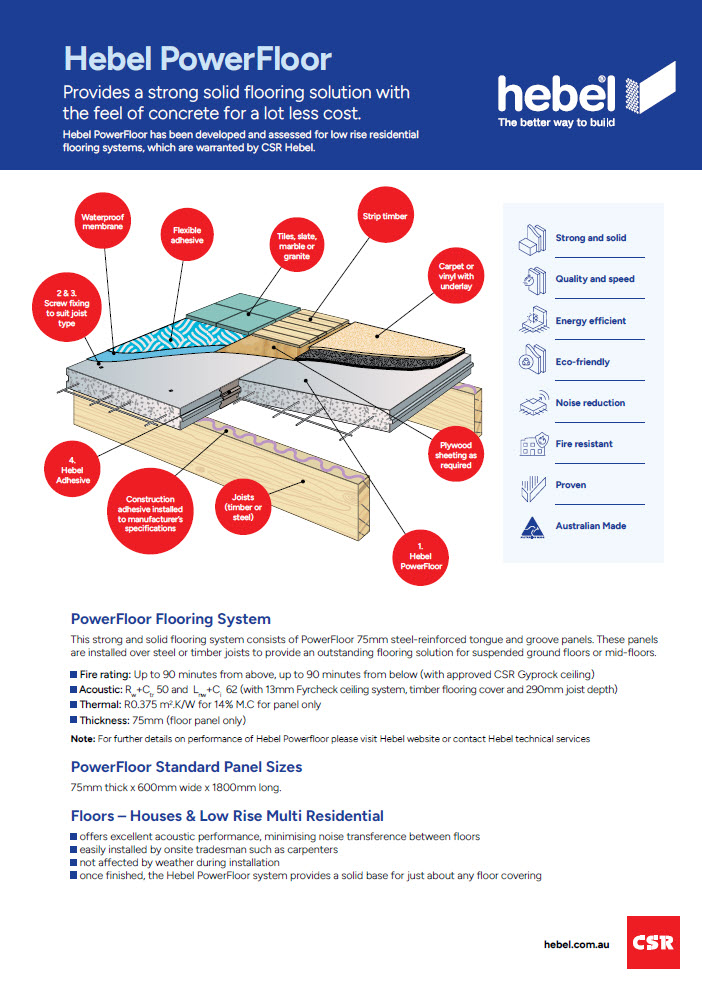

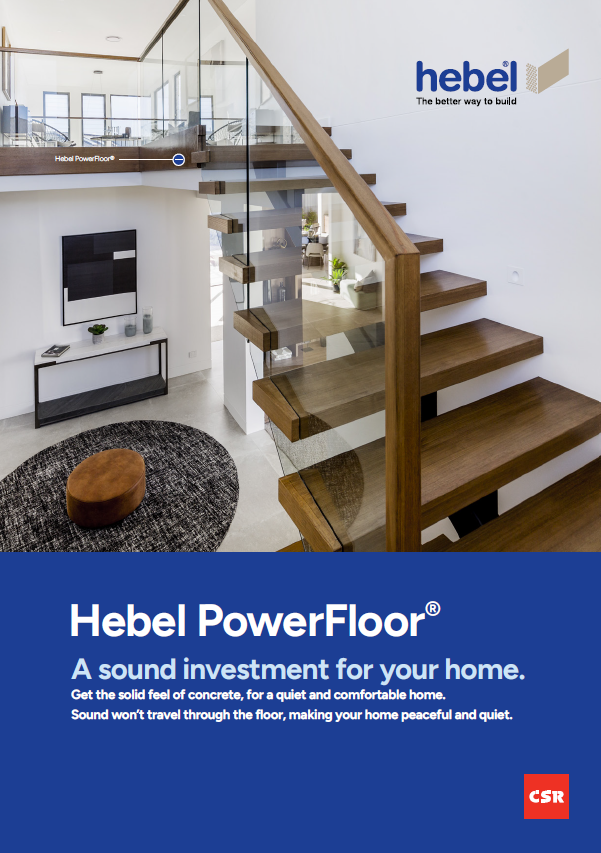

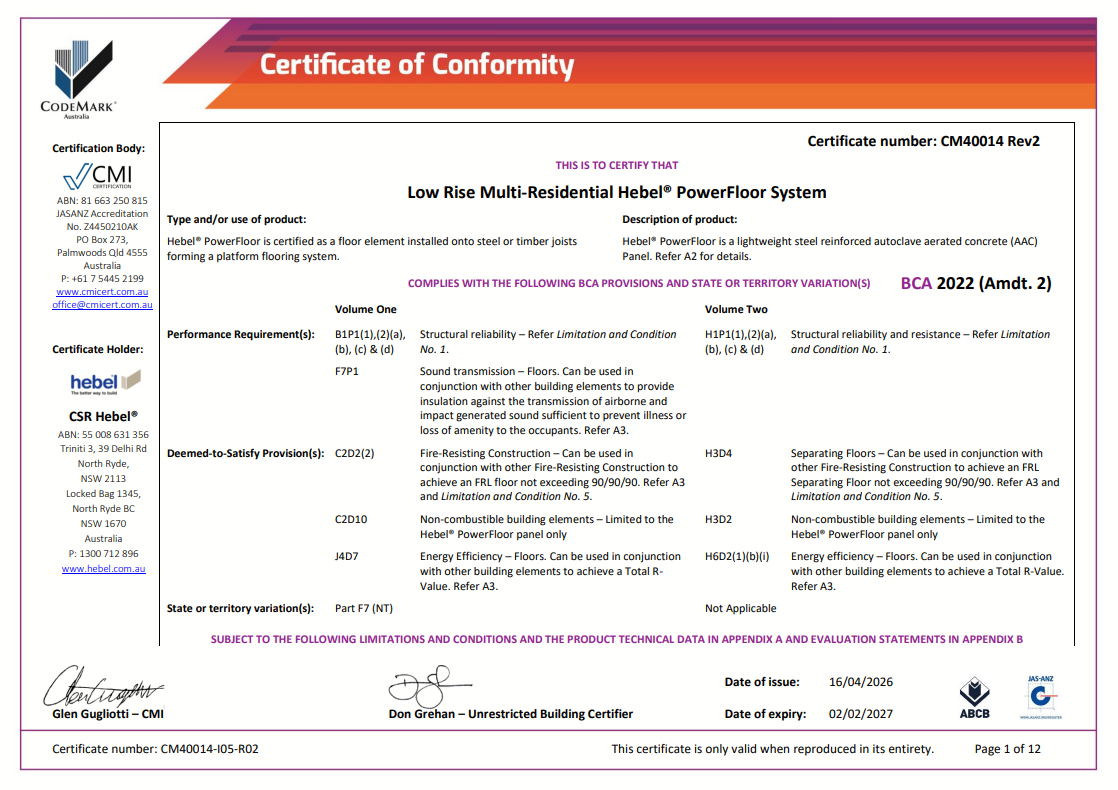

Downloads
Find a...
We have a network of suppliers ready to help you get your project up and running.
