PowerProfile®
IMSU Homes, Horizon
IMSU Homes, Horizon
Get the industrial look with Hebel PowerProfile, and create a home with instant street appeal.
King Homes, Spice Home
King Homes, Spice Home
Not only does it look great, Hebel was chosen to improve this home's overall thermal efficiency.
Standing seam cladding is a popular feature on the facades of modern and industrial style homes. The look is defined by protruding seams which are evenly spaced along external walls. They create a dramatic contrast of light and shadow which changes throughout the day.The standing seam cladding style can be achieved with PowerPanelXL by adding the PowerProfile system.
The Hebel PowerProfile system looks like a standing seam. The system comprises a universal metal backing clip that is fixed to PowerPanelXL, and a powder coated aluminium profile snaps onto the clip. The profiles are available in a rounded bullnose style and a sharper trapezoidal style. They are powder coated in a choice of three popular Colorbond® colours, Dune®, Basalt™ and Monument®, offering a myriad of design options for facades .
To complete the standing seam cladding look, choose a smooth texture acrylic coating for the PowerPanelXL such as Dulux Sienna Naturale. Then match the colour of the chosen powder coated profile.
Performance and benefits
Design veratility
The look of standing seam and metal cladding with the benefits of Hebel.
Strong & solid
75mm panels are reinforced steel with an anti-corrosion coating.
Energy efficient
Hebel panels thermal properties help keep your home cool in summer and warm in winter.
Proven & compliant
Backed by CSR, non-combustible and meet NCC requirements.
Applications
View by
Technical information
The Power Profile system uses Hebel PowerPanelXL. PowerPanelXL is a 75mm thick autoclaved aerated concrete (AAC) panel with a medium thermal mass that provides very good thermal insulation for a comfortable home. Whereas traditional standing seam cladding made from steel has zero insulation properties.
Hebel PowerProfile ribs should be set out at 300mm centres taking care to avoid control joints by a minimum of 20mm.
PowerPanelXL for PowerProfile
| Product Code | Web Description | Width (mm) | Length (mm) | Thickness (mm) | Mesh Design | Weight Per Pack | Units Per Pack |
|---|---|---|---|---|---|---|---|
| 118014 | PowerPanel XL 2400mm | 600 | 2400 | 75 | Single | 804 | 10 |
| 118016 | PowerPanel XL 2700mm | 600 | 2700 | 75 | Single | 904 | 10 |
| 118019 | PowerPanel XL 2850mm | 600 | 2850 | 75 | Single | 955 | 10 |
| 118020 | PowerPanel XL 3000mm | 600 | 3000 | 75 | Single | 1005 | 10 |
| 126504 | PowerPanel XL 3300mm | 600 | 3300 | 75 | Single | 1106 | 10 |
Product accessories
PowerProfile Accessories
Filter accessories by colour
Product name
PowerProfile Universal Backing Clip 1.2M
SKU
454789
Use
Fixed over Hebel substrate for profiles and trims
Selling Unit
Each
Product name

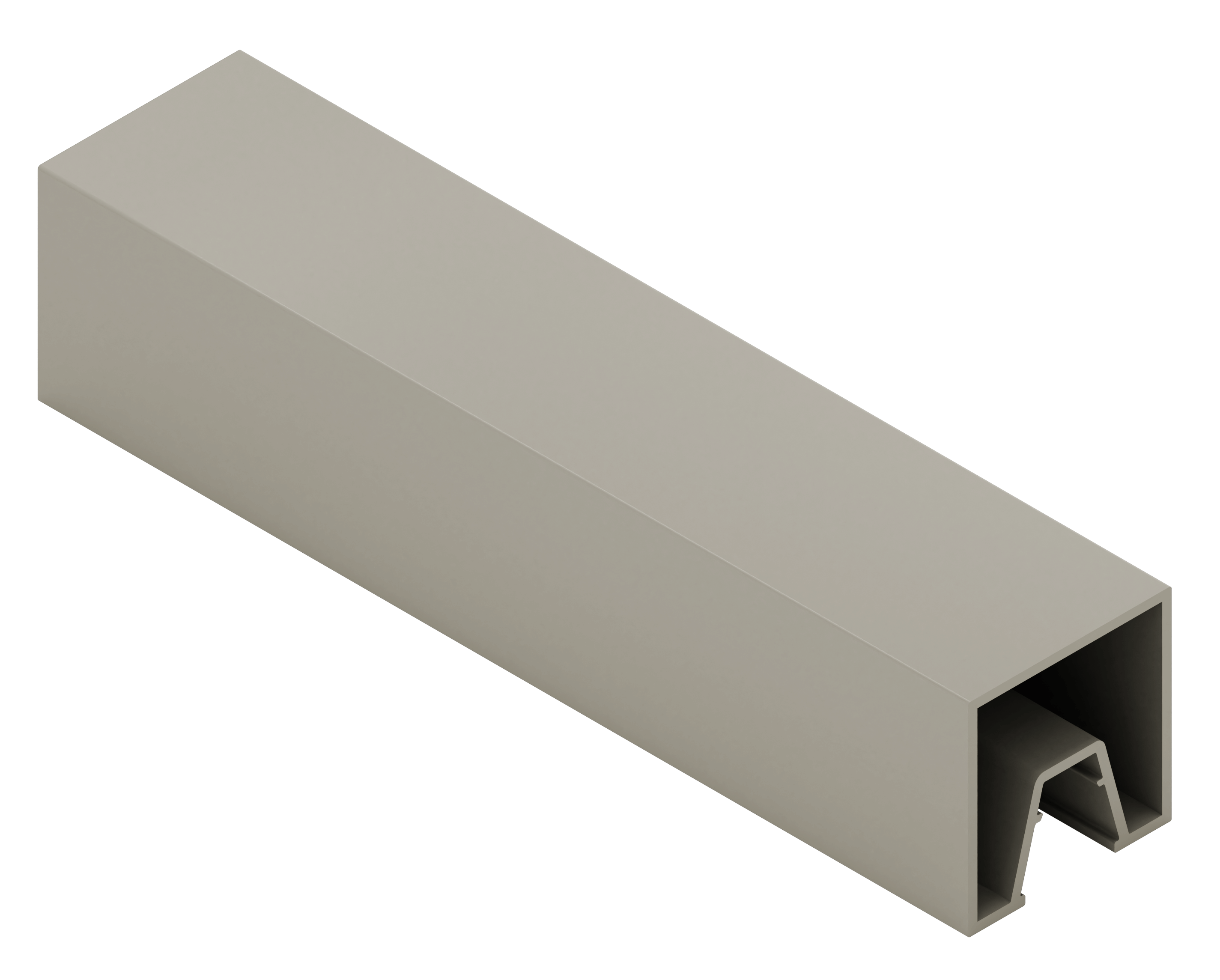

Perimeter Trim x 4.8M Dune
SKU
454953
Use
Fixes to Universal Base Clip around windows and openings to create a decorative feature
Selling Unit
Each
Product name

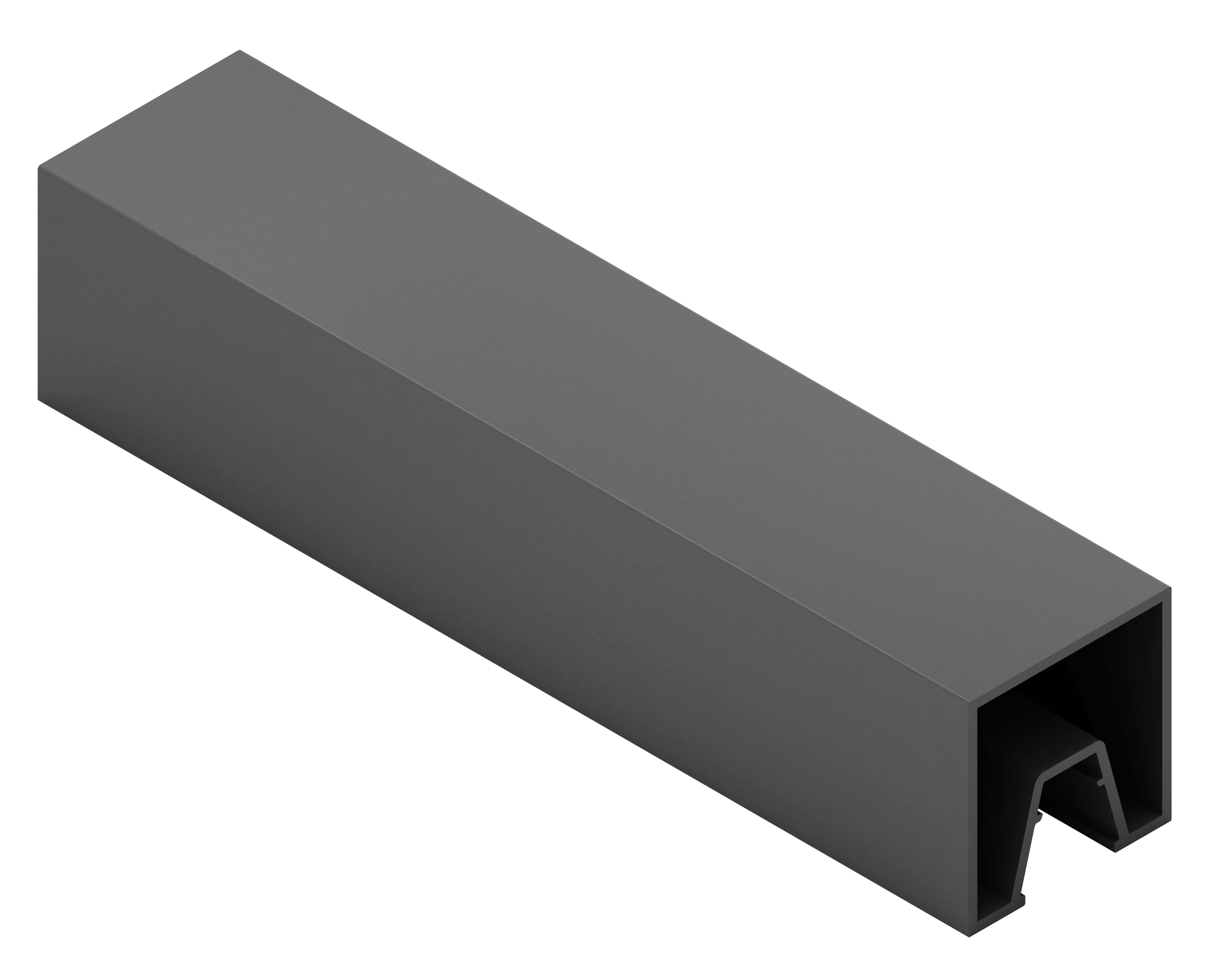

Perimeter Trim x 4.8M Basalt
SKU
454954
Use
Fixes to Universal Base Clip around windows and openings to create a decorative feature
Selling Unit
Each
Product name
Perimeter Trim x 4.8M Monument
SKU
454955
Use
Fixes to Universal Base Clip around windows and openings to create a decorative feature
Selling Unit
Each
Product name
Perimeter Trim x 3.0M Dune
SKU
454961
Use
Fixes to Universal Base Clip around windows and openings to create a decorative feature
Selling Unit
Each
Product name
Perimeter Trim x 3.0M Basalt
SKU
454962
Use
Fixes to Universal Base Clip around windows and openings to create a decorative feature
Selling Unit
Each
Product name
Perimeter Trim x 3.0M Monument
SKU
454963
Use
Fixes to Universal Base Clip around windows and openings to create a decorative feature
Selling Unit
Each
Product name
Trapezoidal Profile x 4.8M Dune
SKU
454969
Use
Fixes to Universal Base Clip to create decorative facade feature
Selling Unit
Each
Product name

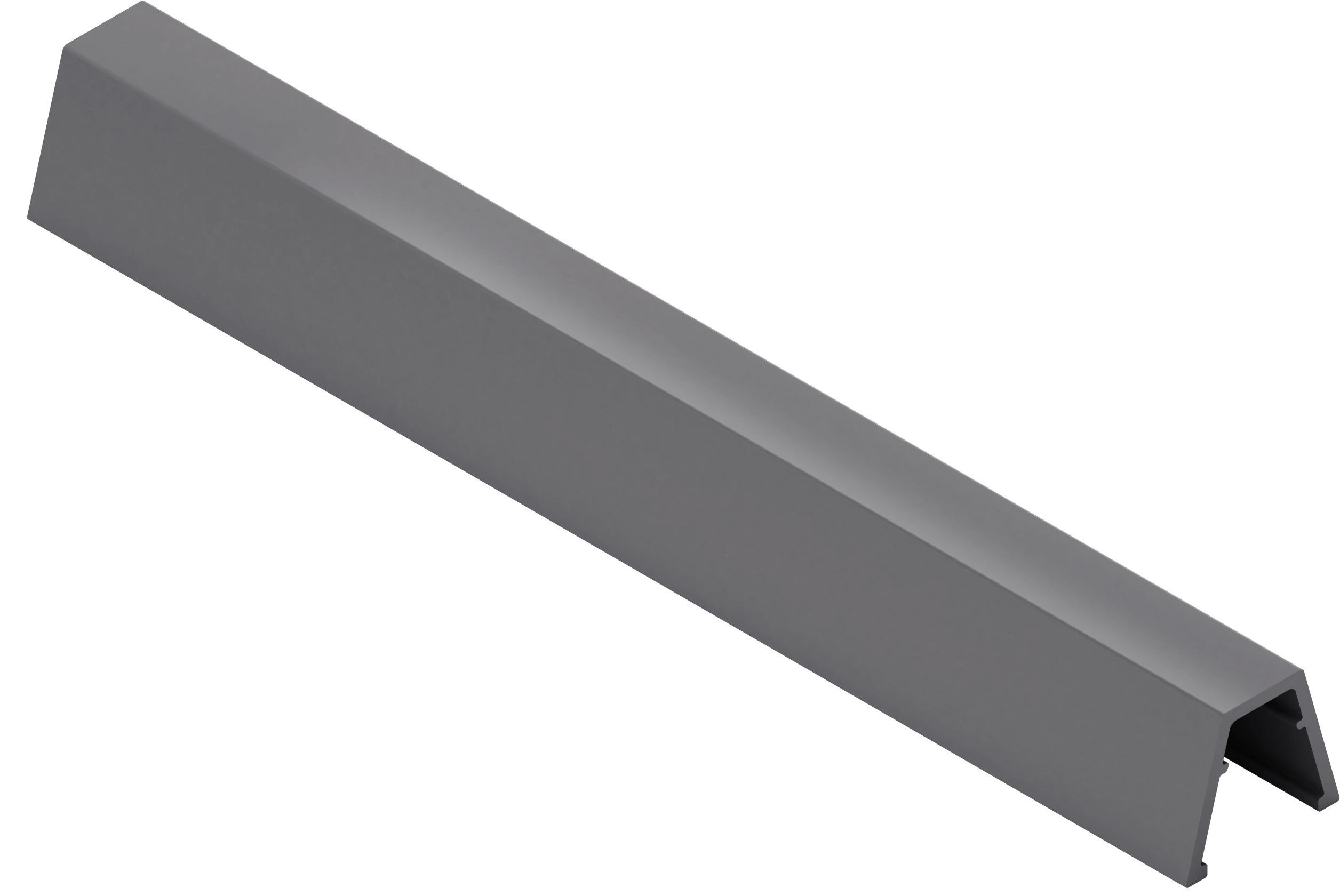

Trapezoidal Profile x 4.8M Basalt
SKU
454970
Use
Fixes to Universal Base Clip to create decorative facade feature
Selling Unit
Each
Product name

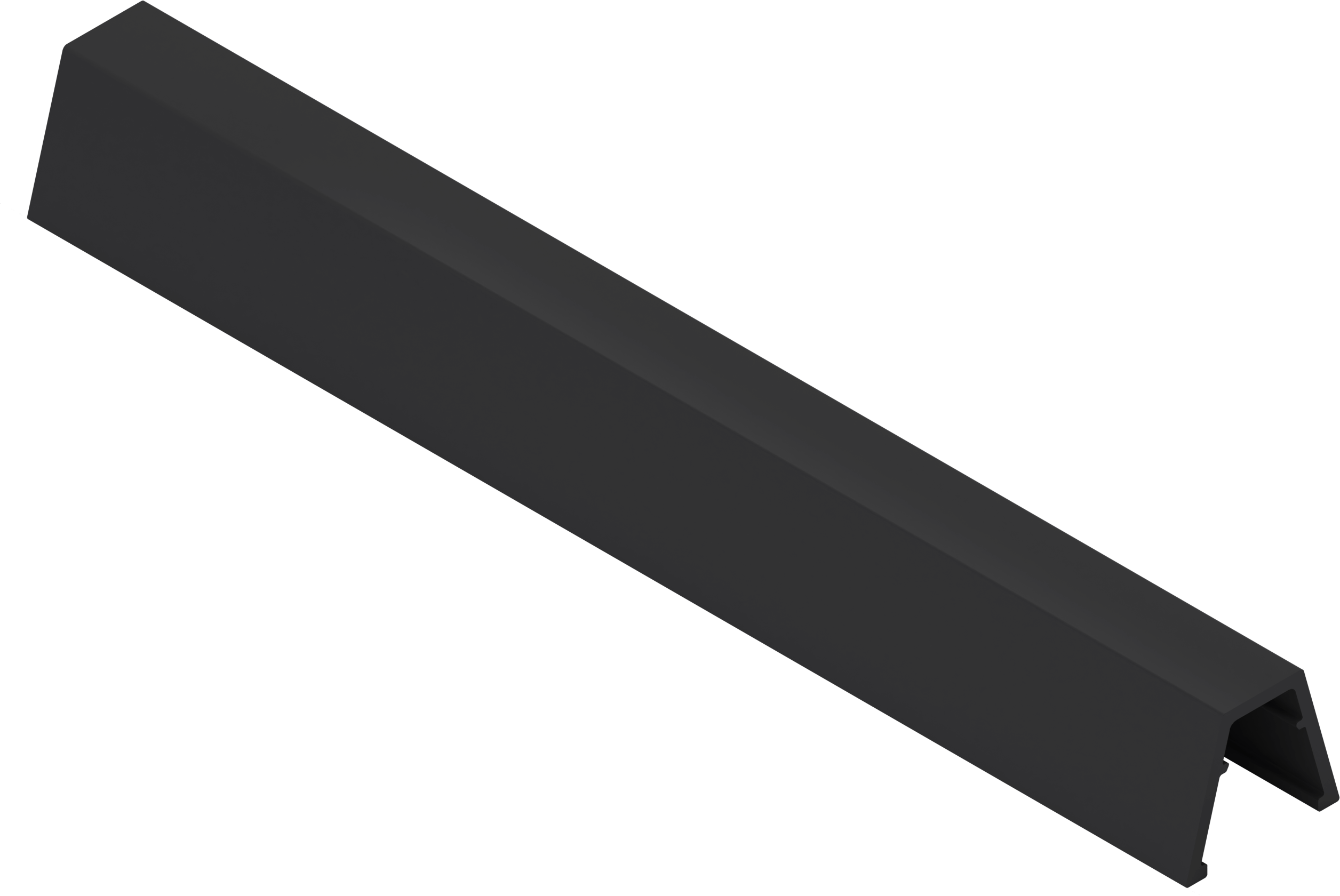

Trapezoidal Profile x 4.8M Monument
SKU
454971
Use
Fixes to Universal Base Clip to create decorative facade feature
Selling Unit
Each
Product name

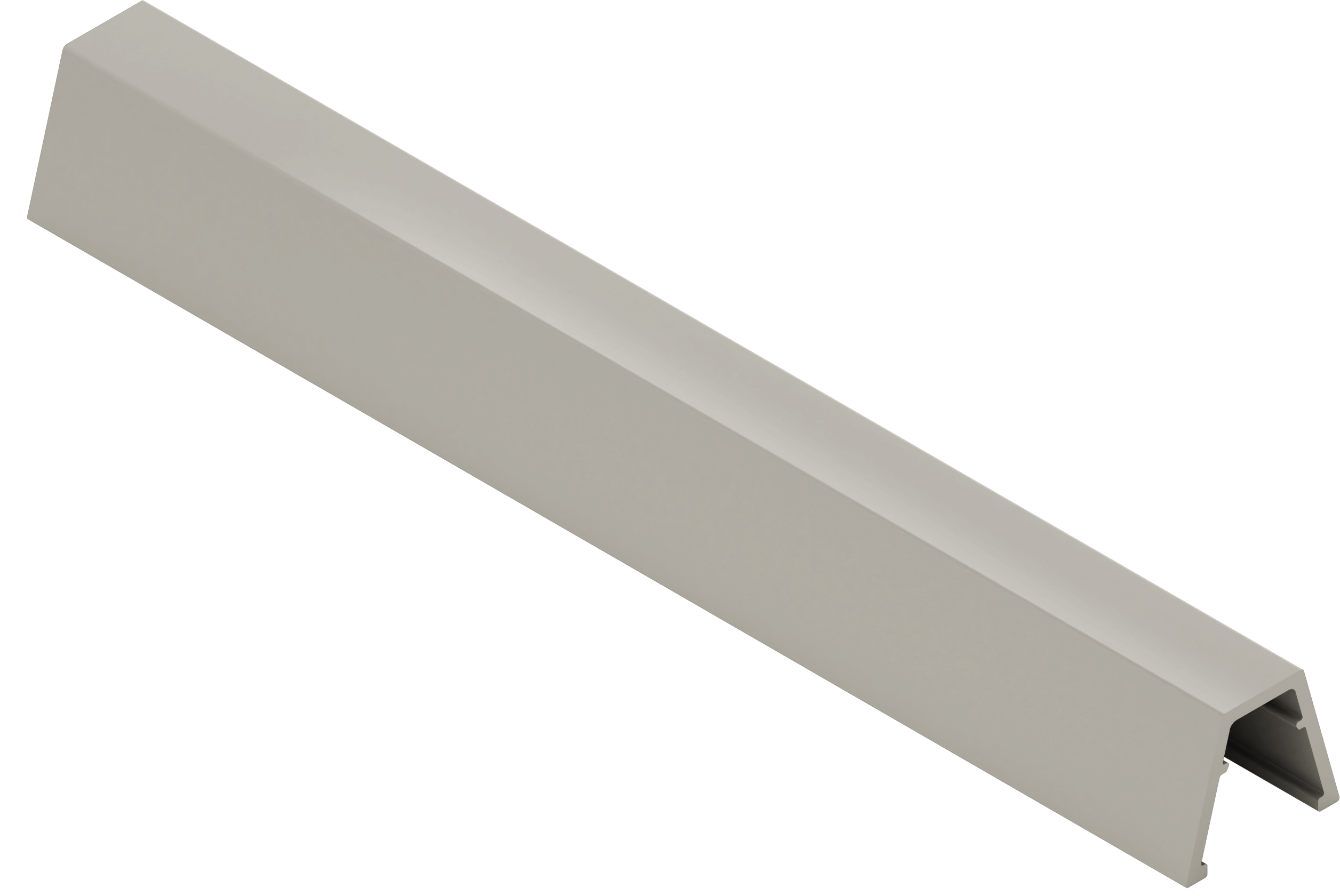

Trapezoidal Profile x 3.0M Dune
SKU
454977
Use
Fixes to Universal Base Clip to create decorative facade feature
Selling Unit
Each
Product name
Trapezoidal Profile x 3.0M Basalt
SKU
454978
Use
Fixes to Universal Base Clip to create decorative facade feature
Selling Unit
Each
Product name
Trapezoidal Profile x 3.0M Monument
SKU
454979
Use
Fixes to Universal Base Clip to create decorative facade feature
Selling Unit
Each
Product name
Bullnose Profile x 4.8M Dune
SKU
454985
Use
Fixes to Universal Base Clip to create decorative facade feature
Selling Unit
Each
Product name

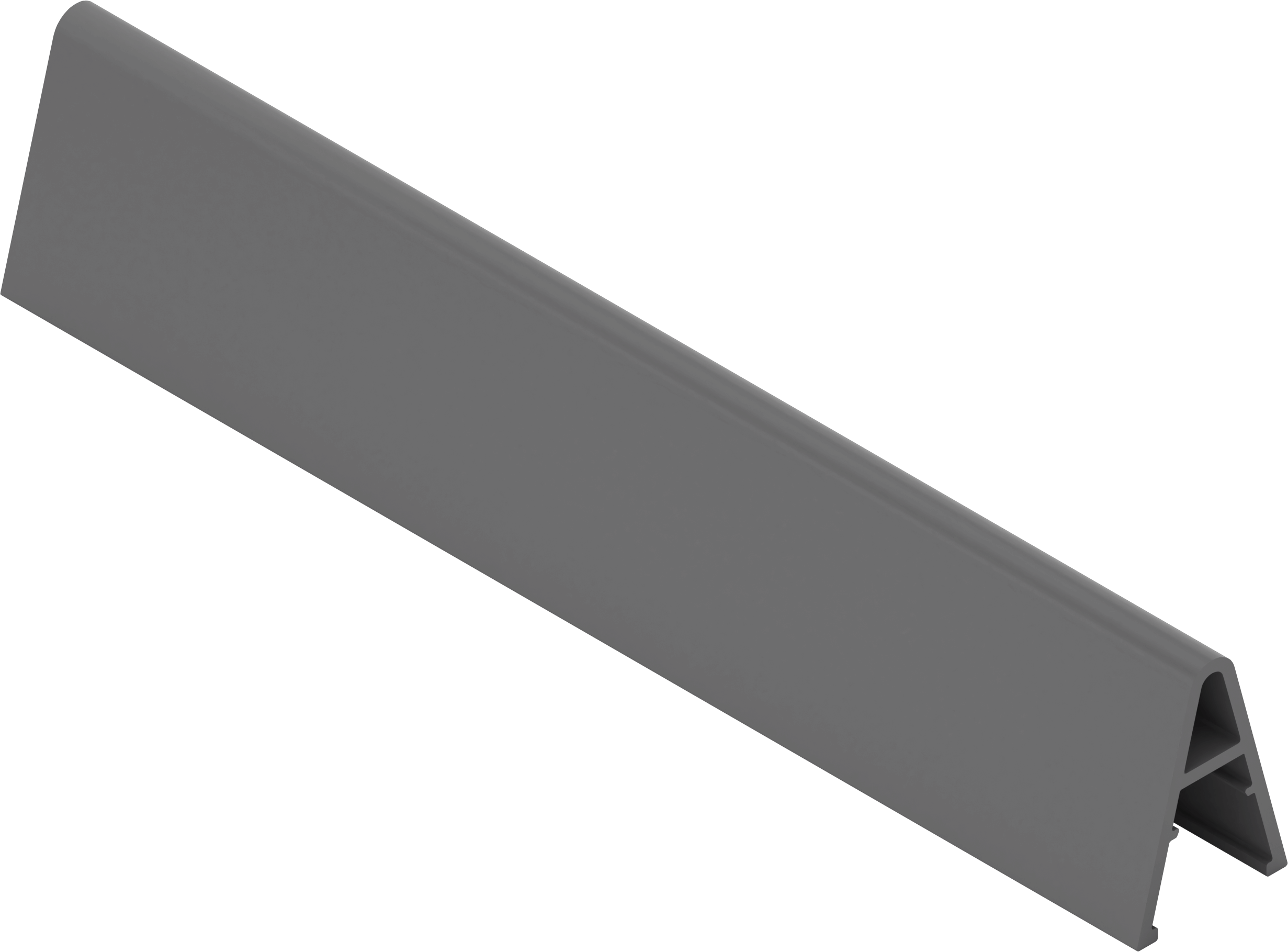

Bullnose Profile x 4.8M Basalt
SKU
454986
Use
Fixes to Universal Base Clip to create decorative facade feature
Selling Unit
Each
Product name

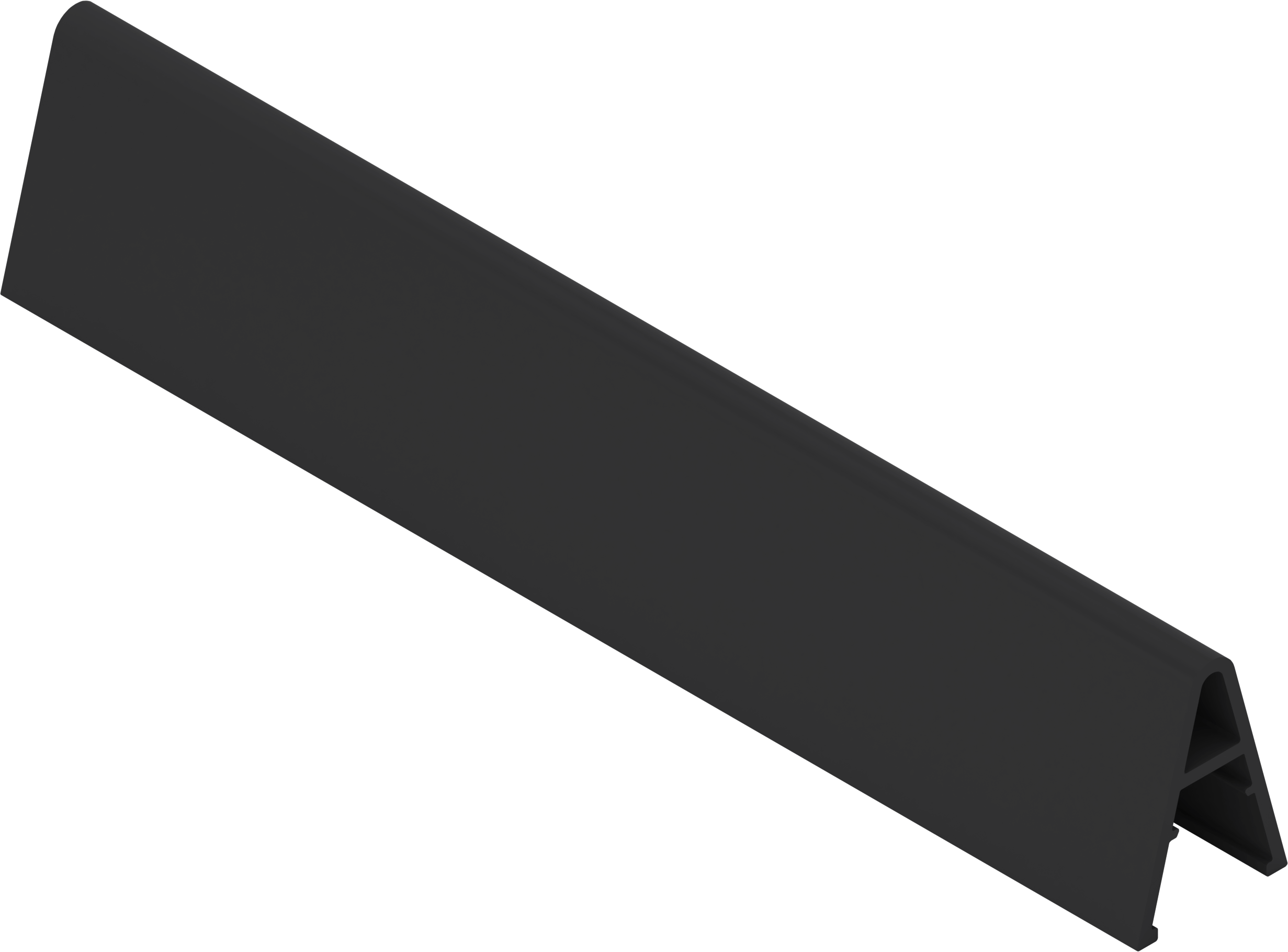

Bullnose Profile x 4.8M Monument
SKU
454987
Use
Fixes to Universal Base Clip to create decorative facade feature
Selling Unit
Each
Product name
Bullnose Profile x 3.0M Dune
SKU
454993
Use
Fixes to Universal Base Clip to create decorative facade feature
Selling Unit
Each
Product name
Bullnose Profile x 3.0M Basalt
SKU
454994
Use
Fixes to Universal Base Clip to create decorative facade feature
Selling Unit
Each
Product name
Bullnose Profile x 3.0M Monument
SKU
454995
Use
Fixes to Universal Base Clip to create decorative facade feature
Selling Unit
Each
Product name

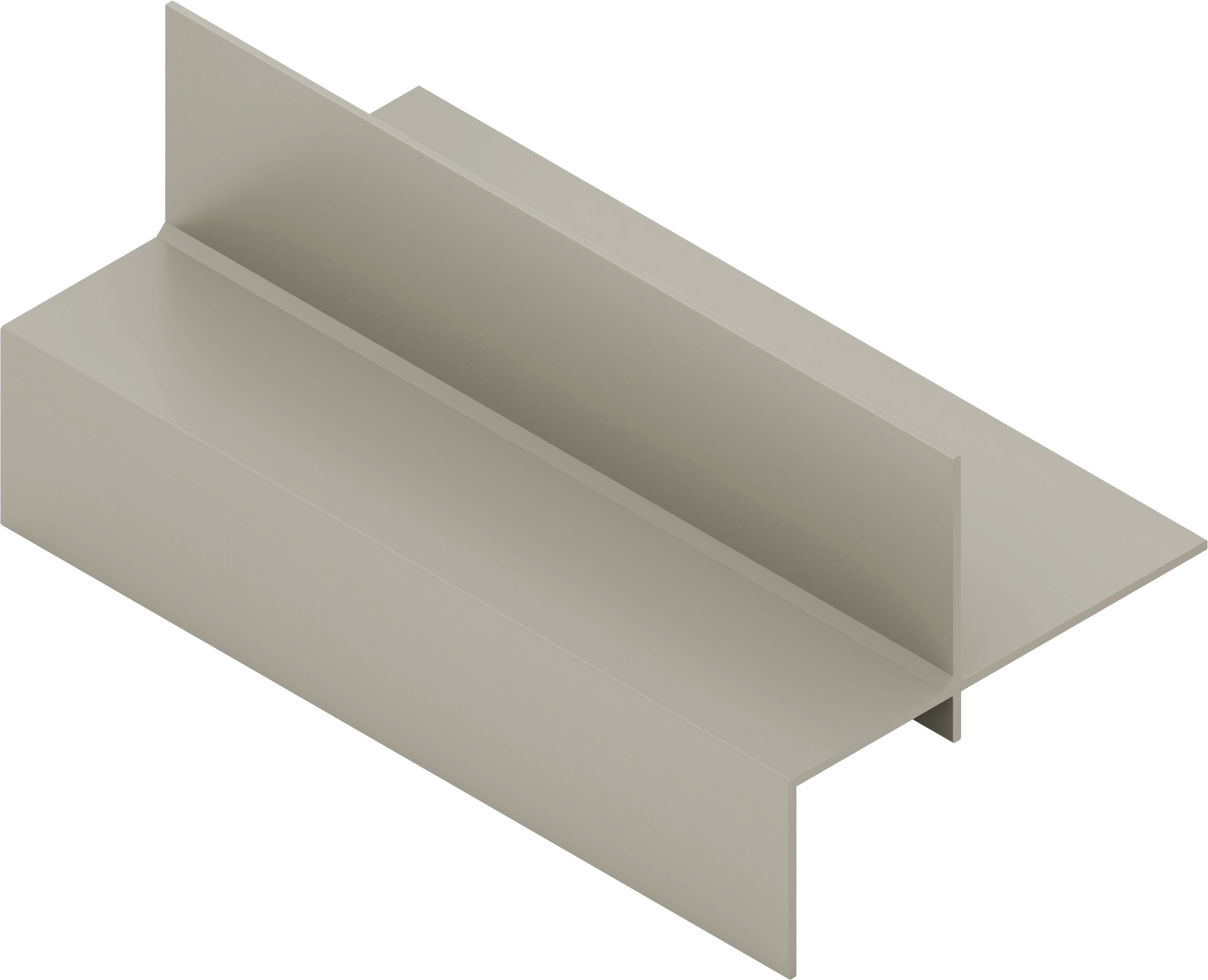

Parapet Trim x 4.8M Dune
SKU
455001
Use
Joins Parapet Perimeter Trims at external corners
Selling Unit
Each
Product name

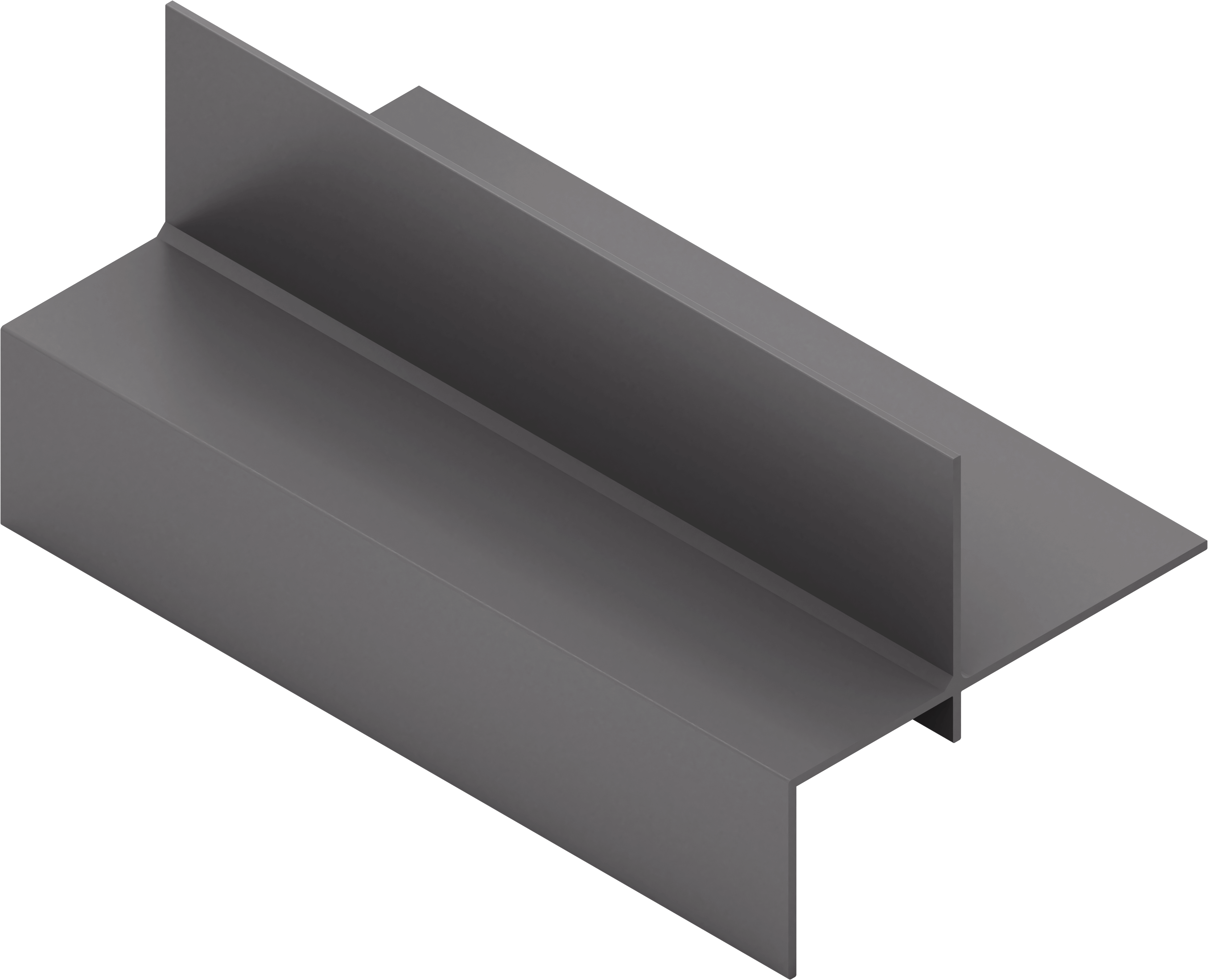

Parapet Trim x 4.8M Basalt
SKU
455002
Use
Joins Parapet Perimeter Trims at external corners
Selling Unit
Each
Product name
Parapet Trim x 4.8M Monument
SKU
455003
Use
Joins Parapet Perimeter Trims at external corners
Selling Unit
Each
Product name
Parapet Trim x 3.0M Dune
SKU
455005
Use
Joins Parapet Perimeter Trims at external corners
Selling Unit
Each
Product name
Parapet Trim x 3.0M Basalt
SKU
455006
Use
Joins Parapet Perimeter Trims at external corners
Selling Unit
Each
Product name
Parapet Trim x 3.0M Monument
SKU
455007
Use
Joins Parapet Perimeter Trims at external corners
Selling Unit
Each
Product name
Cantilevered Panel Base Angle x 4.8m Dune
SKU
455013
Use
Provides a finish to underside of suspended Hebel panel
Selling Unit
Each
Product name

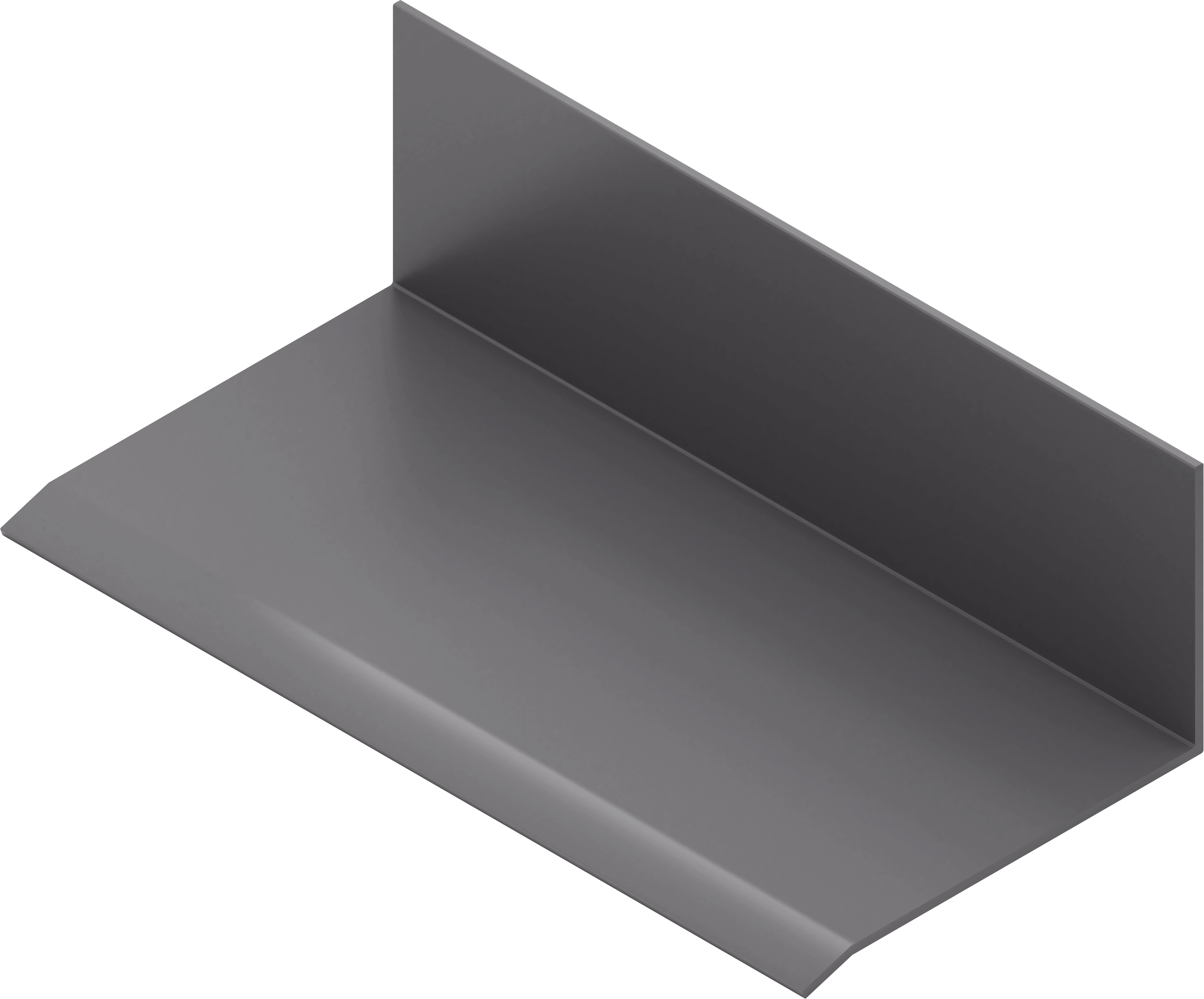

Cantilevered Panel Base Angle x 4.8m Basalt
SKU
455014
Use
Provides a finish to underside of suspended Hebel panel
Selling Unit
Each
Product name

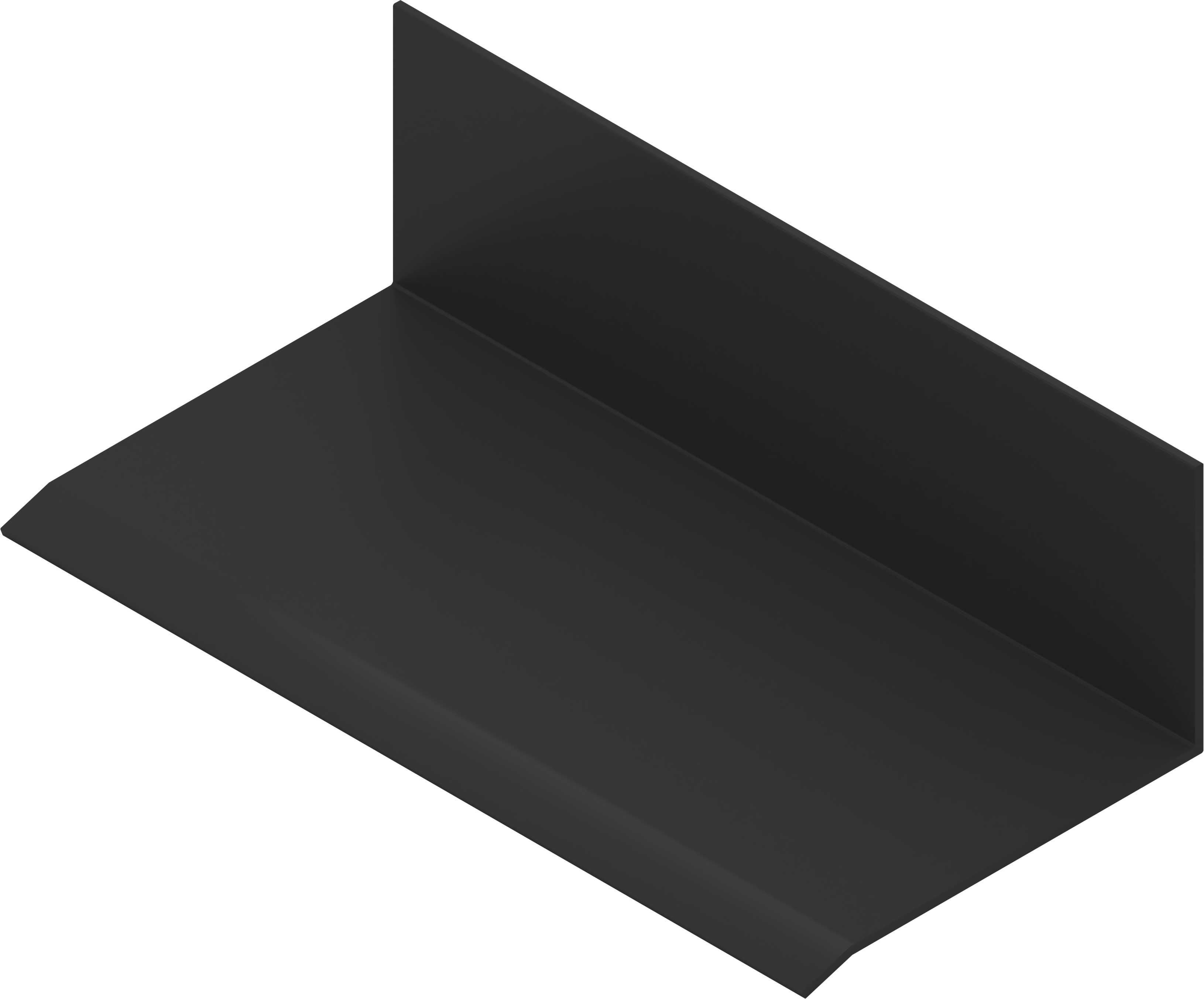

Cantilevered Panel Base Angle x 4.8m Monument
SKU
455015
Use
Provides a finish to underside of suspended Hebel panel
Selling Unit
Each
Product name

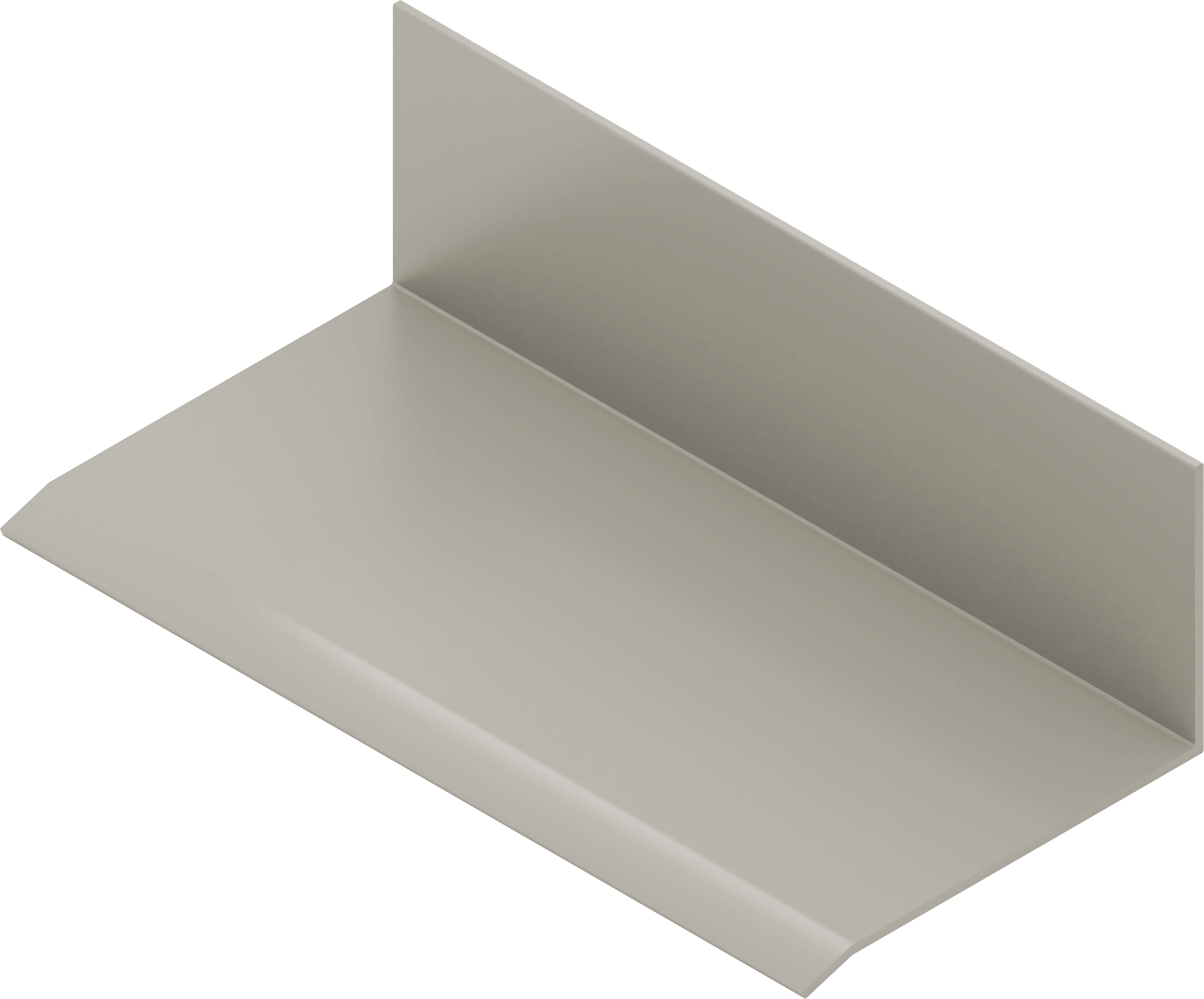

Cantilevered Panel Base Angle x 3.0m Dune
SKU
455017
Use
Provides a finish to underside of suspended Hebel panel
Selling Unit
Each
Product name
Cantilevered Panel Base Angle x 3.0m Basalt
SKU
455018
Use
Provides a finish to underside of suspended Hebel panel
Selling Unit
Each
Product name
Cantilevered Panel Base Angle x 3.0m Monument
SKU
455019
Use
Provides a finish to underside of suspended Hebel panel
Selling Unit
Each
Product name

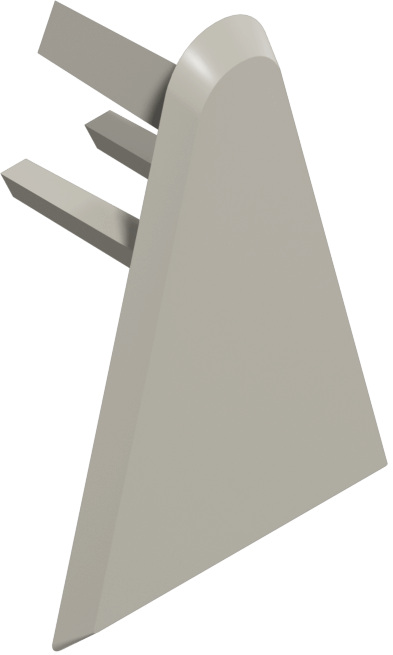

Bullnose Profile End Cap Dune
SKU
455021
Use
Fits over end of Bullnose Profile
Selling Unit
Each
Product name
Bullnose Profile End Cap Basalt
SKU
455022
Use
Fits over end of Bullnose Profile
Selling Unit
Each
Product name

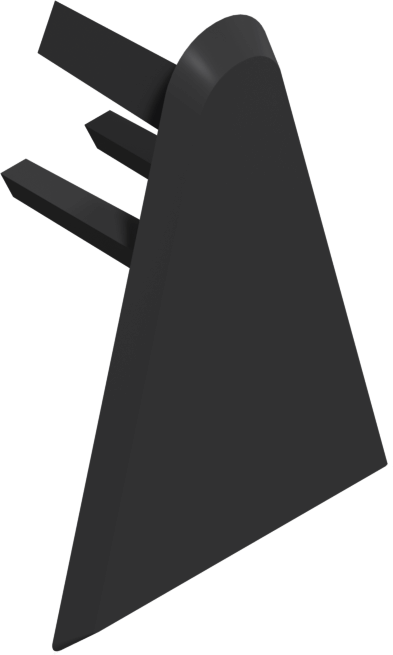

Bullnose Profile End Cap Monument
SKU
455023
Use
Fits over end of Bullnose Profile
Selling Unit
Each
Product name
Perimeter Corner Joiner – Vertical Dune
SKU
455025
Use
Joins Perimeter Trims at vertical corners
Selling Unit
Each
Product name

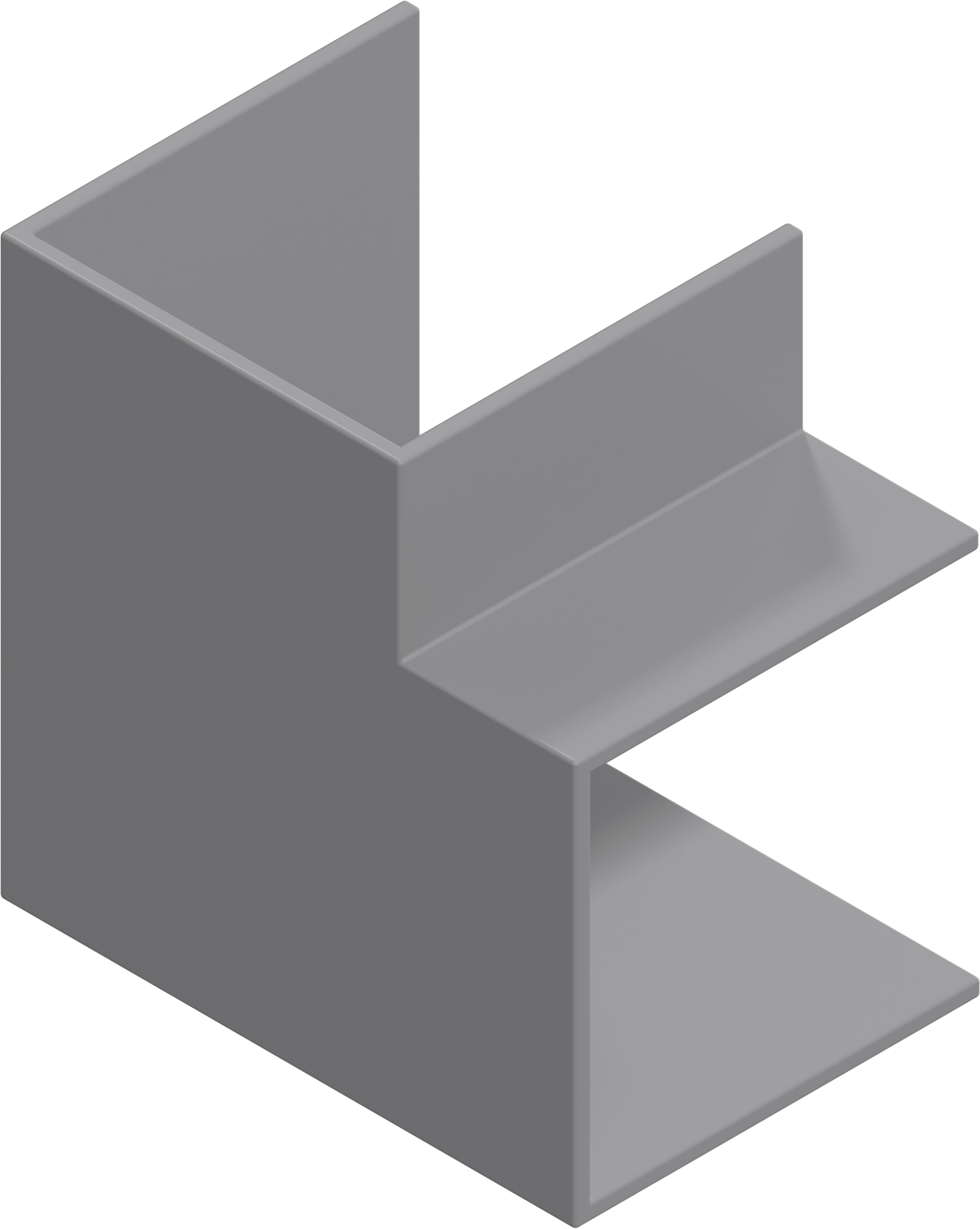

Perimeter Corner Joiner- Vertical Basalt
SKU
455026
Use
Joins Perimeter Trims at vertical corners
Selling Unit
Each
Product name
Perimeter Corner Joiner – Vertical Monu
SKU
455027
Use
Joins Perimeter Trims at vertical corners
Selling Unit
Each
Product name
Perimeter Corner Joiner – Horizon Dune
SKU
455029
Use
Joins Perimeter Trims at horizontal corners
Selling Unit
Each
Product name

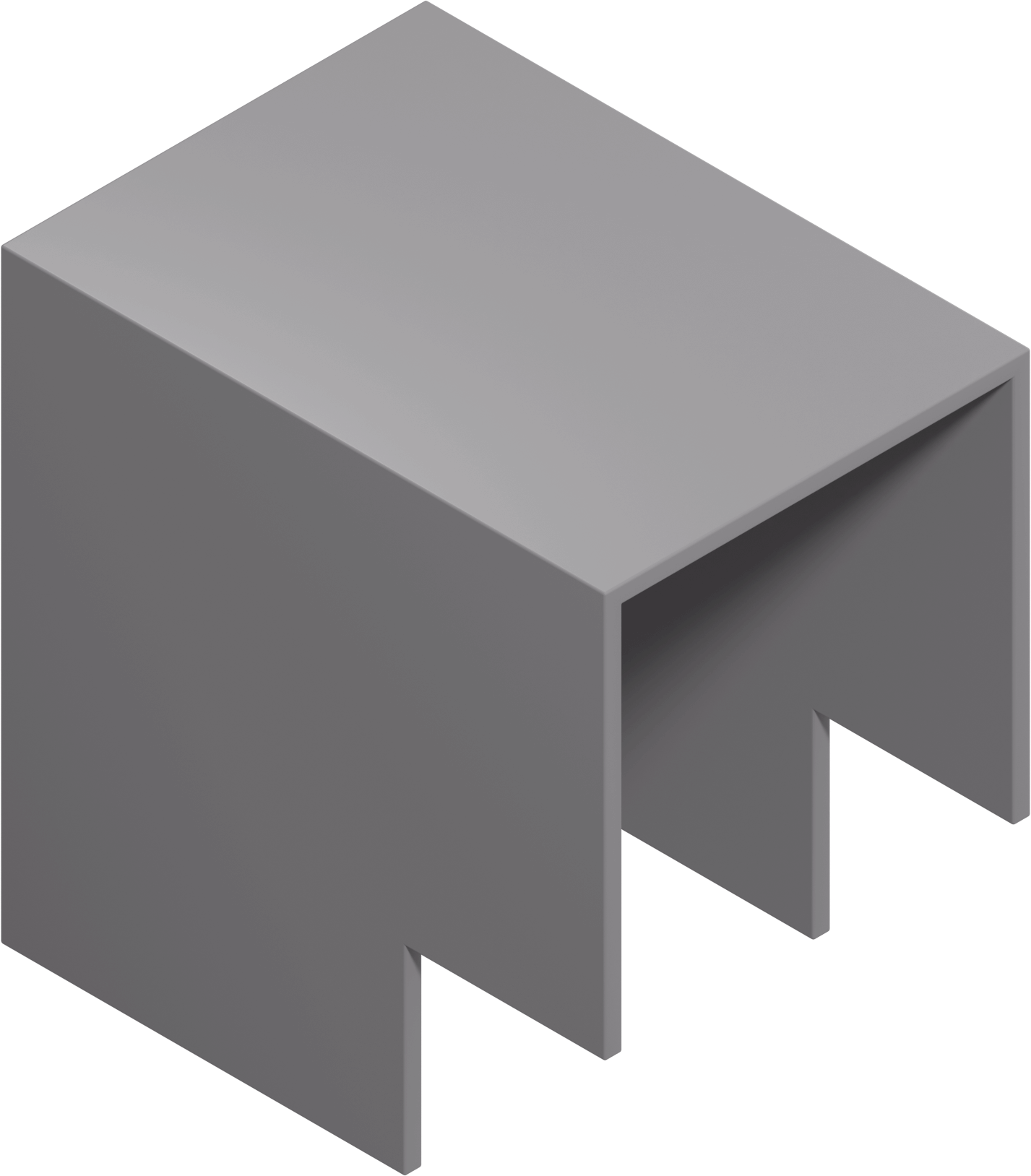

Perimeter Corner Joiner – Horizon Basalt
SKU
455030
Use
Joins Perimeter Trims at horizontal corners
Selling Unit
Each
Product name
Perimeter Corner Joiner – Horizon Monu
SKU
455031
Use
Joins Perimeter Trims at horizontal corners
Selling Unit
Each
Product name

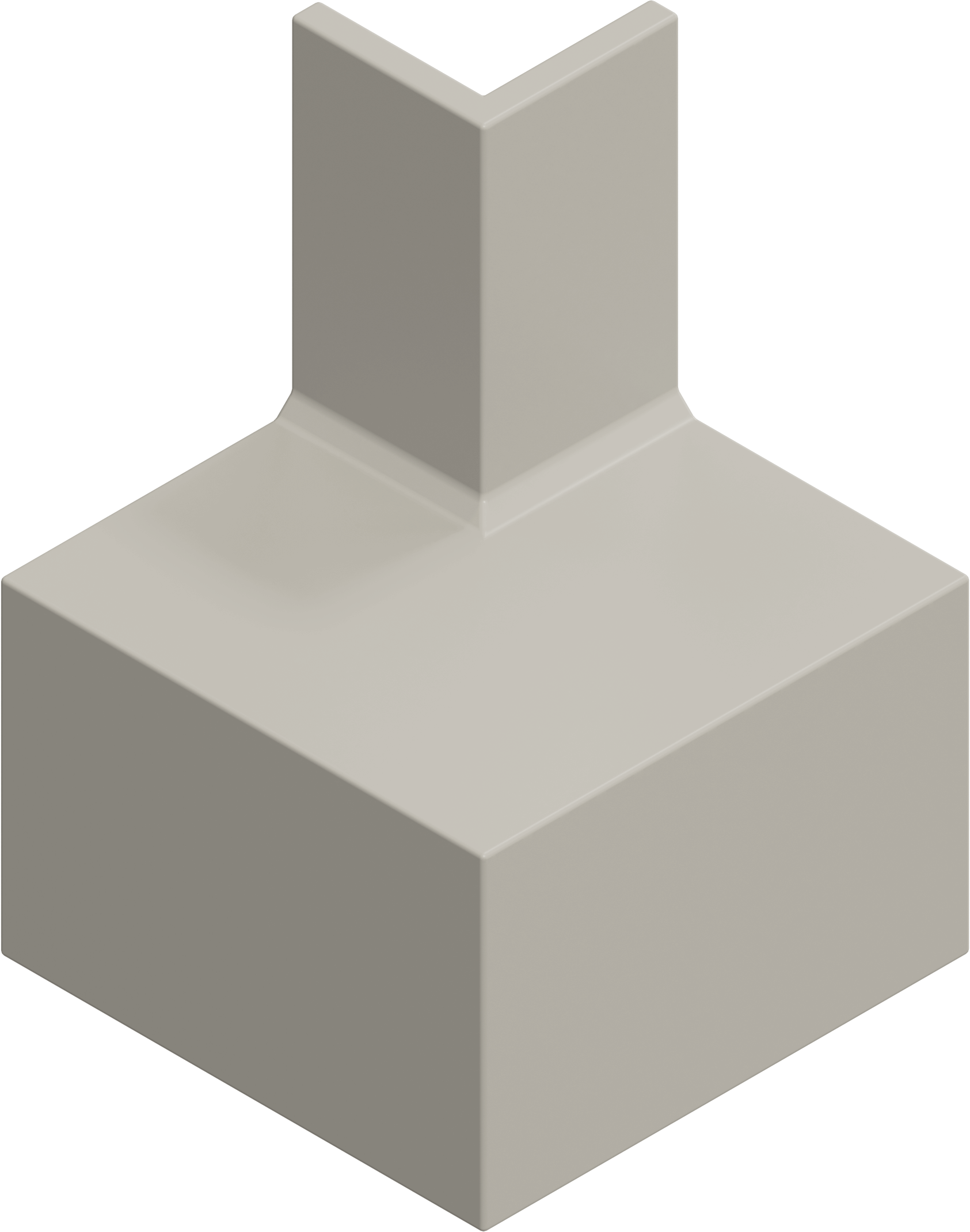

Parapet External Corner Joiner Dune
SKU
455033
Use
Joins Parapet Perimeter Trims at external corners
Selling Unit
Each
Product name

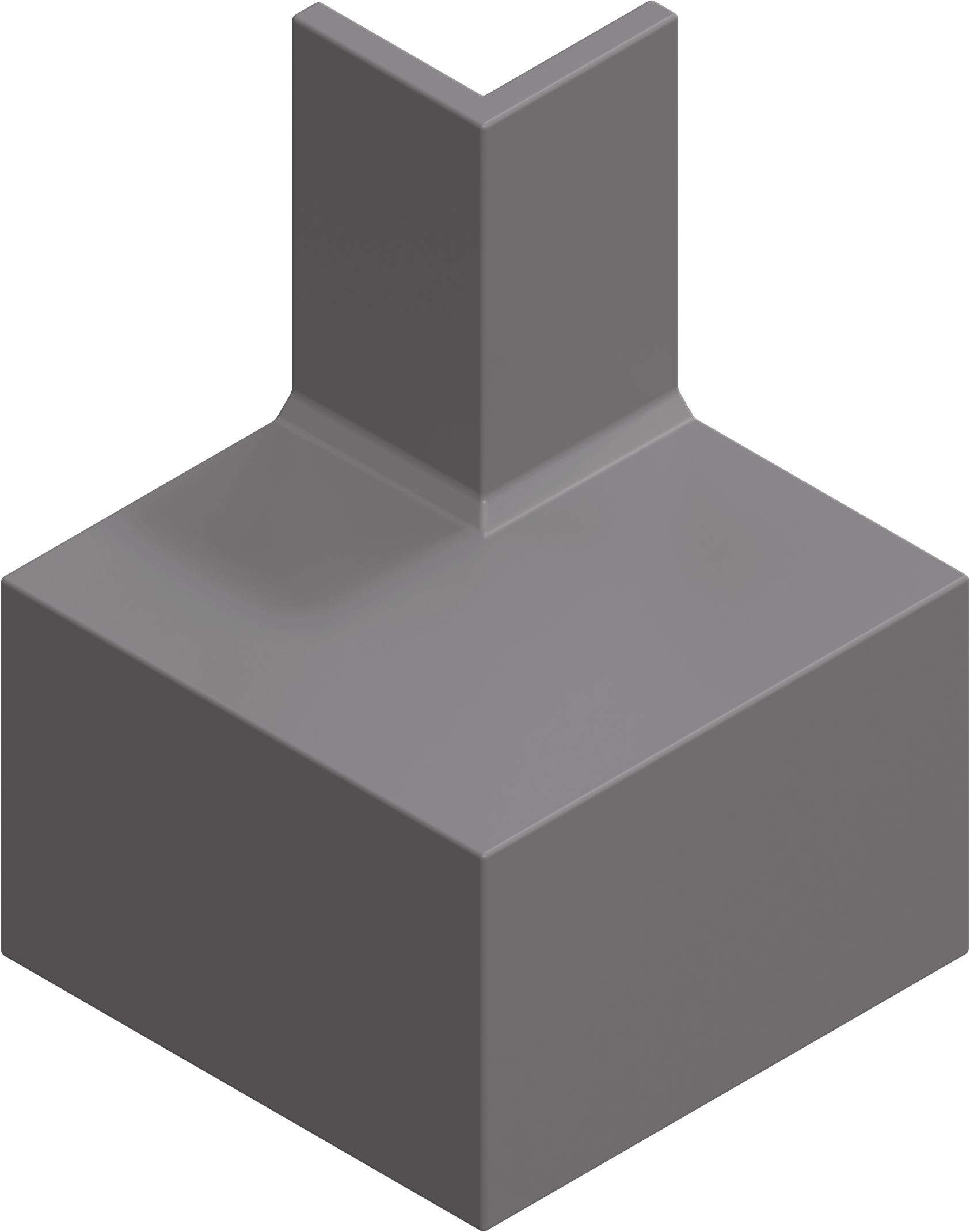

Parapet External Corner Joiner Basalt
SKU
455034
Use
Joins Parapet Perimeter Trims at external corners
Selling Unit
Each
Product name
Parapet External Corner Joiner Monument
SKU
455035
Use
Joins Parapet Perimeter Trims at external corners
Selling Unit
Each
Product name
Parapet Internal Corner Joiner Dune
SKU
455037
Use
Joins Parapet Perimeter Trims at internal corners
Selling Unit
Each
Product name
Parapet Internal Corner Joiner Basalt
SKU
455038
Use
Joins Parapet Perimeter Trims at internal corners
Selling Unit
Each
Product name

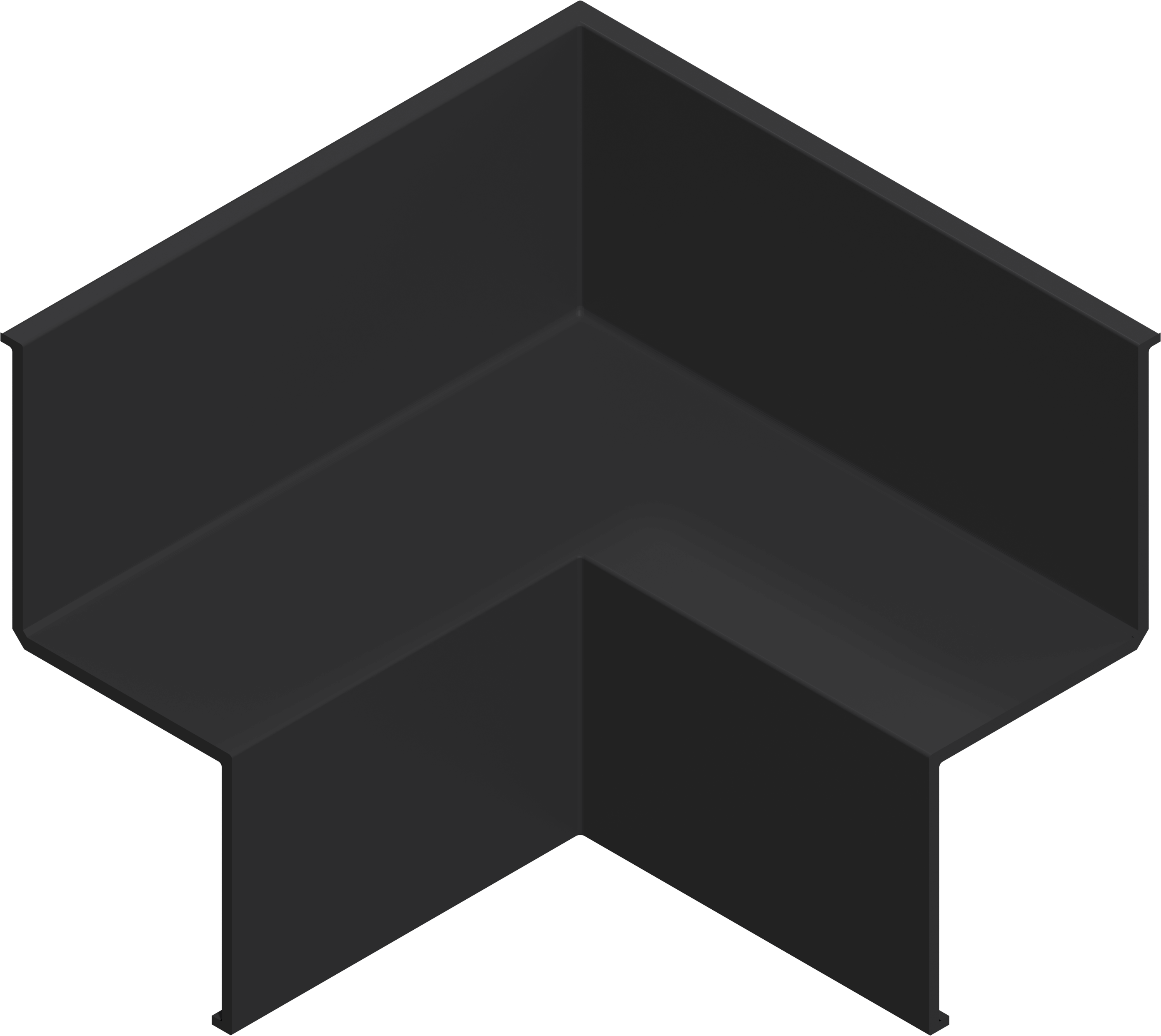

Parapet Internal Corner Joiner Monument
SKU
455039
Use
Joins Parapet Perimeter Trims at internal corners
Selling Unit
Each
Product name

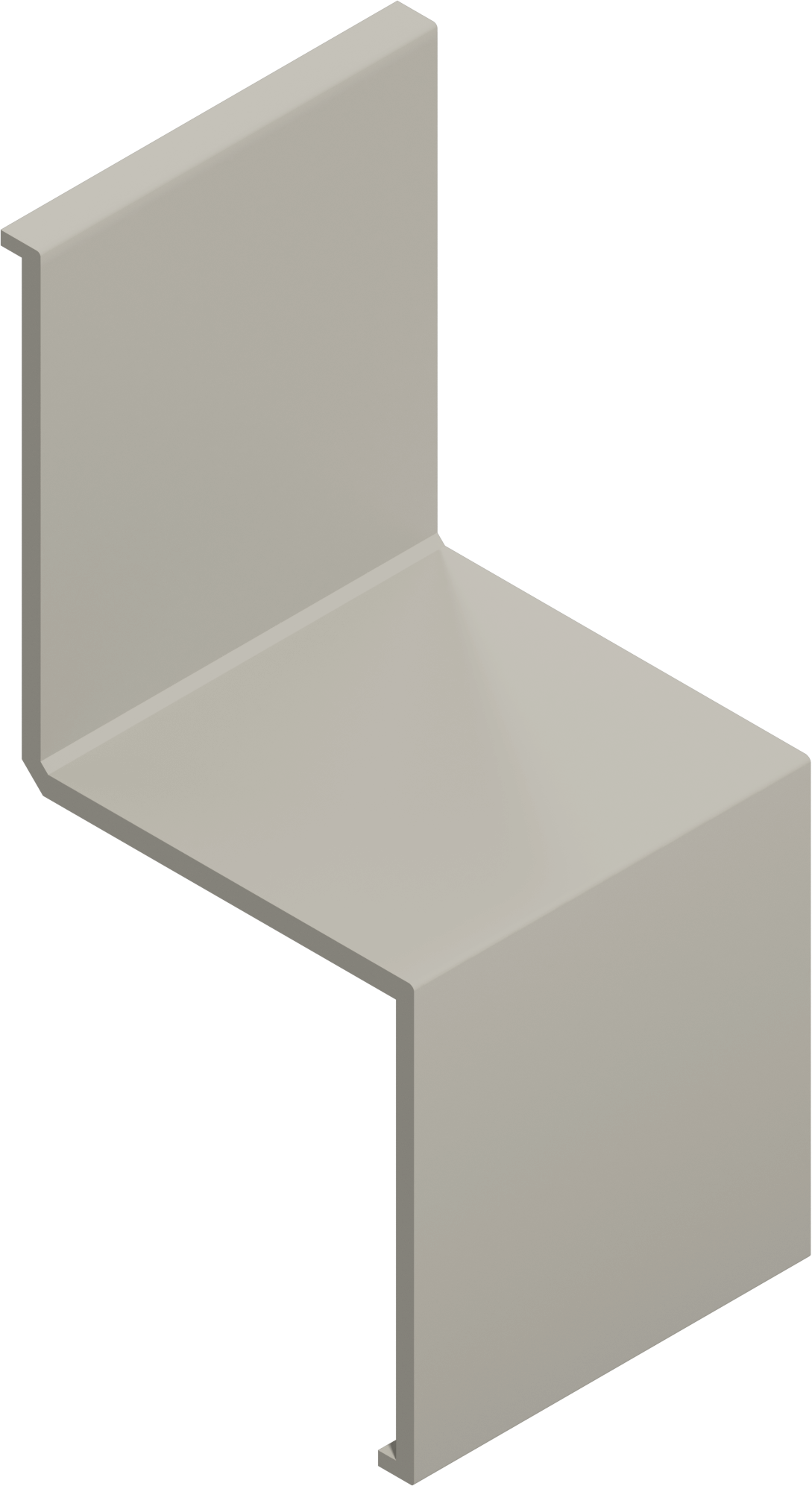

Parapet Trim Straight Joiner Dune
SKU
455041
Use
Joins Parapet Trims as required
Selling Unit
Each
Product name

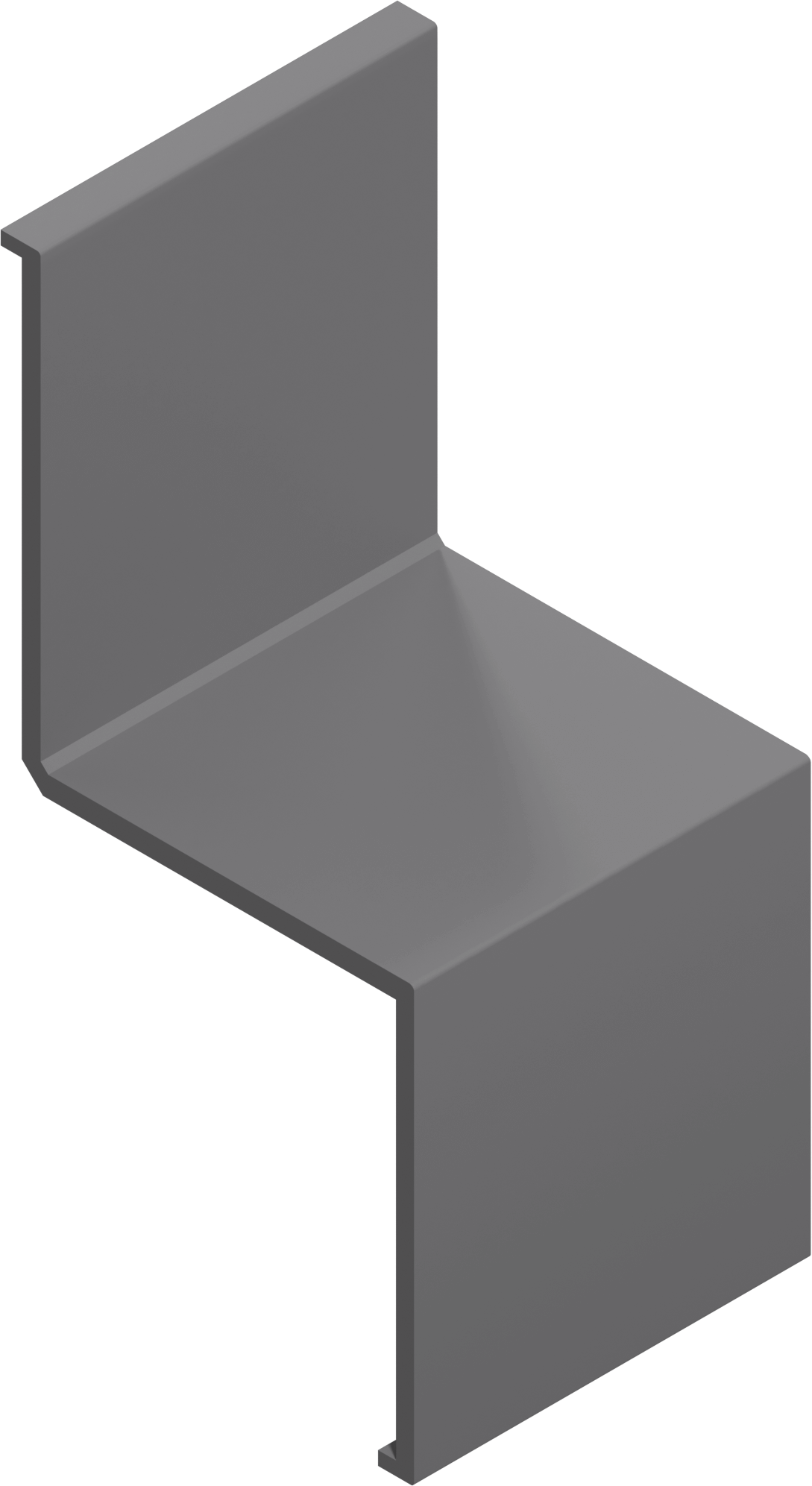

Parapet Trim Straight Joiner Basalt
SKU
455042
Use
Joins Parapet Trims as required
Selling Unit
Each
Product name

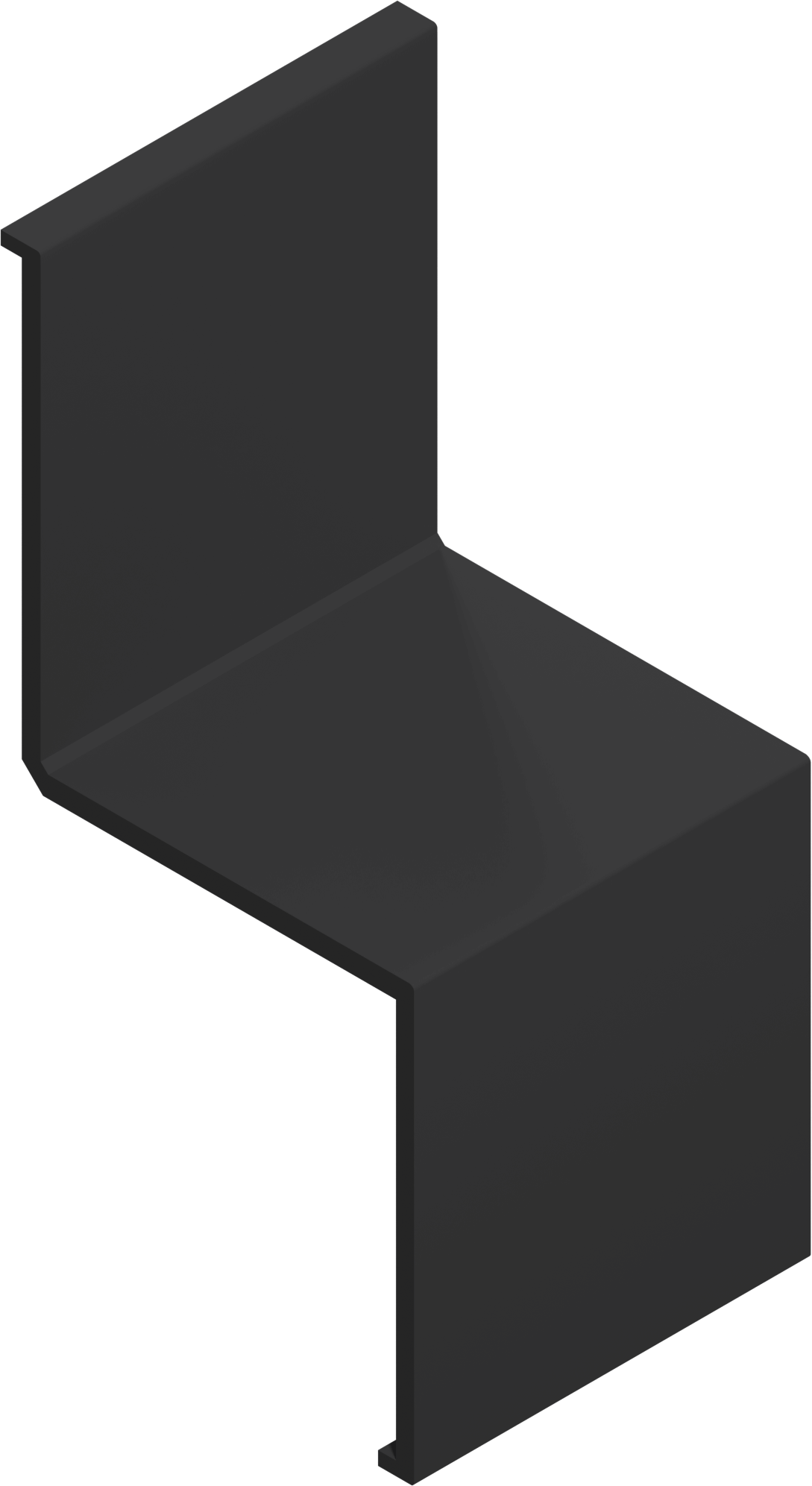

Parapet Trim Straight Joiner Monument
SKU
455043
Use
Joins Parapet Trims as required
Selling Unit
Each
Product name

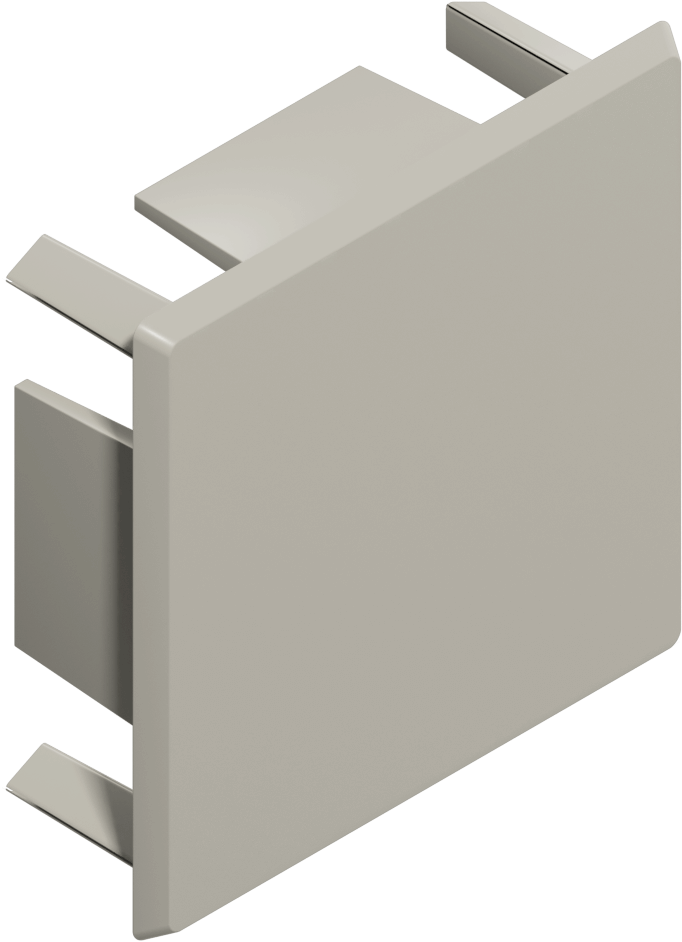

Perimeter Trim End Cap Dune
SKU
455045
Use
Fits over end of Perimeter Trim
Selling Unit
Each
Product name

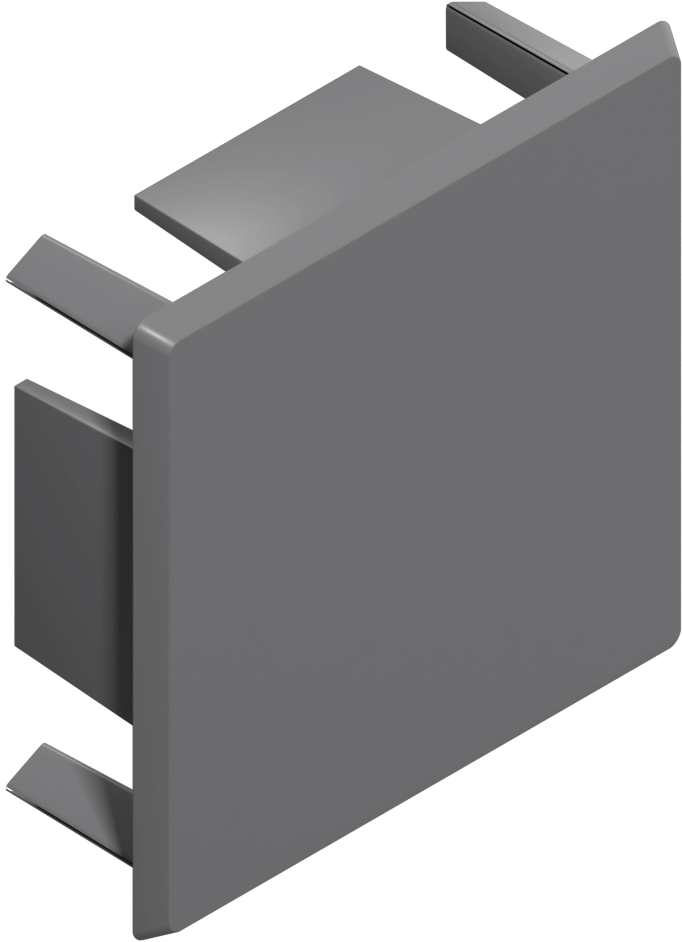

Perimeter Trim End Cap Basalt
SKU
455046
Use
Fits over end of Perimeter Trim
Selling Unit
Each
Product name

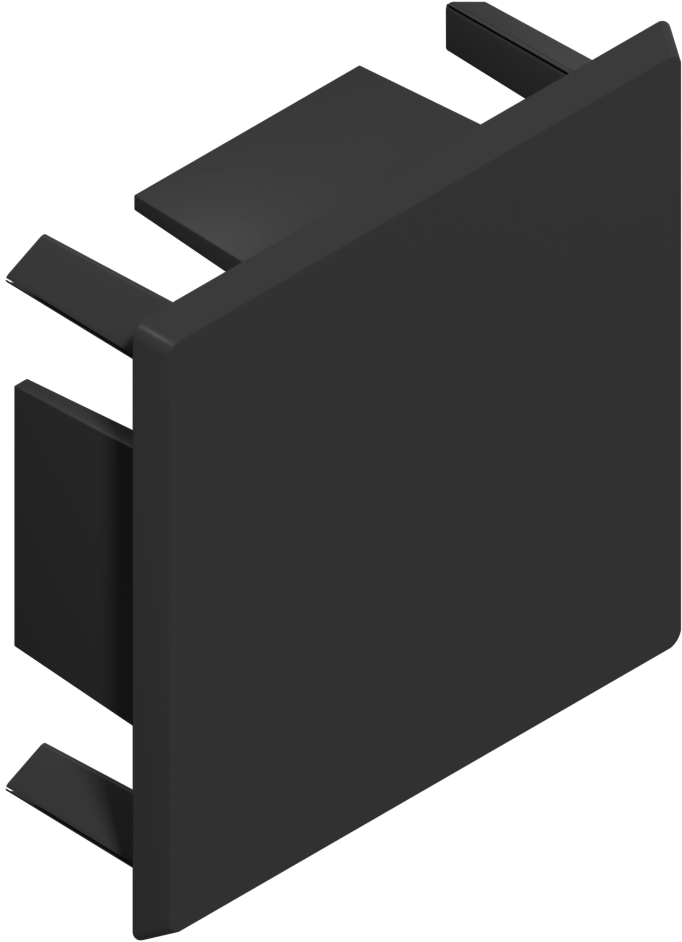

Perimeter Trim End Cap Monument
SKU
455047
Use
Fits over end of Perimeter Trim
Selling Unit
Each
Product name

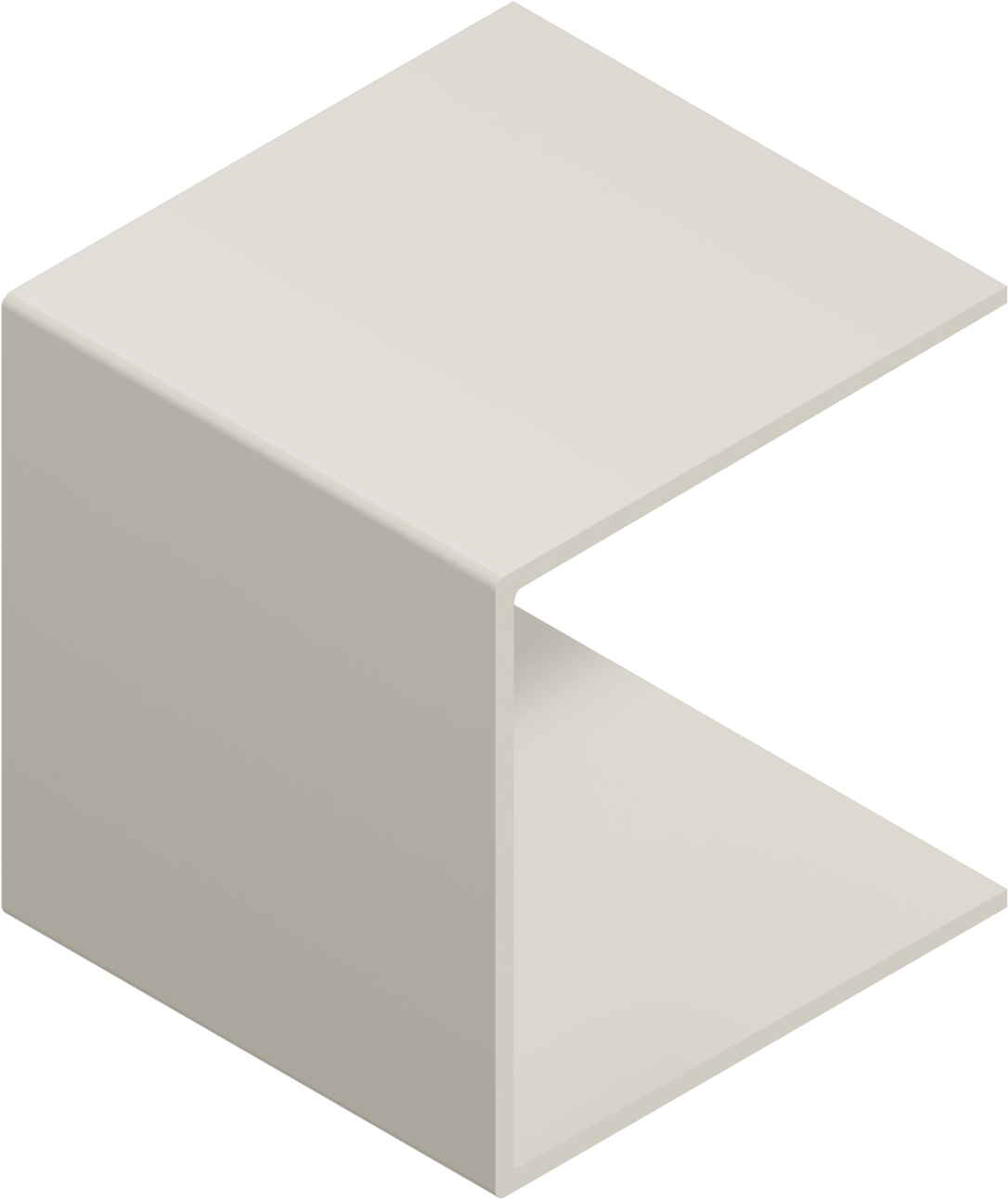

Perimeter Trim Straight Joiner Dune
SKU
455049
Use
Joins Perimeter Trims as required
Selling Unit
Each
Product name
Perimeter Trim Straight Joiner Basalt
SKU
455050
Use
Joins Perimeter Trims as required
Selling Unit
Each
Product name
Perimeter Trim Straight Joiner Monum
SKU
455051
Use
Joins Perimeter Trims as required
Selling Unit
Each
Product name

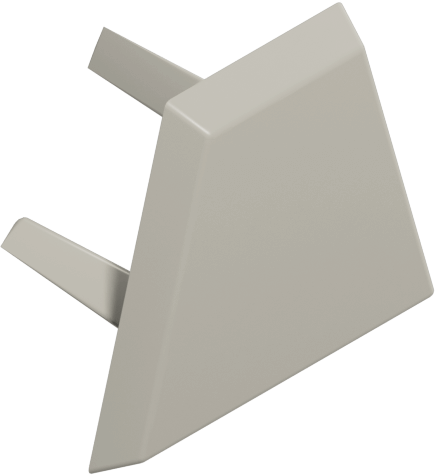

Trapezoidal End Cap Dune
SKU
455053
Use
Fits over end of Trapezoidal Profile
Selling Unit
Each
Product name
Trapezoidal End Cap Basalt
SKU
455054
Use
Fits over end of Trapezoidal Profile
Selling Unit
Each
Product name

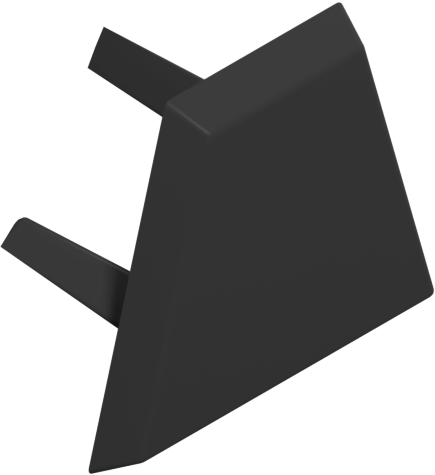

Trapezoidal End Cap Monument
SKU
455055
Use
Fits over end of Trapezoidal Profile
Selling Unit
Each
Product name

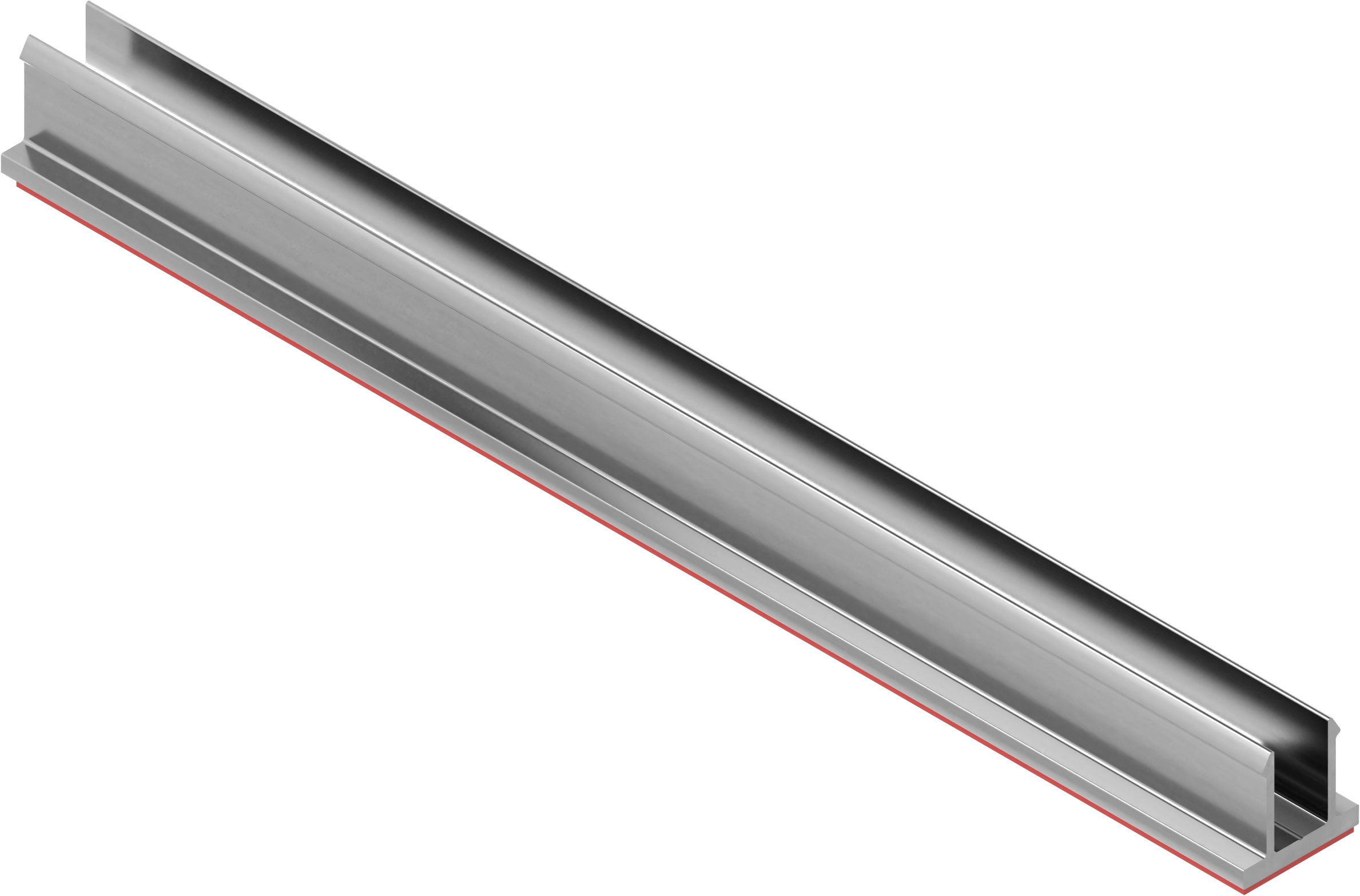

PowerProfile Universal Base Clip 3M
SKU
466627
Use
Selling Unit
Each
Adhesives, Sealants & Coatings
Product name
Hebel Adhesive
SKU
21933
Use
All systems
Selling Unit
20kg Bag
Product name
Hebel Patch
SKU
21949
Use
All systems
Selling Unit
10kg Bag
Product name
Hebel Anti – Corrosion Paint
SKU
25594
Use
Used to coat exposed reo
Selling Unit
500mL Container
Product name
Hebel Base Sealer
SKU
111161
Use
Waterproofing for residential
Selling Unit
5L Pail
Product name
CSR Fireseal – Fire & Accoustic Sealant
SKU
122116
Use
All systems
Selling Unit
Box of 12
Product name
Fireseal Damperstrips 750mm x 225mm x 13mm
SKU
182233
Use
Horizontal control joint
Selling Unit
Each
Product name
Fireseal Party Wall Sealer 4000mm x 300mm x 50mm
SKU
193379
Use
Sealer used between panel to roof / wall cavities
Selling Unit
Pack of 2
Brackets, Angles & Trim
Product name
Slotted Angle 75mm x 50mm x 2.7m x 1.15 BMT
SKU
21957
Use
Head support angle
Selling Unit
Each
Hand Tools
Product name
Levelling Plane
SKU
21892
Use
Levelling Hebel
Selling Unit
Each
Product name
Powerpanel Lifters 16mm
SKU
21901
Use
Handling system for PowerPanel
Selling Unit
Pack of 2
Product name
Powerpanel Trolley 2.4-2.7 Panels
SKU
21903
Use
Handling system for PowerPanel
Selling Unit
Each
Product name
Powerpanel Trolley 2.9-3.35 Panels
SKU
21904
Use
Handling system for PowerPanel
Selling Unit
Each
Product name
Sanding Float
SKU
21912
Use
All systems
Selling Unit
Each
Product name
Panel Separator Kit
SKU
119426
Use
All systems
Selling Unit
Each
Product name
Installer Power Panel Trolley
SKU
130324
Use
Handling system for PowerPanel
Selling Unit
Each
Product name
2 Wheel Panel Mover
SKU
162645
Use
Handling system for PowerPanel
Selling Unit
Each
Screws
Product name
Screw 14-10 x 65 Hex Head
SKU
21900
Use
Internal fix of PowerPanel to top hat
Selling Unit
Box of 500
Product name
Screw 10-16 x 16 Hex Head
SKU
21906
Use
Fix top hat to steel stud frame
Selling Unit
Box of 1000
Product name
Screw 14-10 x 150 Hexhead Type17
SKU
44174
Use
Screw panels together at corners
Selling Unit
Box of 250
Product name
Screw 12-11 x 35 Hex Head Type17
SKU
106882
Use
Fix top hat to timber frame
Selling Unit
Box of 500
Product name
Screw 14-10 x 90 Hex Head Type17
SKU
125747
Use
Externally fix PowerPanel to top hat
Selling Unit
Box of 250
Top Hats & Battens
Product name
Perforated Top Hat 24mm x 4.8m x 0.42 BMT
SKU
21909
Use
Attaching PowerPanel to frame
Selling Unit
Each
Product name
Top Hat 75mm x 4.8m x 0.75mm BMT
SKU
24092
Use
Attaching PowerPanel to frame
Selling Unit
Each
Product name
Perforated Top Hat 35mm x4.8m x0.55 BMT
SKU
105536
Use
Attaching PowerPanel to frame
Selling Unit
Each
Product name
Perforated Top Hat 45mm x4.8m x0.42 BMT
SKU
168890
Use
Attaching PowerPanel to frame
Selling Unit
Each
Downloads
Find a...
We have a network of suppliers ready to help you get your project up and running.
