PowerPanel50

Intertenancy / Dual Zero Boundary walls for low rise multi-residential buildings and external walls for houses and low rise multi-residential buildings

Hebel PowerPanel50 panels are 50mm thick, 600mm wide and come in lengths of 2.55m, 2.7m, 2.85m & 3m

Square edge profile

Steel mesh, coated with an anti-corrosion protection layer for maximum strength and durability

The patented Hebel PowerPanel50 panel is a great choice for intertenancy/party walls, dual zero boundary walls and external walls on low-rise multi-residential projects, and external walls on houses.
Fast and easy to install, Hebel PowerPanel50 is available in 2400mm, 2550mm, 2700mm, 2850mm and 3000mm lengths, each panel is 50mm thick and contains steel reinforcement for added strength with an anti-corrosion layer on the steel for maximum durability.
Hebel PowerPanel50 is developed, tested and manufactured here in Australia, and warranted by CSR.

Benefits

Maximised floorspace

Solid & secure

Fast construction times

Risk minimisation

Easy fire-rating compliance

Easy acoustic compliance

Superior insulation qualities

High sustainability values

Proven

Innovation in building

Product Sizes

PowerPanel50 for Low Rise Multi-Residential Intertenancy / Party Walls and Dual Zero Boundary Walls

PowerPanel50 – Standard Range 50mm

  • 2400x600x50mm SQ1M0
  • 2700x600x50mm SQ1M0
  • 3000x600x50mm SQ1M0
SQ = Square Edge, 1M = Single Mesh, 0 = No Bevel
PowerPanel50 for Houses and Low Rise Multi-Residential External Walls

PowerPanel50 – Standard Range 50mm

  • 2400x600x50mm SQ1M0
  • 2550x600x50mm SQ1M0
  • 2700x600x50mm SQ1M0
  • 2850x600x50mm SQ1M0
  • 3000x600x50mm SQ1M0
SQ = Square Edge, 1M = Single Mesh, 0 = No Bevel

Product Accessories

Adhesives and Coatings
21933 - Hebel Adhesive
Width Code Description Main Application Selling Unit
21933 Hebel Adhesive All systems 20kg Bag
PowerPanel50 Intertenancy / Party Walls accessories

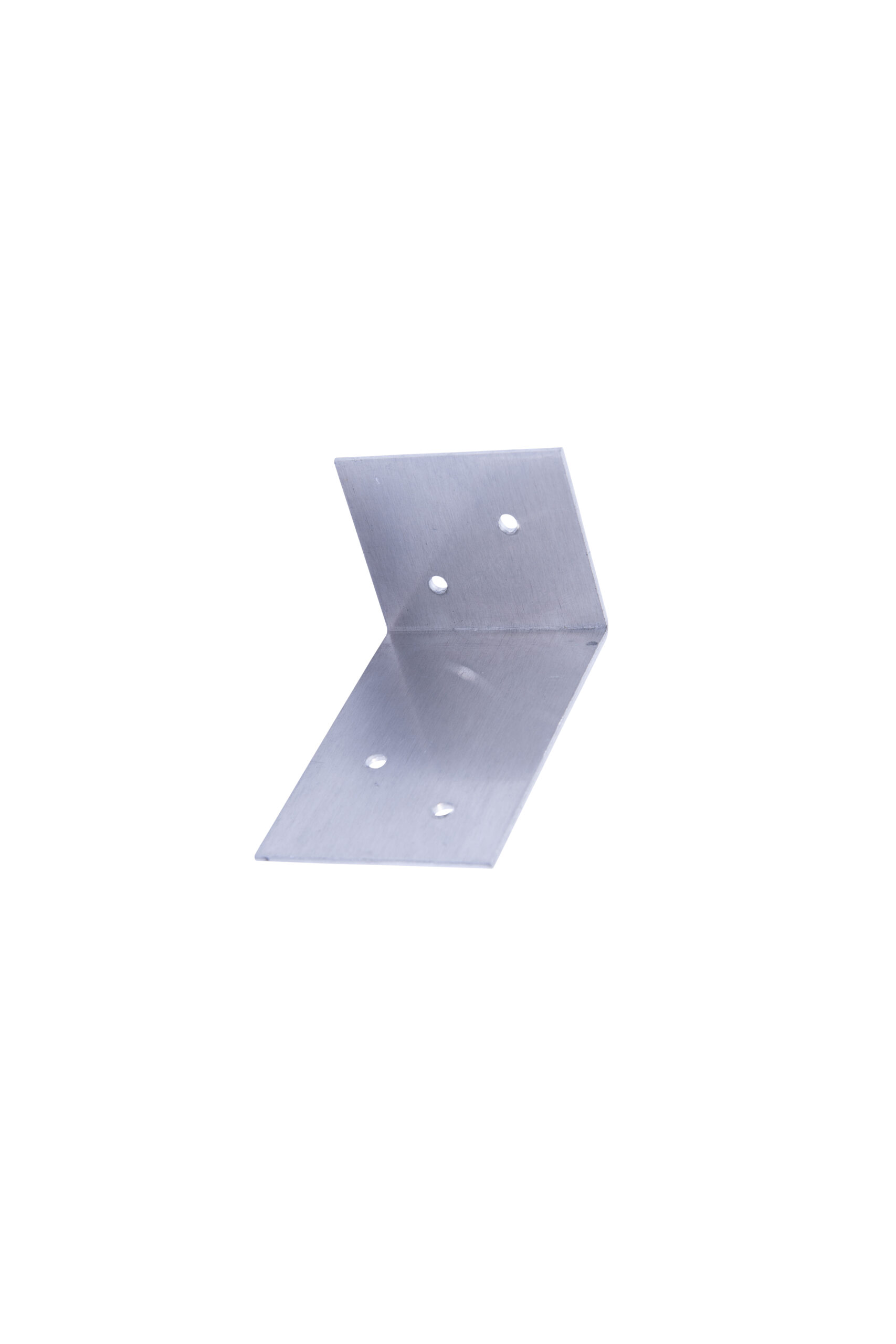

40900 - Aluminium Party Wall Bracket

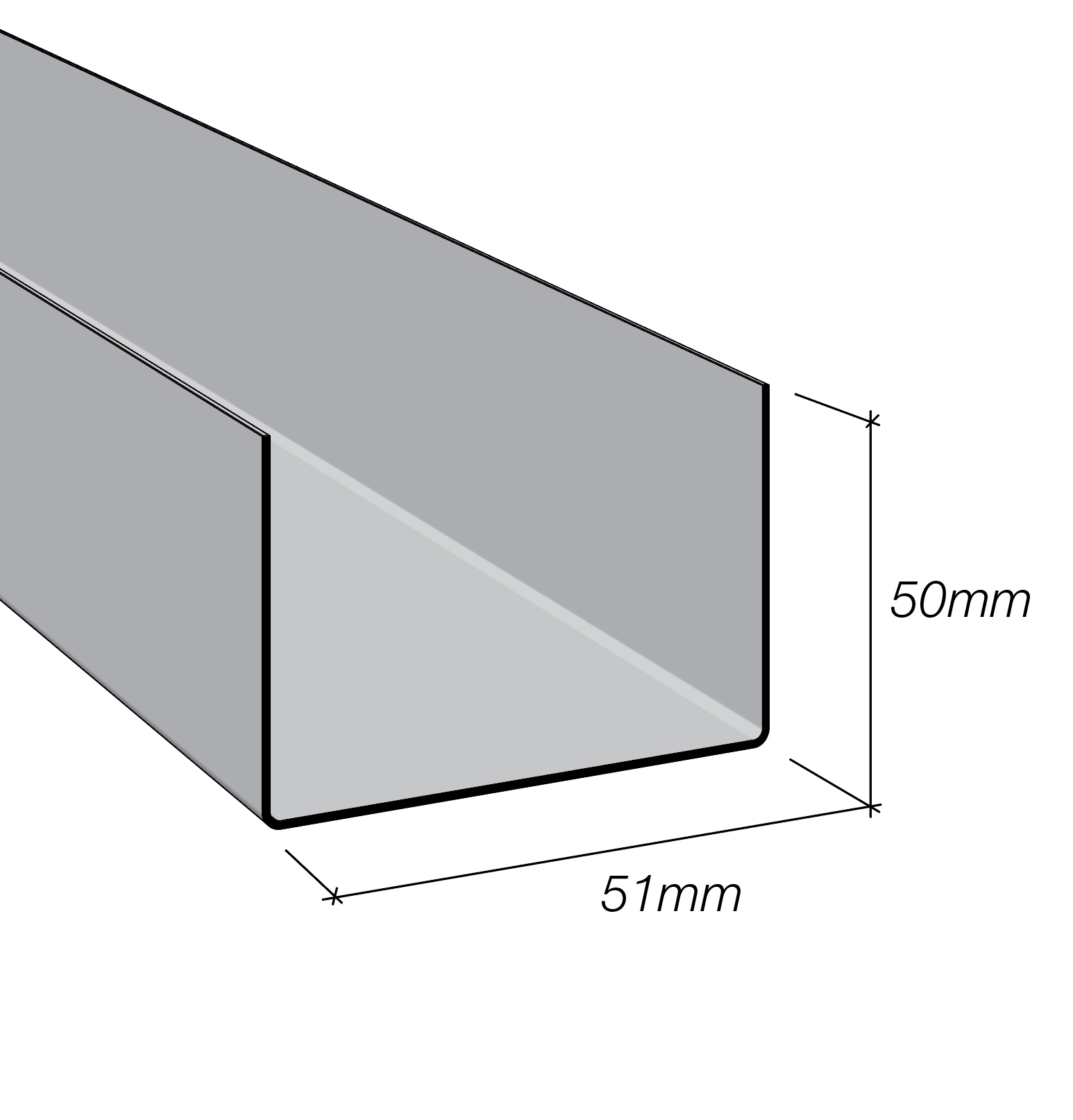

176867 - Deflection Head 51mm x 3m x 0.7mm BMT
182233 - Fireseal Damper Strip x 15/pack 750mm x 225mm x 13mm
193379 - Fireseal Party Wall Sealer 4000mm x 300mm x 50mm
21906 - Screw 10-16 x 16 Hex Head Teks
106883 - Screw 12-11 x 35 Hex Head Type 17
21900 - Screw 14-10 x 65 Hex Head Type 17
21933 - Hebel Adhesive
21949 - Hebel Patch
21935 - Hebel Mortar
25594 - Hebel Anti - Corrosion Paint 500ml
111161 - Hebel Base Sealer 5L
122116 - CSR FireSeal - Fire & Acoustic Sealant
Width Code Description Main Application Selling Unit
40900 Aluminium Party Wall Bracket Attach PowerPanel50 to int. frame Each
176867 Deflection Head 51mm x 3m x 0.7mm BMT 50mm Party Wall - Residential Connection Each
182233 Fireseal Damper Strip x 15/pack 750mm x 225mm x 13mm Horizontal Control Joint Pack of 15
193379 Fireseal Party Wall Sealer 4000mm x 300mm x 50mm Used as a sealer between panel and roof/wall cavities Pack of 2
21906 Screw 10-16 x 16 Hex Head Teks Fix TopHat to steel stud frame Box of 1000
106883 Screw 12-11 x 35 Hex Head Type 17 Fix TopHat to timber frame Box of 100
21900 Screw 14-10 x 65 Hex Head Type 17 Int. fix PowerPanel to TopHat Box of 500
21933 Hebel Adhesive All systems 20kg Bag
21949 Hebel Patch All systems 10kg Bag
21935 Hebel Mortar All systems 20kg Bag
25594 Hebel Anti - Corrosion Paint 500ml Used to coat exposed reo Each
111161 Hebel Base Sealer 5L Waterproofing for residential Each
122116 CSR FireSeal - Fire & Acoustic Sealant All systems Box of 12
PowerPanel50 Dual Zero Boundary Walls accessories
21909 - Perforated TopHat 24mm x 4.8m x 0.42mm BMT
105536 - Perforated TopHat 35mm x 4.8m x 0.55mm BMT

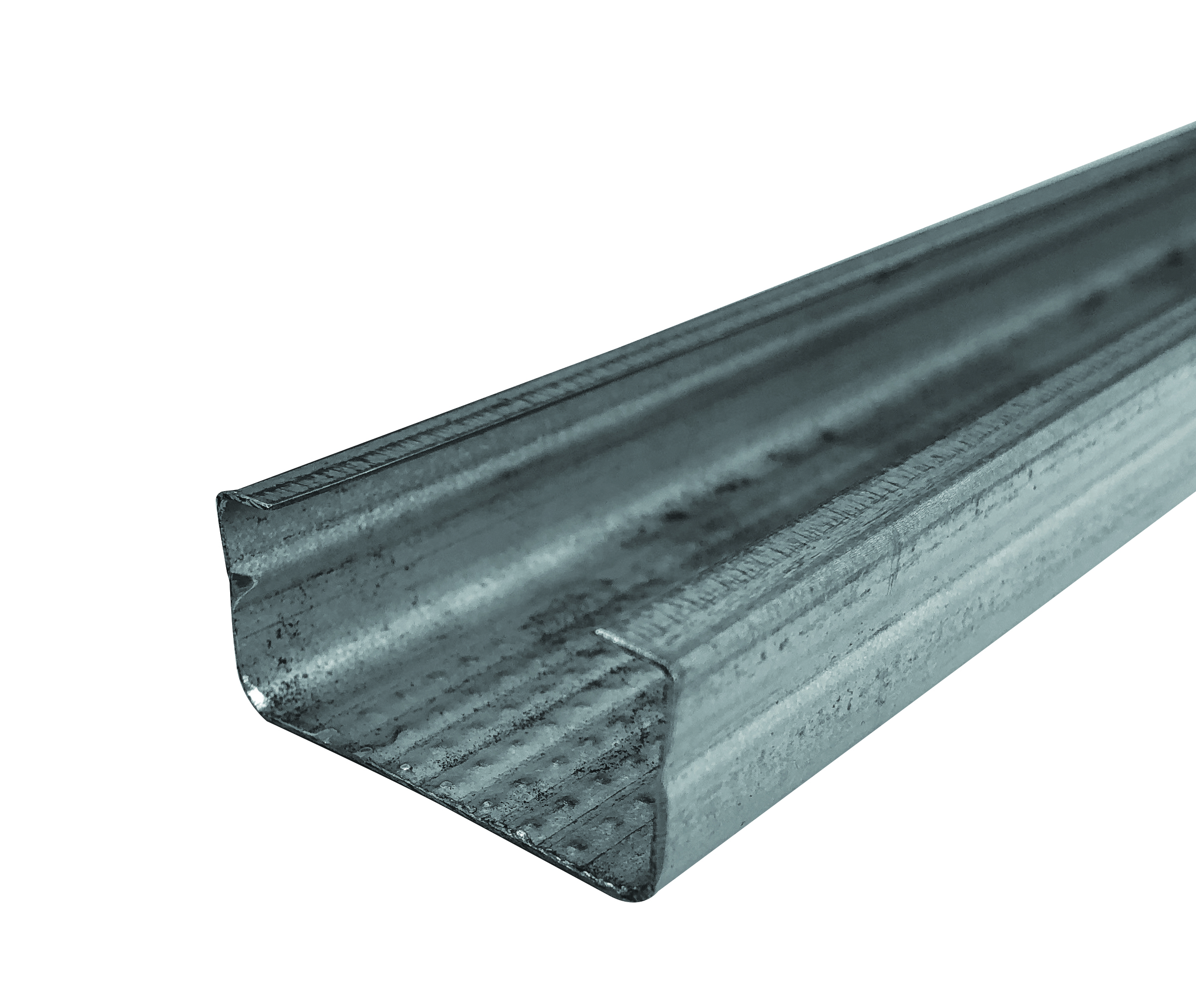

192101 - RONDO 301 Batten 16mm x 4.8m x 0.42BMT

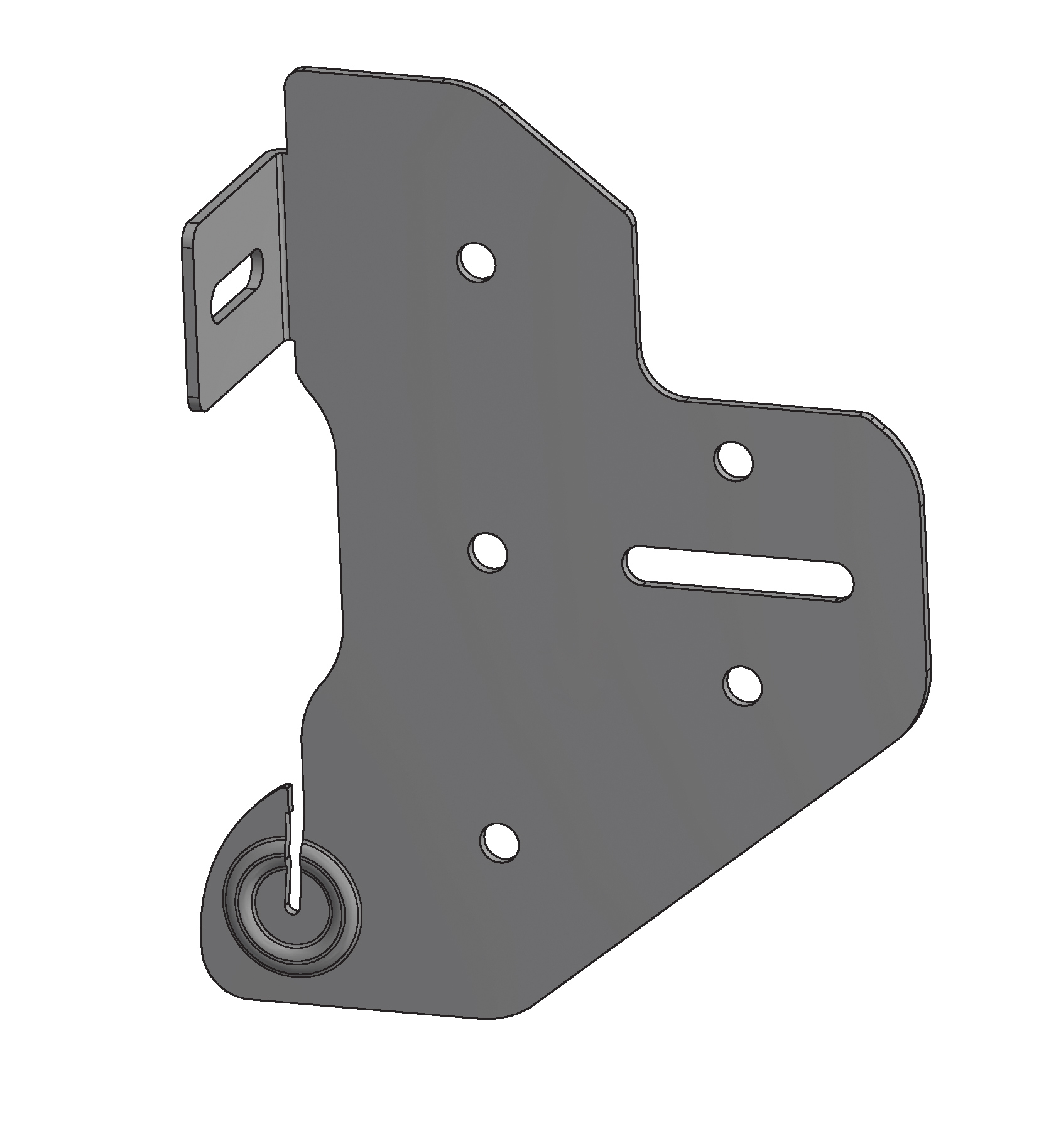

168120 - Hebel Direct Fix Clip - Dual Zero Boundary wall

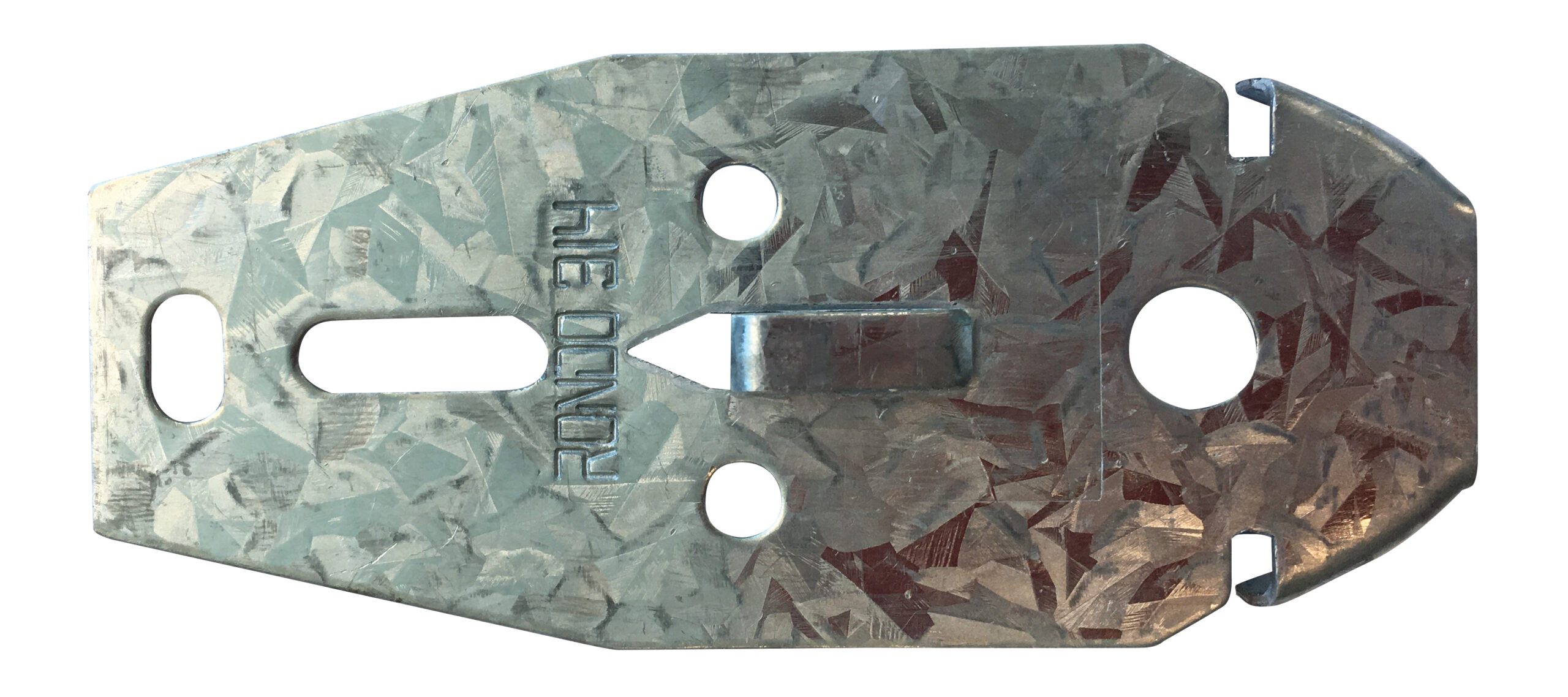

193703 - RONDO Clip 314
21906 - Screw 10-16 x 16 Hex Head Teks
106883 - Screw 12-11 x 35 Hex Head Type 17
21900 - Screw 14-10 x 65mm Hex Head Type 17
21949 - Hebel Patch
21935 - Hebel Mortar
25594 - Hebel Anti - Corrosion Paint 500ml
111161 - Hebel Base Sealer 5L
122116 - CSR FireSeal - Fire & Acoustic Sealant
Width Code Description Main Application Selling Unit
21909 Perforated TopHat 24mm x 4.8m x 0.42mm BMT Attaching PowerPanel50 to frame Each
105536 Perforated TopHat 35mm x 4.8m x 0.55mm BMT Attaching PowerPanel50 to frame Each
192101 RONDO 301 Batten 16mm x 4.8m x 0.42BMT Fixing PowerPanel50 to the structural support framing using the RONDO 314 Direct Fix Clip Each
168120 Hebel Direct Fix Clip - Dual Zero Boundary wall For attaching 24mm or 35mm top hats to stud frame - Dual Zero Boundary Wall Box 200
193703 RONDO Clip 314 For attaching Rondo 301 16mm batten to structural stud frame - Dual Zero Boundary Wall Box 100
21906 Screw 10-16 x 16 Hex Head Teks Fix TopHat to steel stud frame Box of 1000
106883 Screw 12-11 x 35 Hex Head Type 17 Fix TopHat to timber frame Box of 100
21900 Screw 14-10 x 65mm Hex Head Type 17 Int. fix PowerPanel to TopHat Box of 500
21949 Hebel Patch All systems 10kg Bag
21935 Hebel Mortar All systems 20kg Bag
25594 Hebel Anti - Corrosion Paint 500ml Used to coat exposed reo Each
111161 Hebel Base Sealer 5L Waterproofing for residential Each
122116 CSR FireSeal - Fire & Acoustic Sealant All systems Box of 12
PowerPanel50 External Walls accessories
21906 - Screw 10-16 x 16mm Hex Head Teks
106883 - Screw 12-11 x 35mm Hex Head Type 17
163902 - Screw 14-10 x 65mm Bugle Head Type 17
21909 - Perforated TopHat 24mm x 4.8m x 0.42mm BMT
105536 - Perforated TopHat 35mm x 4.8m x 0.55mm BMT
21933 - Hebel Adhesive
21949 - Hebel Patch
25594 - Hebel Anti - Corrosion Paint 500ml
Width Code Description Main Application Selling Unit
21906 Screw 10-16 x 16mm Hex Head Teks Fix Top Hat to steel stud frame Box of 1000
106883 Screw 12-11 x 35mm Hex Head Type 17 Fix Top Hat to timber frame Box of 100
163902 Screw 14-10 x 65mm Bugle Head Type 17 Fixing PowerPanel50 to Top Hat from the outside of building Box of 500
21909 Perforated TopHat 24mm x 4.8m x 0.42mm BMT Attaching PowerPanel50 to frame Each
105536 Perforated TopHat 35mm x 4.8m x 0.55mm BMT Attaching PowerPanel50 to frame Each
21933 Hebel Adhesive All systems 20kg Bag
21949 Hebel Patch All systems 10kg Bag
25594 Hebel Anti - Corrosion Paint 500ml Used to coat exposed reo Each

Downloads


To learn more about our products and systems, search the categories below to view our range of Hebel guides, manuals, brochures and files.

View all Downloads
  • Design & Installation
  • Construction Details
  • Brochures
  • CAD Files
  • SDS Files
  • Codemark Certificates
  • Videos
SDS Files

Hebel Safety Guide - Silica fact sheet

DOWNLOAD EMAIL
Hebel Safety Guide - Silica fact sheet
Brochures

Fixing to Hebel Guide

DOWNLOAD EMAIL
Fixing to Hebel Guide
prev
Next

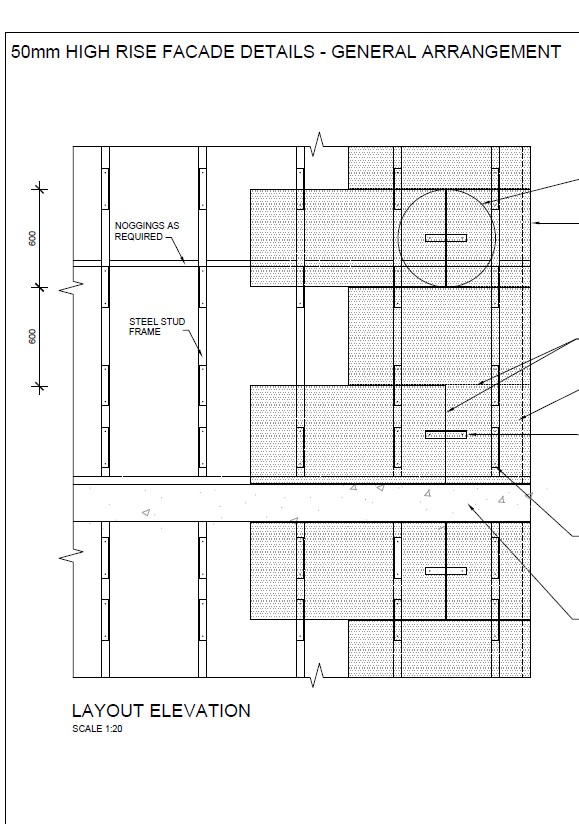

Hebel PowerPanel 50mm High Rise Facade Walls Horizontal Installation
