PowerPanel®
The Tempo
The Tempo
Hebel was used on this apartment façade to create a quiet and comfortable living environment for the occupants.
Central Park, Sydney
Central Park, Sydney
Hebel for intertenancy walls makes for easier construction, and improves the liveability benefits for residents for years to come.
Toga Apartments
Toga Apartments
Hebel ServicePanel provdes an efficient solution for multiple traes needing to install service cables in apartment buildings.
Hebel PowerPanel is a 75mm thick Autoclaved Aerated Concrete (AAC) panel which comes in two styles for different applications. Both panels are designed to deliver fast and National Construction Code (NCC) compliant construction for apartments and high-rise buildings.
PowerPanel Tongue and Groove is an AAC internal wall panel for apartments and commercial buildings that makes acoustic and fire compliance easy. It is highly effective for corridors walls, intertenancy walls, shaft walls, and service wall systems.
PowerPanel Square Edge is a high-performance non-combustible cladding for high rise building facades and narrow balcony blade walls.
Performance and benefits
Proven & compliant
Backed by CSR, non-combustible, compliant systems that are easy to inspect and approve.
Strong & solid
Made with single mesh or caged steel reinforcment with an anti-corrosion coating.
Energy efficient
Hebel panels thermal properties help keep your building cool in summer and warm in winter.
Sustainable
Made from readily available raw materials, available in custom sizes, reducing build time and waste on site.
Applications
Technical information
The strong AAC panels are reinforced with a single steel mesh or multi-layer mesh steel cage. They are lighter than bricks, and up to 75% lighter than precast concrete. They are available in common wall heights up to 4200m. To save time, reduce waste, and reduce cost they can be made-to-length or made-to-order up to 4800m.
PowerPanel Tongue & Groove can be installed vertically or horizontally. For corridor walls and intertenancy walls the panels are installed vertically. For service and shaft walls the panels are installed horizontally, which can be done to a height of 30 metres.
Hebel PowerPanels have Fire Resistance Level (FRL) ratings of -/90/90 minutes for walls up to 3.3 metres with single mesh panels. Or an FRL of -/120/120 minutes for walls up to 4.65 metres with PowerPanel caged.

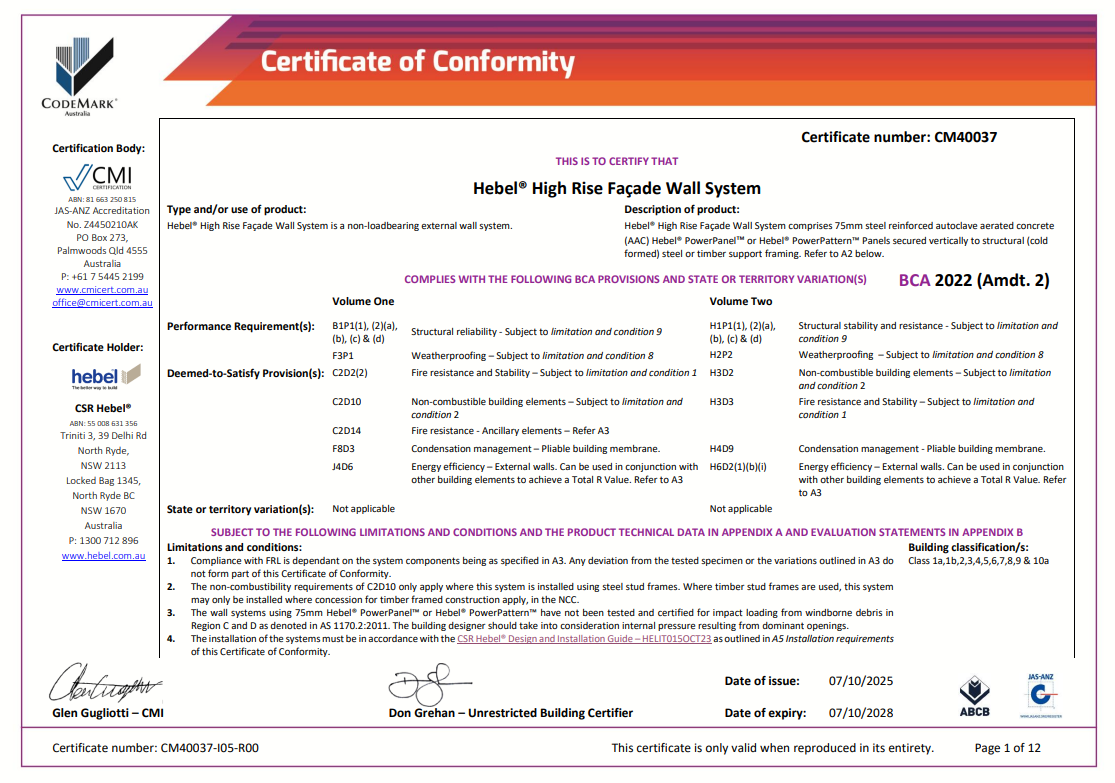

PowerPanel High Rise - Apartment External Facades
PowerPanel High Rise - Apartment Internal Walls

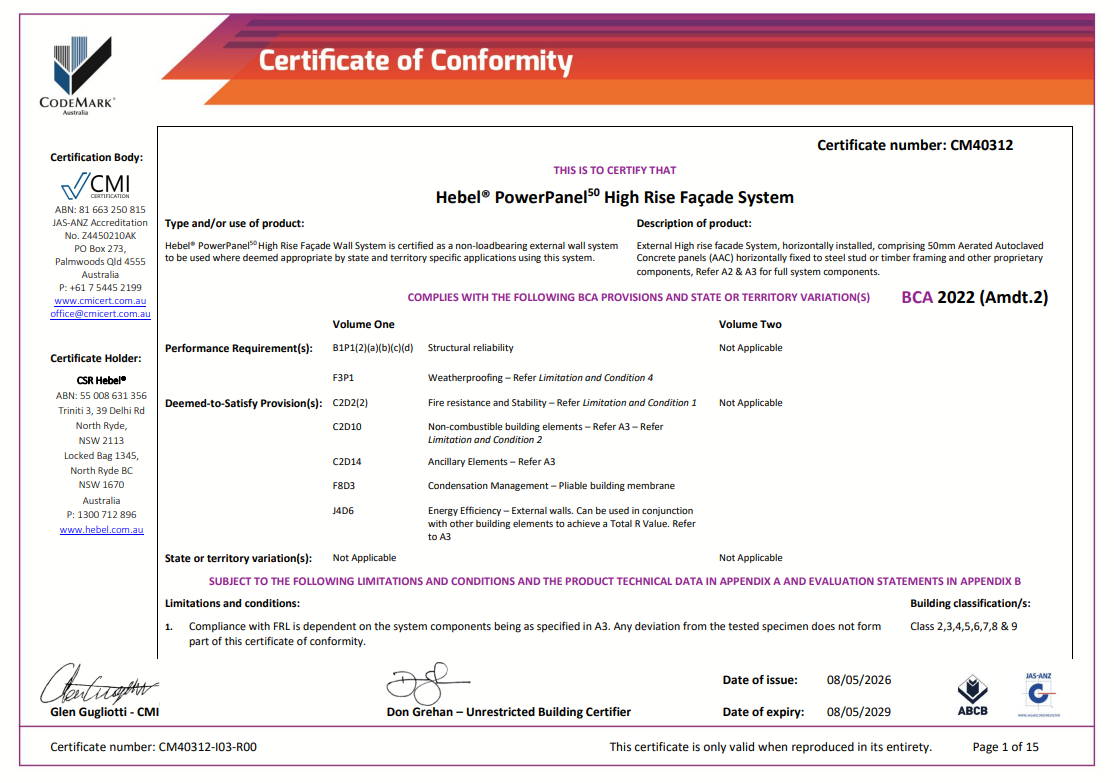

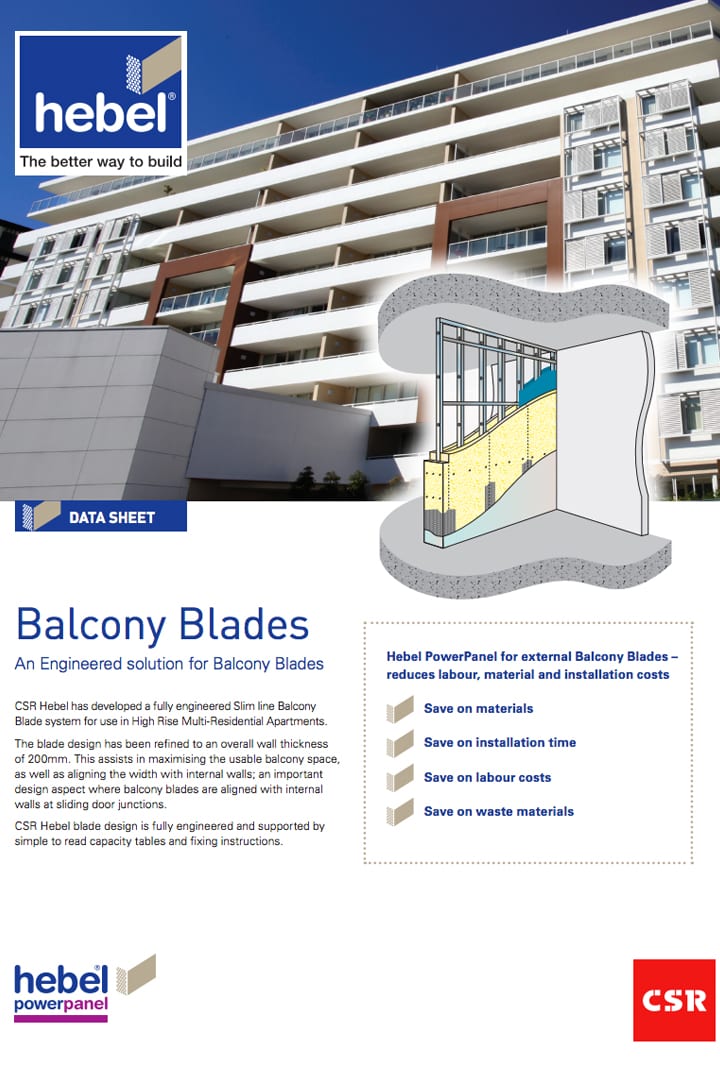

PowerPanel High Rise Facades & Balcony Blades
PowerPanel Intertenancy, Corridor, Shaft & Service Wall Systems
PowerPanel Residential & Multi-Residential - External & Internal Walls
| Product Code | Web Description | Width (mm) | Length (mm) | Thickness (mm) | Mesh Design | Weight Per Pack | Units Per Pack |
|---|---|---|---|---|---|---|---|
| 22077 | PowerPanel 2800mm | 600 | 2800 | 75 | Single | 938 | 10 |
| 26048 | PowerPanel 2850mm | 600 | 2850 | 75 | Single | 955 | 10 |
| 21969 | PowerPanel 3000mm | 600 | 3000 | 75 | Single | 1005 | 10 |
| 81462 | PowerPanel 3300mm | 600 | 3300 | 75 | Single | 1105 | 10 |
| MTL 24 | Made to Length PowerPanel | 600 | 1800 to 3300 | 75 | Single | - | 10 |
| 81463 | 600 | 3600 | 75 | Caged | 1206 | 10 | |
| 82055 | 600 | 4200 | 75 | Caged | 1407 | 10 | |
| MTO 02 | Made to Length PowerPanel | 300-600 | Up to 4800 | 75 | Caged | - | 10 |
| Product Code | Web Description | Width (mm) | Length (mm) | Thickness (mm) | Mesh Design | Weight Per Pack | Units Per Pack |
|---|---|---|---|---|---|---|---|
| 118260 | PowerPanel T&G 2700mm | 600 | 2700 | 75 | Caged | 905 | 10 |
| 118281 | PowerPanel T&G 2800mm | 600 | 2800 | 75 | Caged | 938 | 10 |
| 118282 | PowerPanel T&G 2850mm | 600 | 2850 | 75 | Caged | 955 | 10 |
| 123546 | PowerPanel T&G 2900mm | 600 | 2900 | 75 | Caged | 972 | 10 |
| 118283 | PowerPanel T&G 3000mm | 600 | 3000 | 75 | Caged | 1005 | 10 |
| 118284 | PowerPanel T&G 3300mm | 600 | 3300 | 75 | Caged | 1105 | 10 |
| MTL 24 | Made to Length PowerPanel | 600 | 1800 to 3300 | 75 | Caged | - | 10 |
| MTL 24 | Made to Length PowerPanel | 600 | 1800 to 3300 | 75 | Caged | - | 10 |
| 152225 | PowerPanel T&G 3600mm | 600 | 3600 | 75 | Caged | 1190 | 10 |
| 152227 | PowerPanel T&G 4200mm | 600 | 4200 | 75 | Caged | 1385 | 10 |
| MTO 02 | Made to Length PowerPanel | 300-600 | Up to 4800 | 75 | Caged | - | 10 |
| Product Code | Web Description | Width (mm) | Length (mm) | Thickness (mm) | Mesh Design | Weight Per Pack (kg) | Units Per Pack |
|---|---|---|---|---|---|---|---|
| 22077 | PowerPanel 2800mm | 600 | 2800 | 75 | Single | 938 | 10 |
| 26048 | PowerPanel 2850mm | 600 | 2850 | 75 | Single | 955 | 10 |
| 21969 | PowerPanel 3000mm | 600 | 3000 | 75 | Single | 1005 | 10 |
| 81462 | PowerPanel 3300mm | 600 | 3300 | 75 | Single | 1105 | 10 |
| MTL 24 | Made to Length PowerPanel | 600 | 1800 to 3300 | 75 | Single | - | 10 |
| 81463 | 600 | 3600 | 75 | Caged | 1206 | 10 | |
| 82055 | 600 | 4200 | 75 | Caged | 1407 | 10 | |
| MTO 02 | Made to Length PowerPanel | 300-600 | Up to 4800 | 75 | Caged | - | 10 |
| Product Code | Web Description | Width (mm) | Length (mm) | Thickness (mm) | Mesh Design | Weight Per Pack | Units Per Pack |
|---|---|---|---|---|---|---|---|
| 118260 | PowerPanel T&G 2700mm | 600 | 2700 | 75 | Caged | 905 | 10 |
| 118281 | PowerPanel T&G 2800mm | 600 | 2800 | 75 | Caged | 938 | 10 |
| 118282 | PowerPanel T&G 2850mm | 600 | 2850 | 75 | Caged | 955 | 10 |
| 123546 | PowerPanel T&G 2900mm | 600 | 2900 | 75 | Caged | 972 | 10 |
| 118283 | PowerPanel T&G 3000mm | 600 | 3000 | 75 | Caged | 1005 | 10 |
| 118284 | PowerPanel T&G 3300mm | 600 | 3300 | 75 | Caged | 1105 | 10 |
| MTL 24 | Made to Length PowerPanel | 600 | 1800 to 3300 | 75 | Caged | - | 10 |
| 152225 | PowerPanel T&G 3600mm | 600 | 3600 | 75 | Caged | 1190 | 10 |
| 152227 | PowerPanel T&G 4200mm | 600 | 4200 | 75 | Caged | 1385 | 10 |
| MTO 02 | Made to Length PowerPanel | 300-600 | Up to 4800 | 75 | Caged | - | 10 |
| Product Code | Web Description | Width (mm) | Length (mm) | Thickness (mm) | Mesh Design | Weight Per Pack | Units Per Pack |
|---|---|---|---|---|---|---|---|
| 118891 | PowerPanel 1800mm | 600 | 1800 | 75 | Single | 603 | 10 |
| 21965 | PowerPanel 2400mm | 600 | 2400 | 75 | Single | 804 | 10 |
Product accessories
Adhesives, Sealants & Coatings
Product name
Hebel Adhesive
SKU
21933
Use
All systems
Selling Unit
20kg Bag
Product name
Hebel Patch
SKU
21949
Use
All systems
Selling Unit
10kg Bag
Product name
Hebel Anti – Corrosion Paint
SKU
25594
Use
Used to coat exposed reo
Selling Unit
500mL Container
Product name
Hebel Base Sealer
SKU
111161
Use
Waterproofing for residential
Selling Unit
5L Pail
Product name
CSR Fireseal – Fire & Accoustic Sealant
SKU
122116
Use
All systems
Selling Unit
Box of 12
Product name
Fireseal Damperstrips 750mm x 225mm x 13mm
SKU
182233
Use
Horizontal control joint
Selling Unit
Each
Product name
Fireseal Party Wall Sealer 4000mm x 300mm x 50mm
SKU
193379
Use
Sealer used between panel to roof / wall cavities
Selling Unit
Pack of 2
Brackets, Angles & Trim
Product name
Slotted Base Angle 50mm x 50mm x 2.4m x 0.8mm BMT
SKU
21938
Use
Base support for internal high rise walls
Selling Unit
Each
Product name
Slotted Angle 75mm x 50mm x 2.7m x 1.15 BMT
SKU
21957
Use
Head support angle
Selling Unit
Each
Product name
Shelf Angle 150mm x100mm x3M x6mm BMT
SKU
126323
Use
Base support for PowerPanel
Selling Unit
Each
Hand Tools
Product name
Levelling Plane
SKU
21892
Use
Levelling Hebel
Selling Unit
Each
Product name
Powerpanel Lifters 16mm
SKU
21901
Use
Handling system for PowerPanel
Selling Unit
Pack of 2
Product name
Powerpanel Trolley 2.4-2.7 Panels
SKU
21903
Use
Handling system for PowerPanel
Selling Unit
Each
Product name
Powerpanel Trolley 2.9-3.35 Panels
SKU
21904
Use
Handling system for PowerPanel
Selling Unit
Each
Product name
Sanding Float
SKU
21912
Use
All systems
Selling Unit
Each
Product name
Trowel 75mm
SKU
21928
Use
All systems
Selling Unit
Each
Product name
Panel Scissor Lifter 75mm
SKU
107687
Use
Panel lifter
Selling Unit
Each
Product name
Panel Separator Kit
SKU
119426
Use
All systems
Selling Unit
Each
Product name
Installer Power Panel Trolley
SKU
130324
Use
Handling system for PowerPanel
Selling Unit
Each
Product name
2 Wheel Panel Mover
SKU
162645
Use
Handling system for PowerPanel
Selling Unit
Each
Screws
Product name
Screw 14-10 x 65 Hex Head
SKU
21900
Use
Internal fix of PowerPanel to top hat
Selling Unit
Box of 500
Product name
Screw 10-16 x 16 Hex Head
SKU
21906
Use
Fix top hat to steel stud frame
Selling Unit
Box of 1000
Product name
Screw 14-10 x 100mm Bugle Head
SKU
41235
Use
Fix PowerFloor to timber joists
Selling Unit
Box of 250
Product name
Screw 14-10 x 150 Hexhead Type17
SKU
44174
Use
Screw panels together at corners
Selling Unit
Box of 250
Top Hats & Battens
Product name
Perforated Top Hat 24mm x 4.8m x 0.42 BMT
SKU
21909
Use
Attaching PowerPanel to frame
Selling Unit
Each
Product name
Perforated Top Hat 35mm x4.8m x0.55 BMT
SKU
105536
Use
Attaching PowerPanel to frame
Selling Unit
Each
Product name
Top Hat Commercial 50mm x 4.8m
SKU
141233
Use
Attaching PowerPanel to frame
Selling Unit
Each
Product name
Perforated Top Hat 45mm x4.8m x0.42 BMT
SKU
168890
Use
Attaching PowerPanel to frame
Selling Unit
Each
